SSD MSI Spatium M480 2TB HeatSink PCIe 4.0 M2 - 2TB SSD MSI Spatium NVMe Gen 4

Detail SSD MSI Spatium M480 2TB HeatSink PCIe 4.0 M2 - 2TB SSD MSI Spatium NVMe Gen 4

SPATIUM M480 PCIe 4.0 NVMe M.2 HS

PCIe Gen4x4 interface and complies with the NVMe 1.4 standard
Sequential Read speeds up to 7000MB/s and Write speeds up to 6800MB/s
Up to 1400 TBW
Built-in data security and error-correction capabilities
500GB to 2TB capacities in M.2 2280 form factor
5-Year Warranty

Model Name SPATIUM M480 PCIe 4.0 NVMe M.2 HS
Capacity 2TB
Controller PHISON E18
Flash Memory 3D NAND
DRAM Cache 2GB DDR4
Form Factor M.2 2280
Interface PCIe Gen4x4, NVMe 1.4
Compatibility PCIe Gen4 / Gen3 / Gen2 / Gen1
Dimensions 80.00mm (L) x 22.00mm (W) x 2.15mm (H) (w/o heatsink)
80.40mm (L) x 23.00mm (W) x 20.40mm (H) (w/ heatsink)
Sequential Read up to (MB/s) 7000
Sequential Write up to (MB/s) 6800
Random Read 4KB up to (IOPS) 650,000
Random Write 4KB up to (IOPS) 700,000
Maximum Operating Power (W) 8.2
Idle Power PS3 (mW) 22
Low Power L1.2 (mW) 3
Operating Temperatures 0°C – 70°C
Storage Temperatures -40°C – 85°C
Terabytes Written (TBW) 1400
Mean Time Between Failure (MTBF) Up to 1,600,000 Hours
Limited Warranty 5 Years, or the coverage for the maximum TBW as stated, whichever comes first.
Advanced Features TRIM (Performance Optimization, OS support required)
SMART (Self-Monitoring, Analysis and Reporting Technology)
LDPC (Low Density Parity Check) ECC Algorithm
End to End Data Path Protection
APST (Autonomous Power State Transition)
AES256/TCG OPAL2.0/Pyrite (Encryption, Data Security)

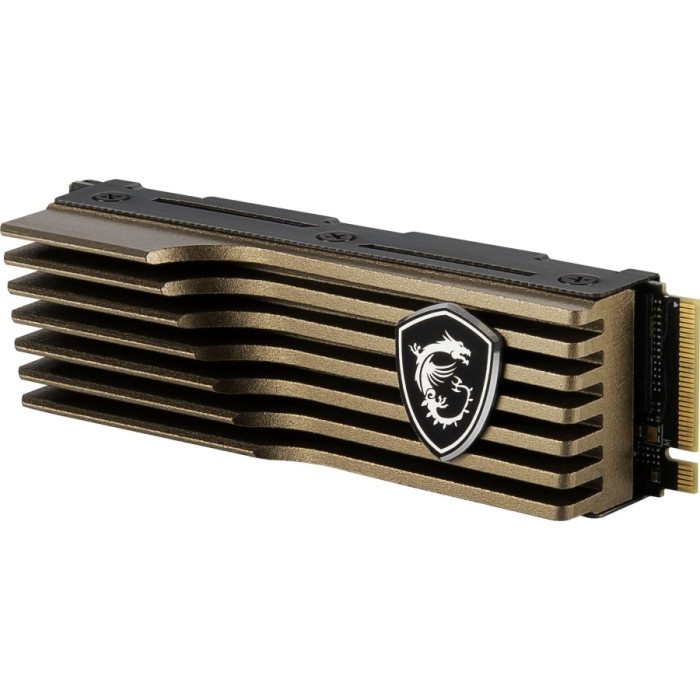

Gambar produk
