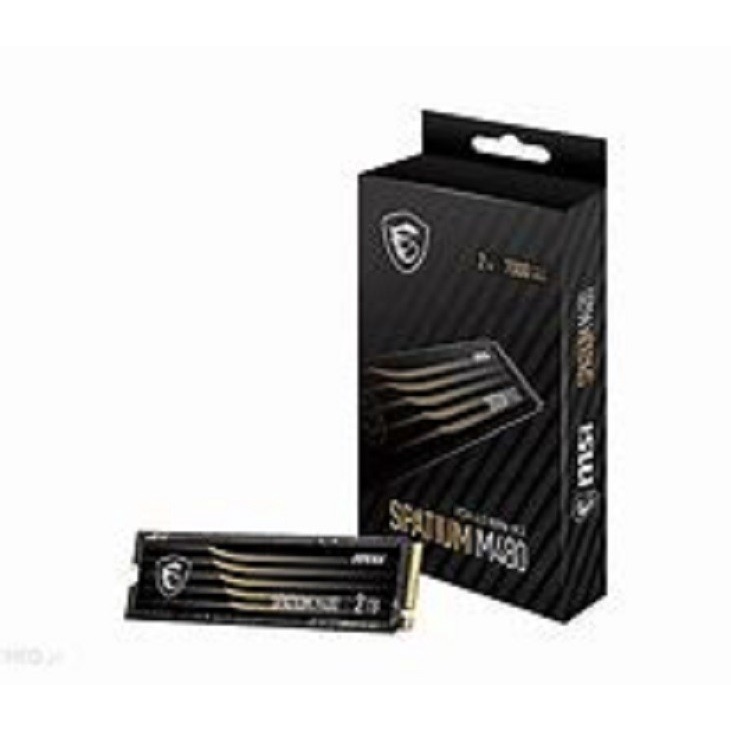

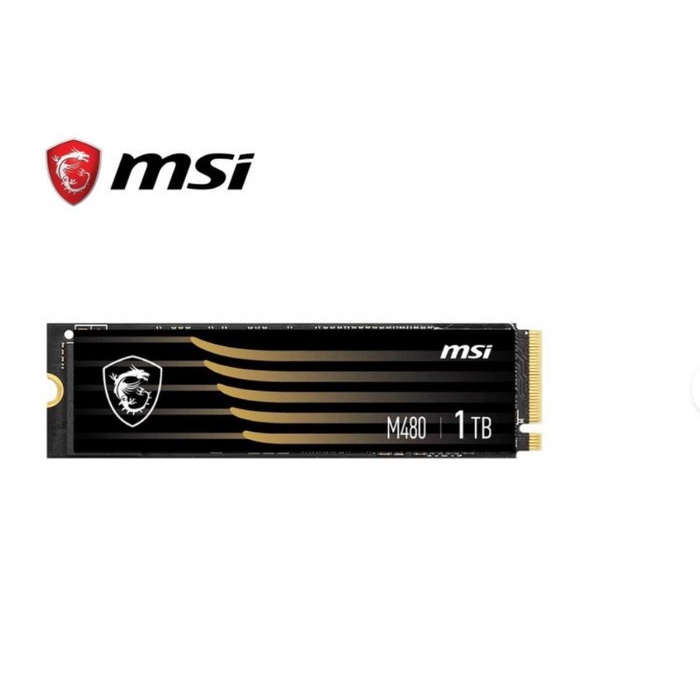

SSD MSI Spatium M480 1TB PCIe 4.0 M2 - 1TB SSD MSI Spatium M480

Detail SSD MSI Spatium M480 1TB PCIe 4.0 M2 - 1TB SSD MSI Spatium M480

Capacity 1TB / 2TB
Controller PHISON E18
Flash Memory 3D NAND
DRAM Cache 1GB DDR4 / 2GB DDR4
Form Factor M.2 2280
Interface PCIe Gen4x4, NVMe 1.4
Compatibility PCIe Gen4 / Gen3 / Gen2 / Gen1
Dimensions 80.00mm (L) x 22.00mm (W) x 2.15mm (H)
Sequential Read up to (MB/s) 7000
Sequential Write up to (MB/s) 5500/6800
Random Read 4KB up to (IOPS) 350,000 /650,000
Random Write 4KB up to (IOPS) 700,000
Maximum Operating Power (W) 6.6 8.2
Idle Power PS3 (mW) 14 22
Low Power L1.2 (mW) 3
Operating Temperatures 0°C – 70°C
Storage Temperatures -40°C – 85°C
Terabytes Written (TBW) 700 1400
Mean Time Between Failure (MTBF) Up to 1,600,000 Hours
Limited Warranty 5 Years, or the coverage for the maximum TBW as stated, whichever comes first.
Advanced Features TRIM (Performance Optimization, OS support required)
SMART (Self-Monitoring, Analysis and Reporting Technology)
LDPC (Low Density Parity Check) ECC Algorithm
End to End Data Path Protection
APST (Autonomous Power State Transition)
AES256/TCG OPAL2.0/Pyrite (Encryption, Data Security)
