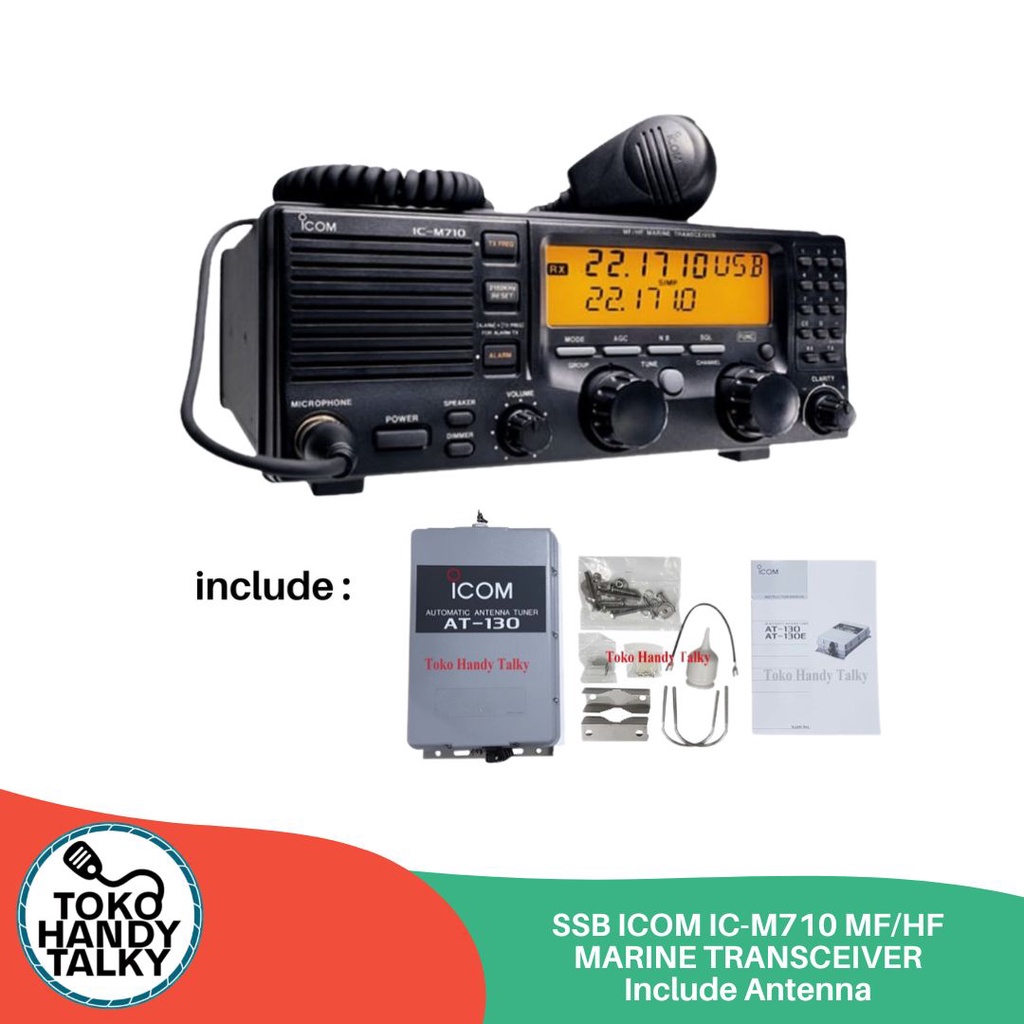

SSB ICOM IC-M710 MF/HF MARINE TRANSCEIVER PAKET SIAP PAKAI

Detail SSB ICOM IC-M710 MF/HF MARINE TRANSCEIVER PAKET SIAP PAKAI

Nama Produk : SSB ICOM IC-M710 MF/HF MARINE TRANSCEIVER
Include ICOM AUTOMATIC ANTENNA TUNER AT-130 HF
Garansi Resmi : 1 Tahun

Spesifikasi IC-M710
Frequency coverage :
Recieve 0.500 - 29.999 MHz
Transmit 1.6 - 27.5 MHz
Mode (varies with country) :
J3E (USB), H3E, R3E, J2B (AFSK), F1B (FSK) R3E, A1A (CW)
Number of channels :
1136 (max.)
(160 programmable; 242 ITU SSB duplex; 72 ITU SSB simplex; 662 ITU FSK duplex)
Antenna impedance: 50Ω (nominal)
Power supply requirement: 13.6 V DC ±15% (negative and floating grounds are available depending on version)
Max. current drain (at 13.6 V DC) :
Transmit at max power 30 A
Receive at max. AF output 2.5 A (negative ground type)
Receive at max. AF output 3.0 A (floating ground type)
Dimensions (proj. not incl.): 291.4 × 116.4 × 315 mm
Weight :
7.9 kg (17 lb 7 oz; negative ground type)
8.1 kg (17 lb 14 oz; floating ground type)

Transmitter
Output power
U.S.A. version: 150, 60, 20 W PEP (selectable)
(60, 20 W only for 25 MHz band)
Europe version: 150, 60 W PEP (selectable)
(60 W only for 25 MHz band)

Receiver
Sensitivity
J3E, R3E, J2B, F1B, A1A (for 12 dB SINAD):
0.5 μV (1.8–29.9999 MHz)
1 μV (1.6–1.7999 MHz)
6.3 μV (0.5–1.5999 MHz)
H3E (for 10 dB S/N):
6.3 μV (1.6–1.7999 MHz)
32 μV (0.5–1.5999 MHz)

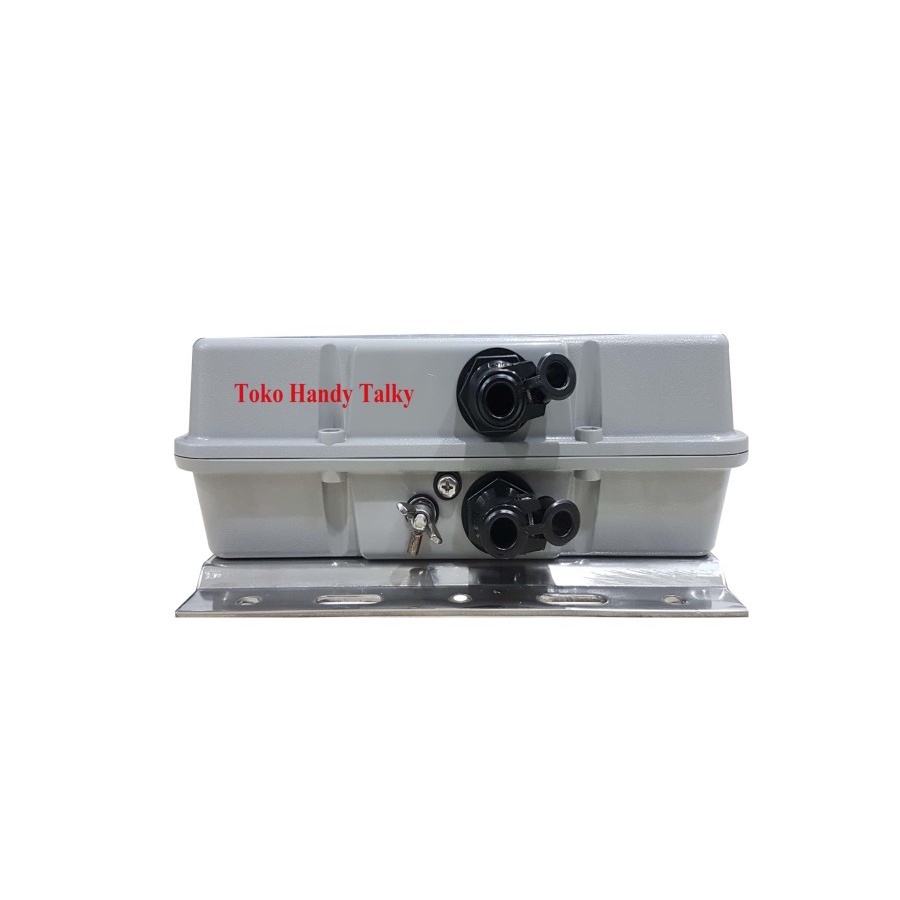

ICOM AUTOMATIC ANTENNA TUNER AT-130 HF
Spesifikasi:
- Dimensi: 230 (W) x 340 (H) x 80 (D) mm; 9.1 (W) x 13,4 (H) x 3.1 (D) di (proyeksi tidak termasuk)
- Berat: 2,7 kg; 6,0 lb
- Kisaran Suhu yang Dapat Digunakan: -30C ~ + 60C
- Tegangan Terperingkat: 13,6 V DC +/- 15% (ground negatif) (disuplai dari transceiver laut Icom HF)
- Tiriskan Saat Ini (pada 13,6 V DC): 2 A
- Cakupan Frekuensi: 1,6 ~ 30 MHz (dengan panjang antena 7 m (23 kaki) atau lebih lama)
- Masukan Impedansi: 50 ohm (tidak seimbang)
- Maks. Daya Input: 150 W (PEP)
- Daya Input Selama Tuning: 10 W
- Waktu Tuning Otomatis: 1,5 detik. (kembali untuk frekuensi yang diingat), biasanya 2 ~ 3 detik. (ketika band operasi telah diubah)
