Ss49e Oh49e Hall Element Linear Sensor Ic

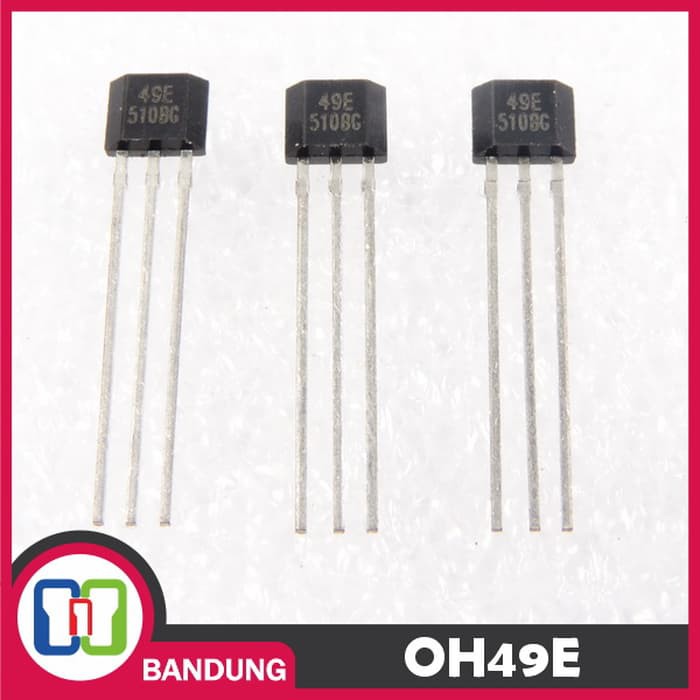

Detail Ss49e Oh49e Hall Element Linear Sensor Ic

P/N : SEN-0016

==========

OH49E mampu mendeteksi medan magnet baik kutub selatan atau kutub utara. Ketika dihadapkan dengan kutub selatan (+1200GS), output akan HIGH, sebaliknya, ketika mendeteksi kutub utara (-1200GS), output akan LOW. Jika tidak mendeteksi apa apa, maka output akan ada di level 2.5V.

Aplikasinya macem-macem gan, bisa dipake sebagai counter, motor control, sensor posisi, water level dll.

Silahkan di ORDER gan !!! :D

General Description
The OH49E is a small, versatile linear Hall-effect device that is operated by the magnetic field from a permanent magnet or an electromagnet. The output voltage is set by the supply voltage and varies in proportion to the strength of the magnetic field.

The integrated circuitry features low noise output, which makes it unnecessary to use external filtering. It also includes precision resistors to provide increased temperature stability and accuracy. The operating temperature range of these linear Hall sensors is -20 to100, appropriate for commercial, consumer and industrial applications.

Specs
- Pinout : VCC = 1 ; GND = 2 ; VOUT = 3
- Supply Voltage VCC : 2.3 - 6 V ; typical 5V
- Supply Current Icc : 4.2 mA
- Quiescent Output Voltage VNULL (@ B=0GS) : 2.35 - 2.65 V ; typical 2.5V
- Output Voltage Sensitivity S (B= 100GS) : 1.8 - 2.2 mV/GS ; typical 2mV/GS
- Output Voltage (high) VH (B=1200GS) : 4.2V
- Output Voltage(low) VL B=-1200GS : 0.8V
- Output Resistor RO : 40-100
- Output Noise (BW=10Hz to10kHz) : 90V

Features
- Miniature Construction
- Power Consumption of 4.2mA at VCC=5V for Energy Efficiency
- Single Current Sourcing Output
- Linear Output for Circuit Design Flexibility
- Low Noise Output Virtually Eliminates the Need for Filtering
- A Stable and Accurate Output
- Temperature Range of -20 to 100
