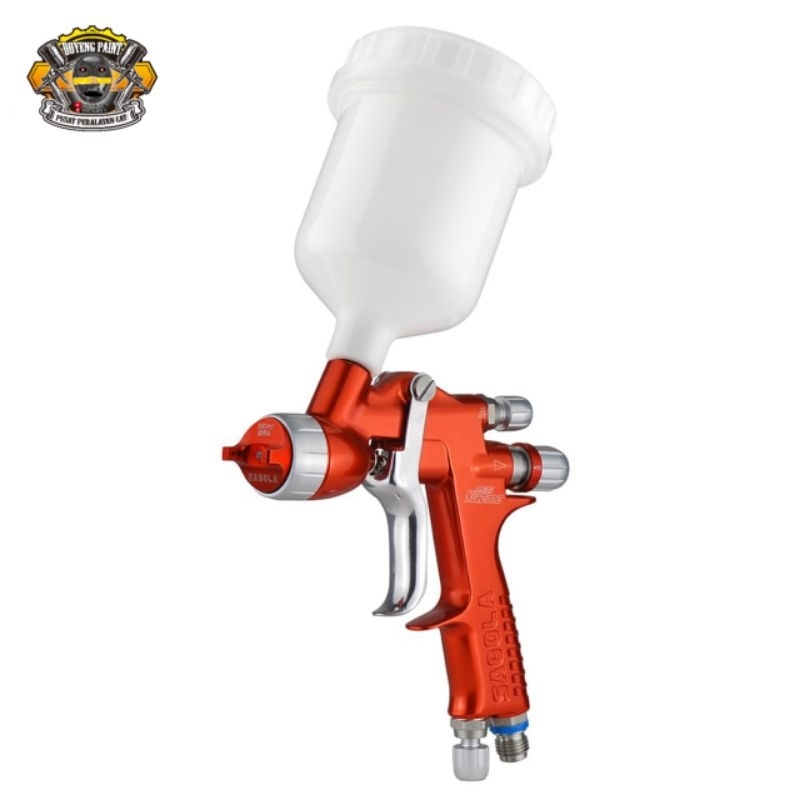

Spraygun Sagola Mini Xtreme gravity set - EPA Original

Detail Spraygun Sagola Mini Xtreme gravity set - EPA Original

Sagola Mini Xtreme Gravity - EPA aircap type (GUN+CUP SET) - Versi mini dari flagshipnya Sagola 4600 xtreme ini sangat cocok untuk kebutuhan touchup hingga ke finishing clearcoat super tinggi di bidang kecil ke sedang!

Control, this is the word that best defines the new SAGOLA Mini Xtreme; why run risks using the wrong tool when it does exist a tool that eases what is difficult?
It always assures the perfect paint-air relation in each situation.
It works with the right fan size avoiding the risk of overcharge and inappropriate drop-size.
It reduces mist, saves paint, and perfectly defines the work area.
Light, ergonomic, strong and adapted to the last technologies. Tested and developed on waterborne products.
The fans are designed to obtain the best drying time with the best finish, and always with minimum pressures between 0.5 - 1.0 bar.

Specifications:

>Weight without deposit: 350 g
> Dimensions with deposit: 26 x 16 x 7 cm
> Air inlet couplings: 1/4”
> Standard deposit capacity: 125 ml
> Incorporates 100-mesh paint filter
> Design pressure: 8 bar
> Maximum recommended inlet pressure (working pressure): 2 bar
> Maximum recommended application distance: 15 - 18 cm
> Maximum paint flow output (nozzle 1.0, viscosity16”):
Mini AQUA: 102 g/min
Mini HVLP: 92 g/min
Mini TECH: 116 g/min
> Air consumption (2 bar inlet):
Mini AQUA/EPA: 190 L/min
Mini HVLP: 325 L/min
Mini TECH: 52 L/min
> Fan size:
Mini AQUA: 235 - 250 mm.
Mini HVLP: 170 - 210 mm.
Mini TECH: 50 - 60 mm.
> Average sound pressure level: 81dB
> Materials in contact with product:
anodized aluminium, POM, INOX, Teflón and Nylon
