Splitter HDMI 1x8 support 2K & 4K

Detail Splitter HDMI 1x8 support 2K & 4K

Specifications:

HDMI resolution : 24/50/60fs/1080p/2160p/1080i/720p/576p/576i/480p/480i
Support video color format : 24bit/deep color 30bit,36bit, 48bit
Support audio format : DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD HD(HBR)
Max bandwidth: 340MHz
Max baud rate: 10.2Gbps
Input/Output TMDS signal: 0.5~1.5Volts p-p(TTL)
Input/Output DDC signal : 5Volts p-p (TTL)
Input cable distance: ≤15m HDMI AWG26
Output cable distance: ≤25m AWG26 HDMI standard cable
Max working current: 1400mA
Power adapter format.Input: : AC (50HZ, 60HZ) 100V-240V; Output: DC12V/3A
Operating Temperature range : (-15 to +55°C)
Operating Humidity range: 5 to 90%RH (No Condensation)

Features :
1. One HDMI input signal split to eight HDMI sink devices
2. Support Full HD, Full 3D
3. Support 4Kx2K resolution
4. Support CEC
5. Support deep color 30bit, 36bit, 48bit
6. Support Blue-Ray 24/50/60fs/HD-DVD/xvYCC
7. Digital audio format, as DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD/HD(HBR)
8. Support signal retiming
9. Support input up to 15metres AWG26 HDMI standard cable length,output up to 25metres AWG26 cable length
10. No loss of quality
11. Installs in minutes
12. Need DC12V/3A power supply

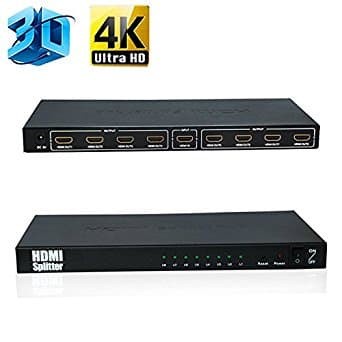

Gambar produk
