Splitter FO 1:8 SC/UPC | Splitter 1:8 Box Cassette Fiber Optic

Komputer & Aksesoris > Komponen Network > Komponen Network Lainnya > Splitter FO 1:8 SC/UPC | Splitter 1:8 Box Cassette Fiber Optic
  • Pengiriman Ekspres
  • Barang yang diperiksa
  • Bayar di tempat berlaku
  • Kualitas, Prestise
  • Pengembalian produk
  • Dukung pembuatan faktur

Detail Splitter FO 1:8 SC/UPC | Splitter 1:8 Box Cassette Fiber Optic

Deskripsi : Spitter 1:8 SC / UPC Fiber Optic Splitter 1:8 Cassette Box

"Tanpa Video Unboxing yang Real, Kami TIDAK Menerima Komplain"

Tidak garansi
Harga satuan ( Hanya dapat 1 Pcs )
Dimensi produk : 13x10x2.5 cm

Kami kirim sesuai gambar Splitter 1:8 SC/UPC Box

Optical Specifications
Parameter
Unit
Specification (P Grade)
Channel Number : 1X8
Operation Wavelength : 12601650 nm
Uniformity (Max.) : 1.0 dB
Insertion Loss (Max.) : 10.7 dB
Polarization Dependent Loss : 0.3 dB
Return Loss : 50 dB
Directivity : 50 dB
Operating Temperature : -40+85

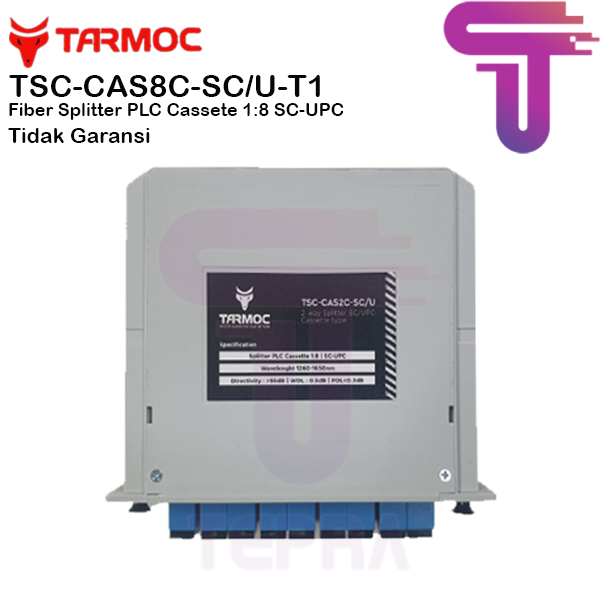

Product Number TSC-CAS8C-SC/U-T1
Type Cassette Splitter
Port 01:08
Port Type SC/UPC
Weight 104g
Size 130*100*25mm

Applications

CATV Systems
Optical Signal Distribution
Test Equipments
FTTX (FTTP, FTTH, FTTN, FTTC)
Passive Optical Networks (PON)
Local Area Networks (LAN)
