Splicer Tumtac V9 Mini-Jamin bagus

Detail Splicer Tumtac V9 Mini-Jamin bagus

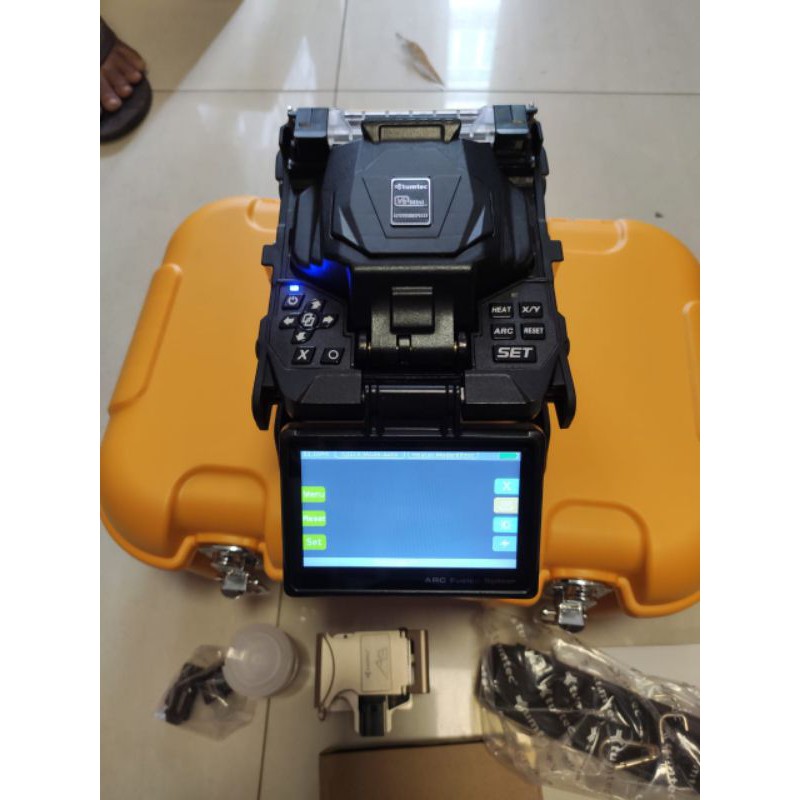

Splicer Tumtec V9
Main features:

Tumtec Fusion Splicer V9 is one of the most powerful and intelligent fusion splicing machines and adopts core alignment technology. It has industrial-level Quad-core CPU( Mainly 1.4 GHz ), featuring low power cost and high performances, equipping with 5” High-Resolution color LCD touch screen for easy operations, achieving industry’s magnification of 500X so that fiber conditions can be easily inspected with unaided eyes. Innovative technology brings unlimited convenience. With its excellent and stable performances, V9 has become one of the most reliable and effective fusion splicer in global market.

Specifications

Model : V9
Number of Fiber : Single
Applicable Fibers : SM(ITU-T G.652&G.657) / MM(ITU-T G.651) / DS(ITU-T G.653) / NZDS(ITU-T G.655)
Compatible Fiber / Cable : 0.25~3.0 mm / Indoor Cable (0.9mm/2.0mm/2.4mm)
Cleaved Length : Diameter: 0.125~1 mm / Cleave Length: 8~16 mm
Splicing Mode : Multiple splicing modes
Typical Splice Loss : 0.01-0.05db
Return Loss : >> 60 dB
Lighting : 1 Powerful White LED and Illuminated Keypads
Splicing Time : 6~8 seconds
Estimated Splice Loss : Available
Protection Sleeve Length : 20~60 mm
Heating Mode : Multi Heating Modes
Heating Time : Typical Heating Time: 30 sec
Records Storage : The latest 5000 Records
Tension Test : 1.5~2.0N
Operating Condition : Operating Altitude: 0~5000m above Sea Level, 0.95% Relative Humidity,
-10~50°C, Max Wind 15m/s
Storage Condition : 0~95% Relative Humidity, -40~80°C
Display : 90° Bi-directional View,
5.0" 800*480 Color High Resolution Display with Touch Screen
Fiber View & Magnification : X, Y, XY, X/Y : 500X Magnification
Power Supply : AC Input 100-240V, DC Input 12-15V
Battery Capacity : 5200 Mah , Typical above 340 times (Splice+Heat)
Operating Methods : Button / Touch Screen
Automatic Calibration : Automatic ARC Calibration According to Air Pressure and Temperature
Electrode Life : 3500
