Detail Splicer Signal Fire AI-9 Fiber Optik

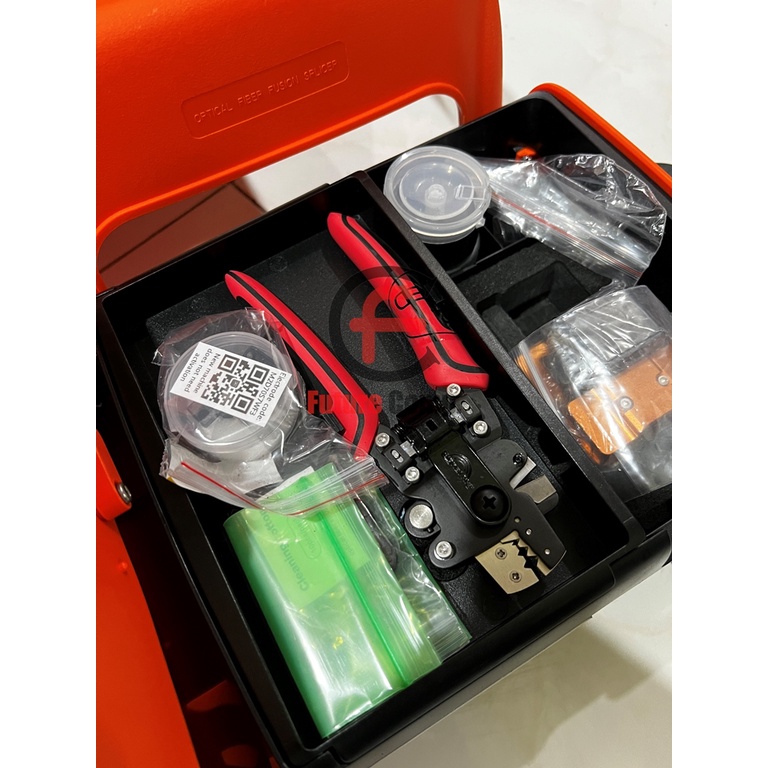

Kelengkapan:
-Signal Fire AI-9 fusion splicer
-Holder SOC
-toolbox
-set of spare electrodes
-fiber cleaver
-universal stripper
-stripper for flat cables
-bottle with dispenser
-cleaning brush
-carrying belts (for the splicer and the box)
-AC charger with USB adapter


Specifications
Name Signal Fire AI-9
Code L5875
Fiber alignment core-to-core
cladding-to-cladding
manual
Splicing cycle 5 s
Sleeve heating cycle 15 s (40 mm)
Number of motors 6
Auto-focus Yes
Fiber type compatibility SM (G.652, G.657), MM (G.651 - OM1, OM2, OM3, OM4), DS, NZDS (G.655)
Splice loss (typical) 0.025 dB (SM), 0.01 dB (MM),
0.04 dB (DS/NZDS)
Return loss min 60 dB
Calibration of the electric arc manual
Durability of electrodes ca. 3000 splices (the kit includes spare electrodes)
Fiber diameter range buffer: 80-150 μm
jacket: 100-1000 μm
Fiber cutting length 8 - 16 mm (250 μm overlap):
16 mm (>250 μm overlap)
Strength test Yes (2 N)
Magnification x300 (in X or Y axis; x150 in both axes simultaneously)
Display 5.1" color TFT, 800x480 pixels
Power 7800 mAh lithium rech. battery, charging time 3.5 h
100-240 VAC charger with 13.5 VDC / 4 A output
Optical Power Meter
Wavelenght: 850 nm, 1300 nm, 1310 nm, 1490 nm, 1550 nm, 1625 nm

Measuring range: -70 dBm...+6 dBm

Measurement error: < 0,3 dB

Visual Fault Locator
Wavelenght: 650 nm

Power: 15 mW

Modes: constant or 2 Hz tone

Operating temperature range -15°C...+50°C
Operating humidity range (RH) < 95% (no condensation)
Weight 2.08 kg (splicer with battery)
7.1 kg (whole kit)
Dimensions splicer: 130 x 122 x 148 mm
toolbox: 270 x 237 x 293 mm
Remarks USB adapter
configuration and diagnostic app
protection sleeves up to 60 mm

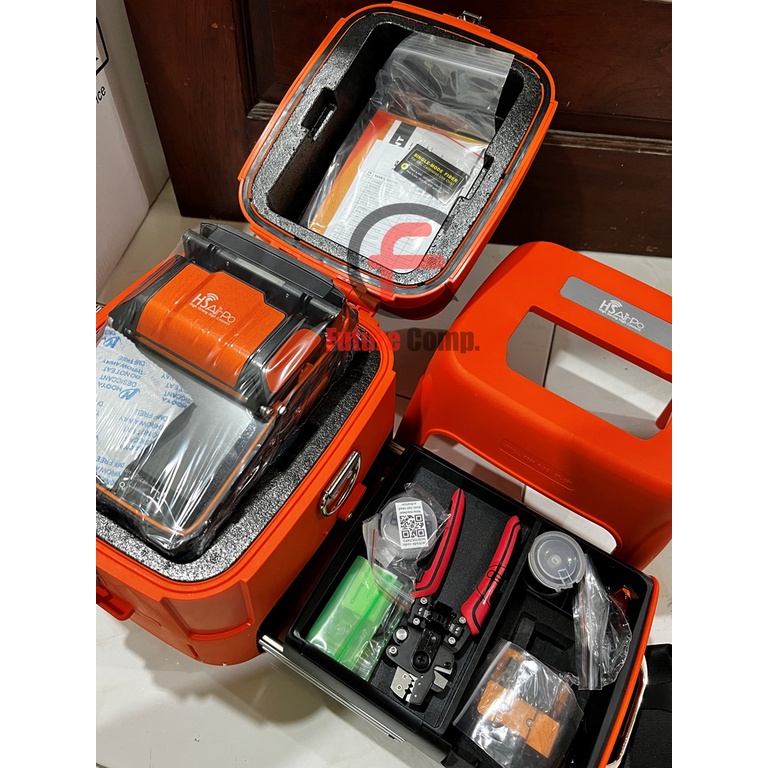

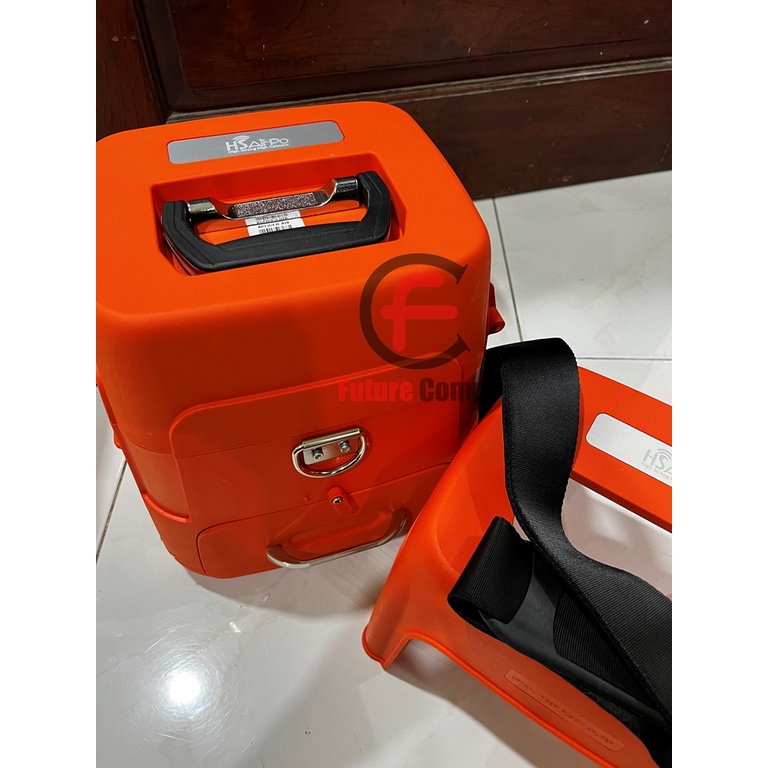

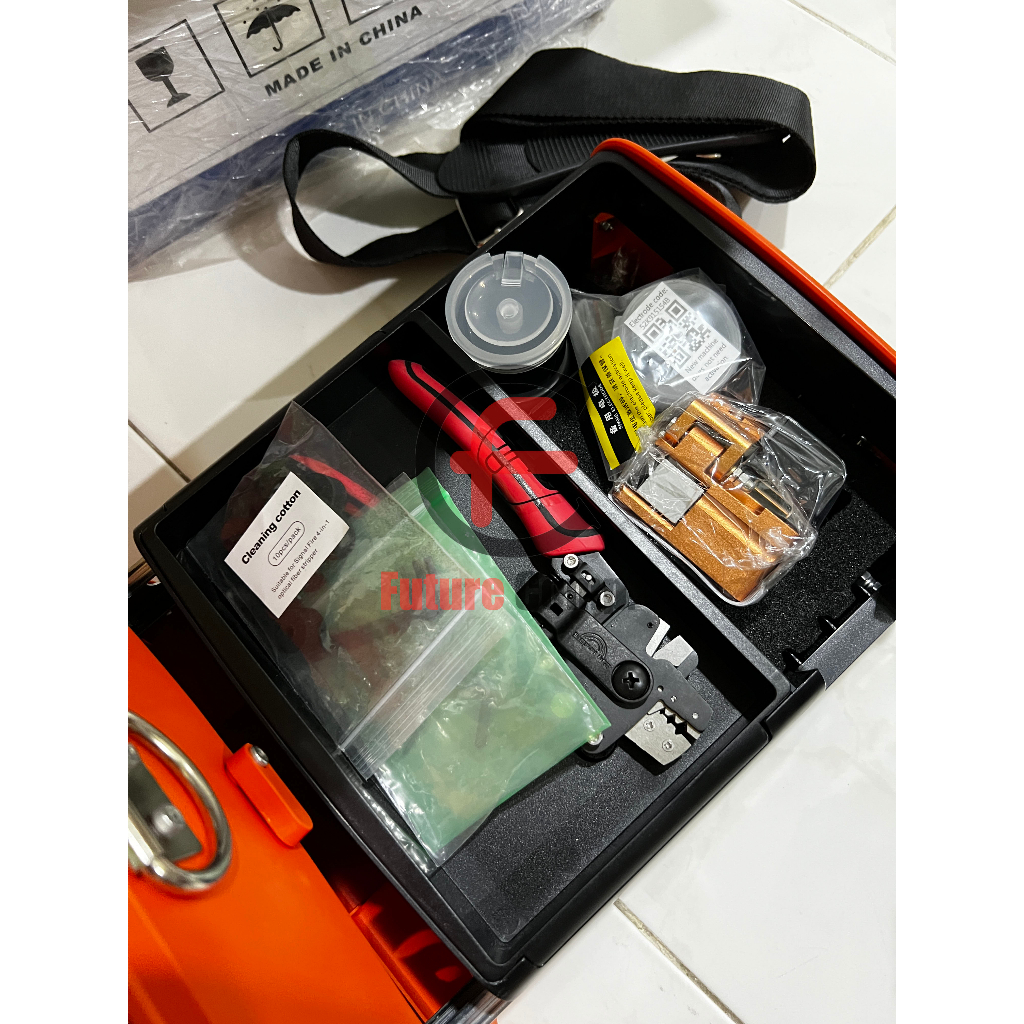

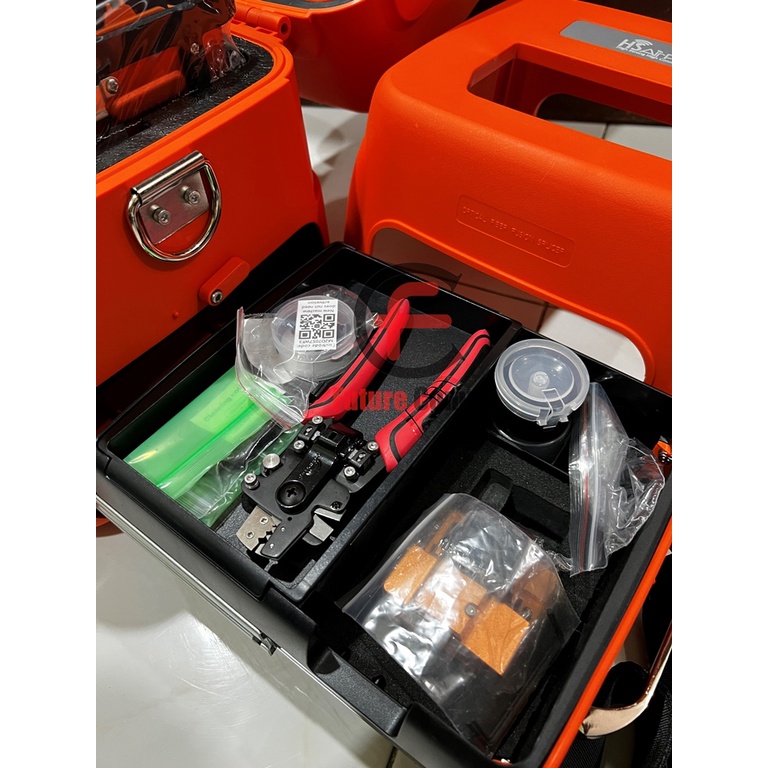

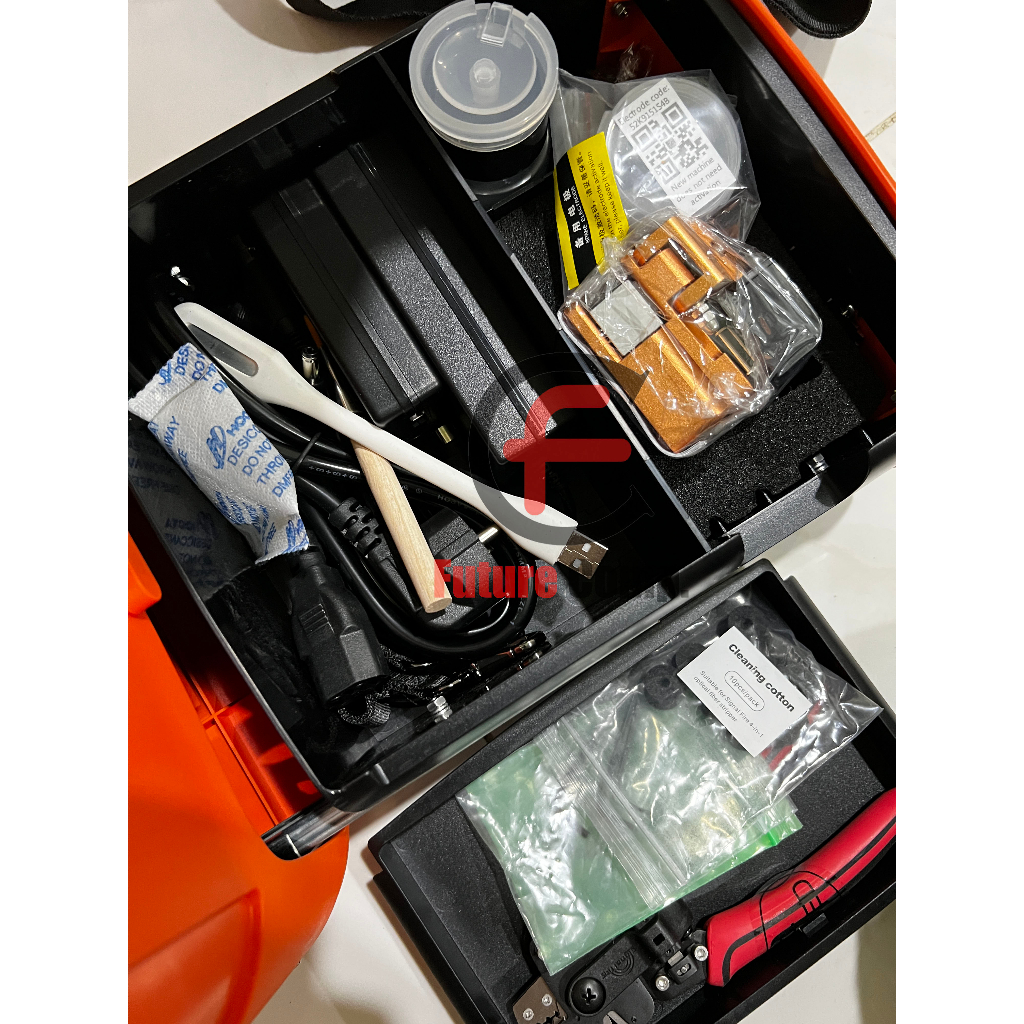

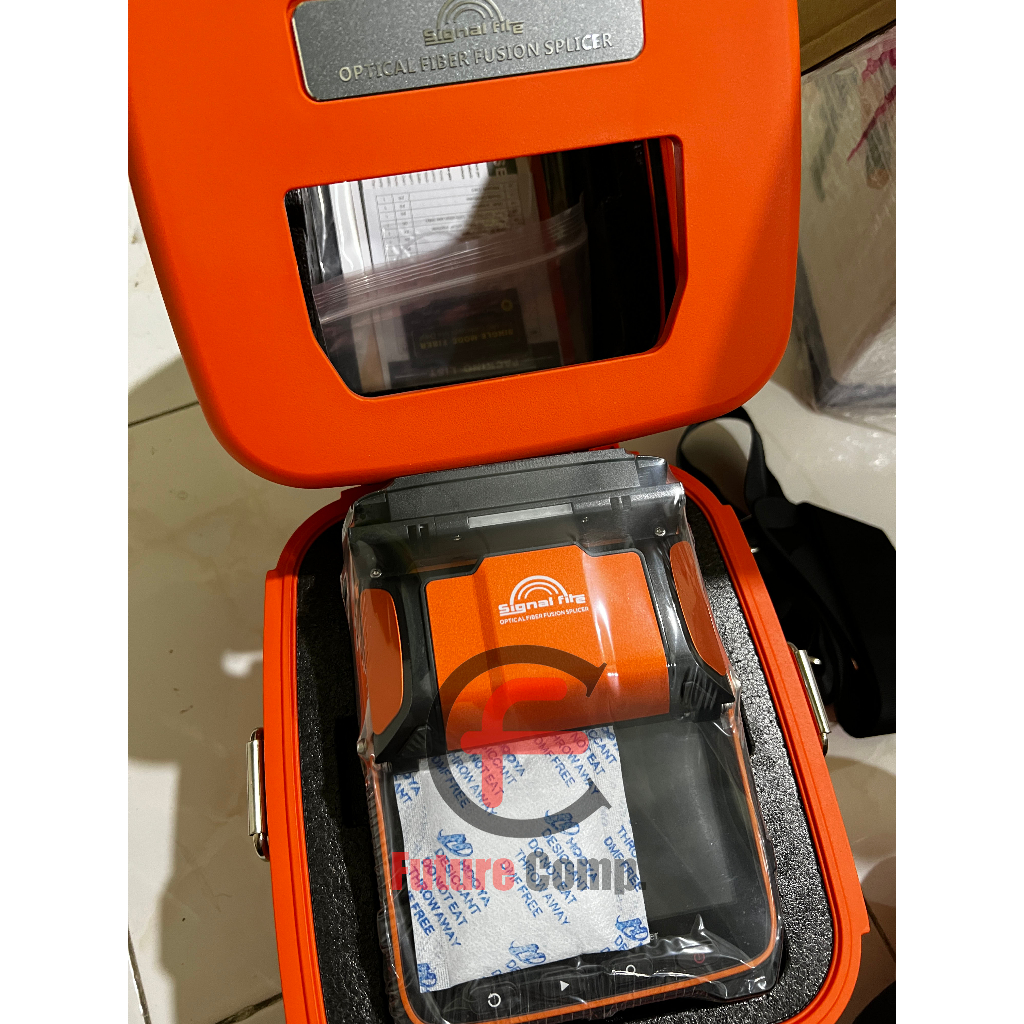

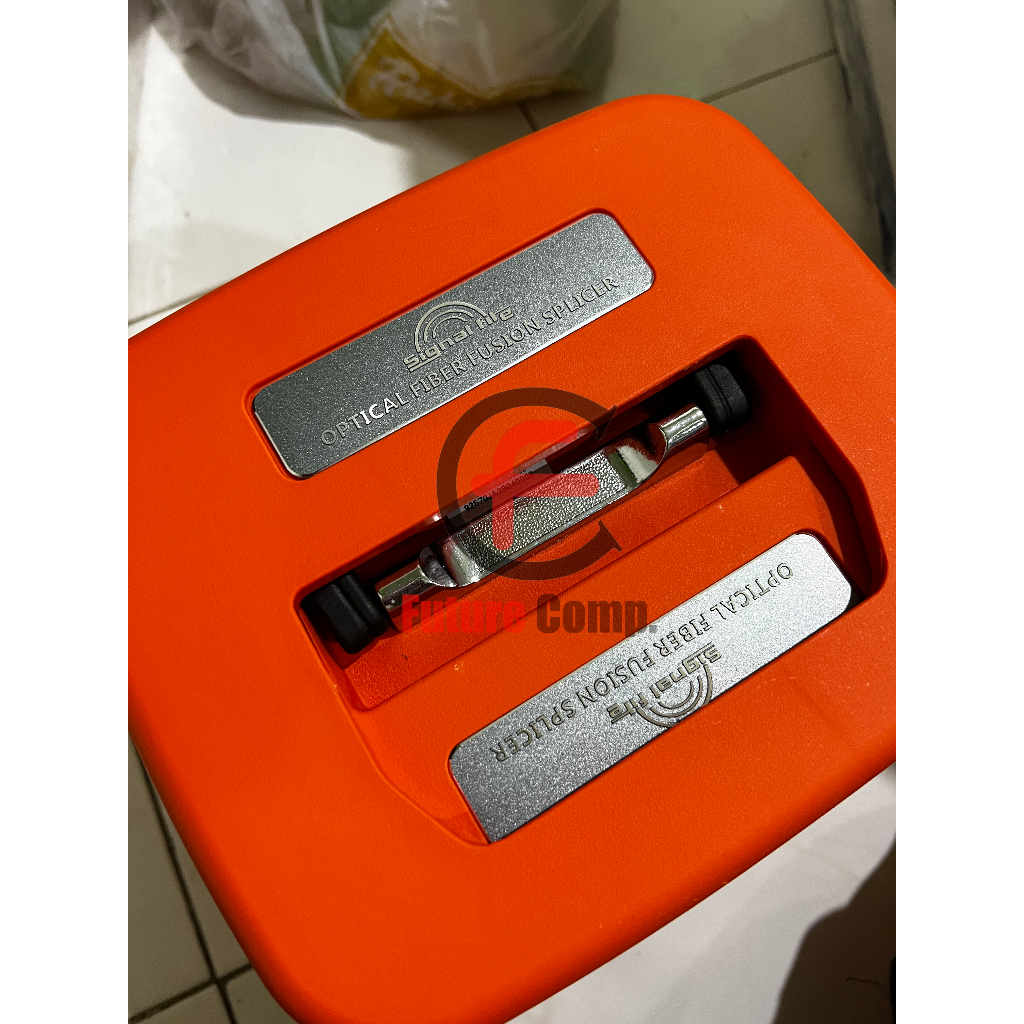

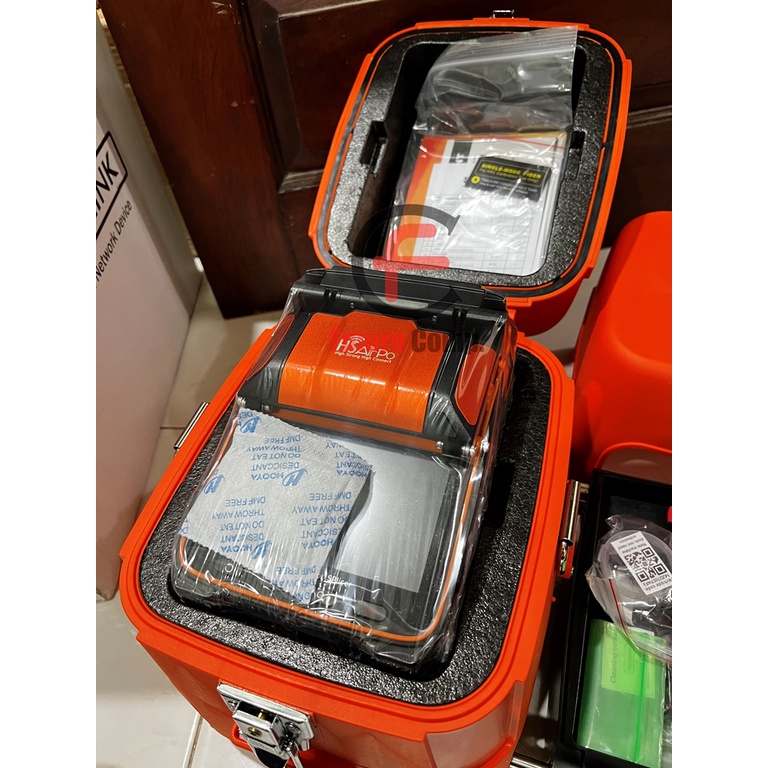

Gambar produk
