Splicer Signal Fire AI-6A dan AI-6C+ ORIGINAL Fiber Optik

Detail Splicer Signal Fire AI-6A dan AI-6C+ ORIGINAL Fiber Optik

SIGNAL FIRE

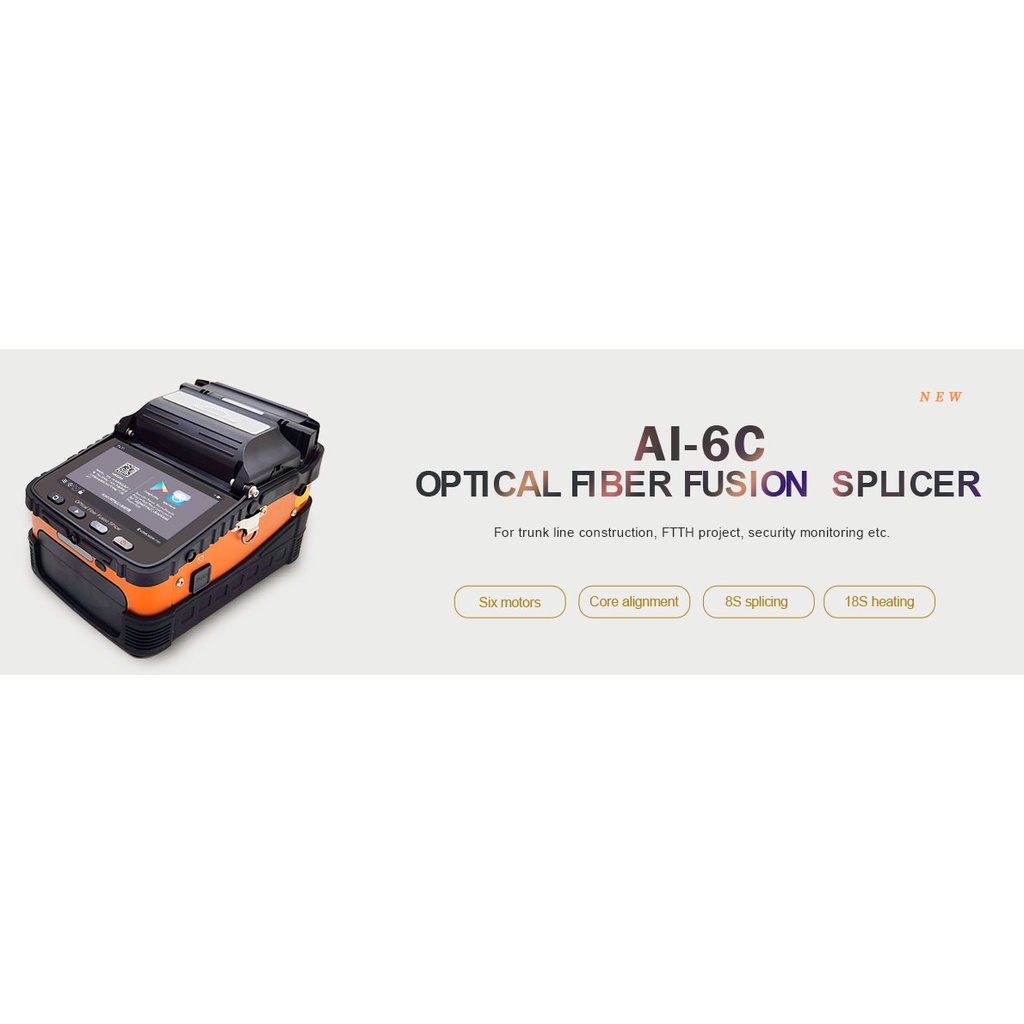

TYPE : AI-6C (6 MOTOR)

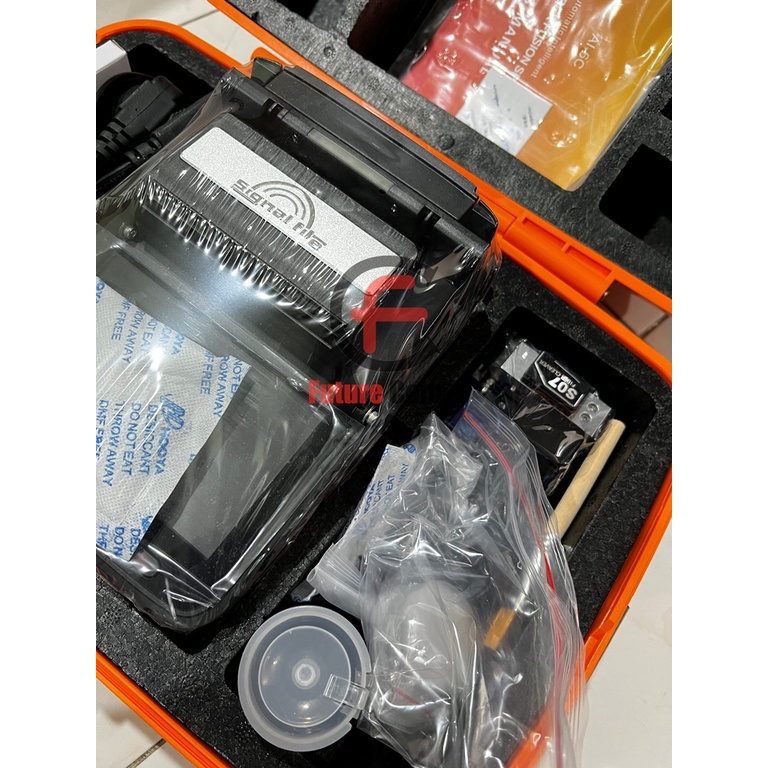

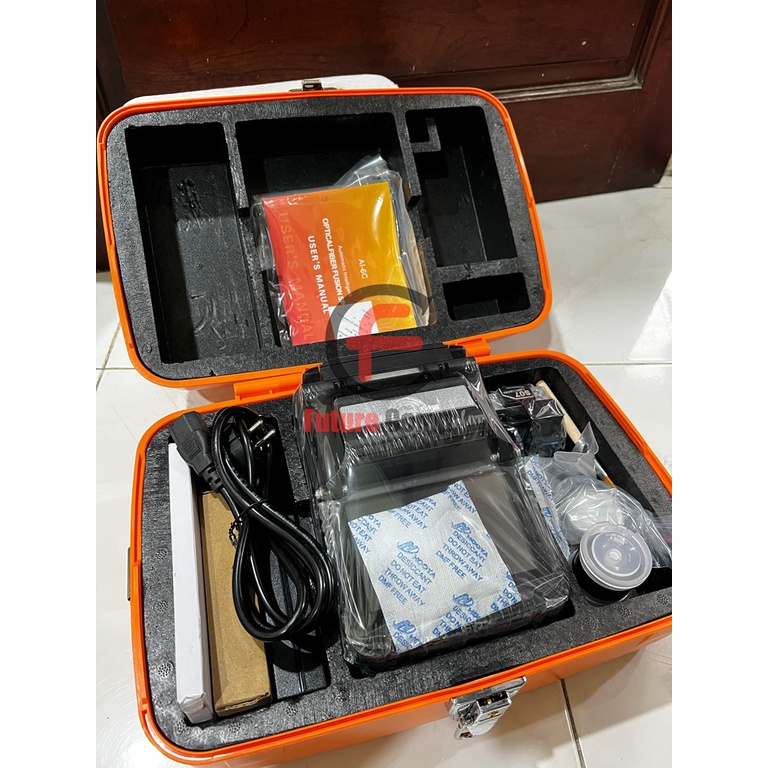

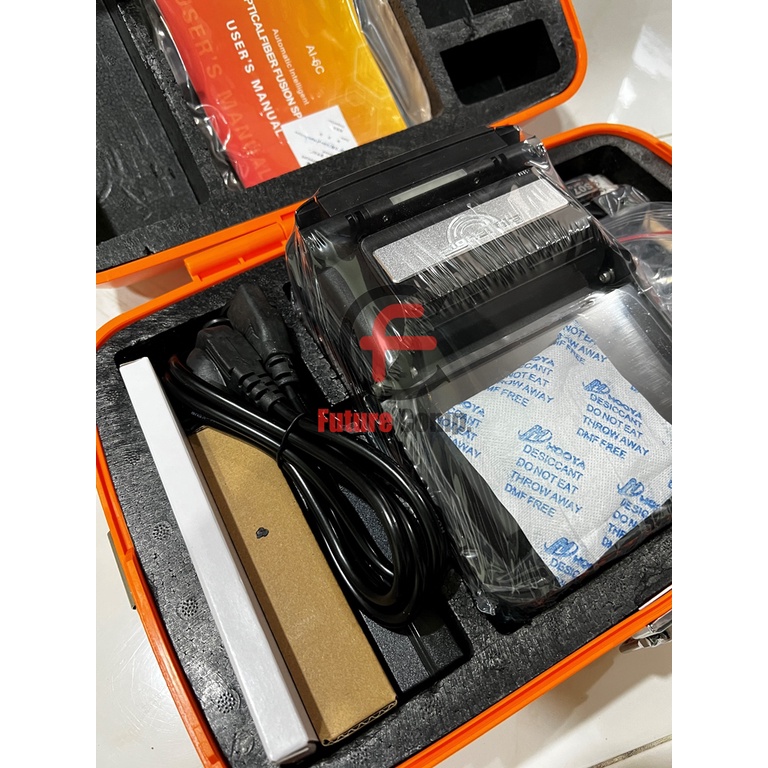

KELENGKAPAN:

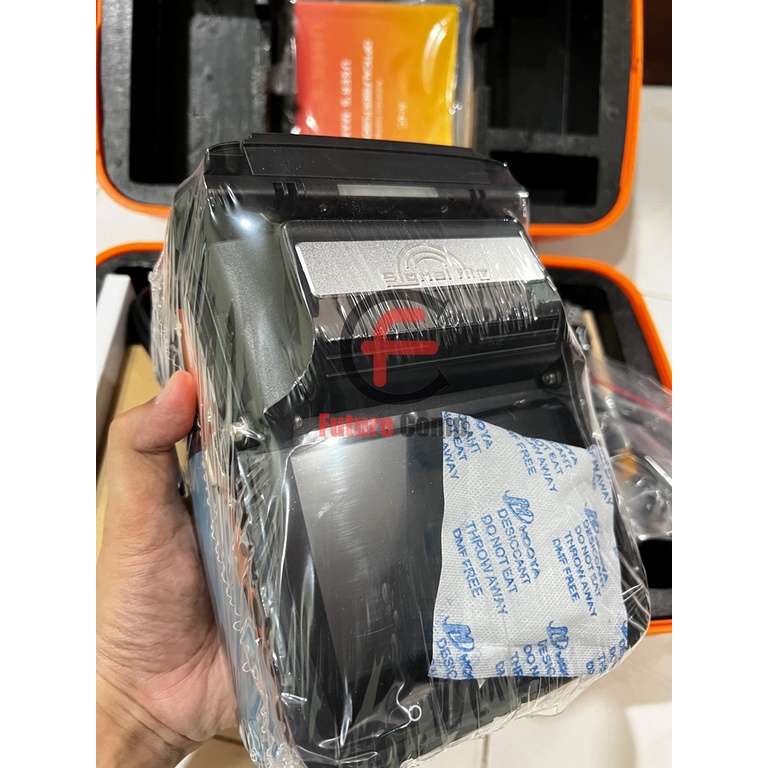

- 1 unit MESIN SPLICING

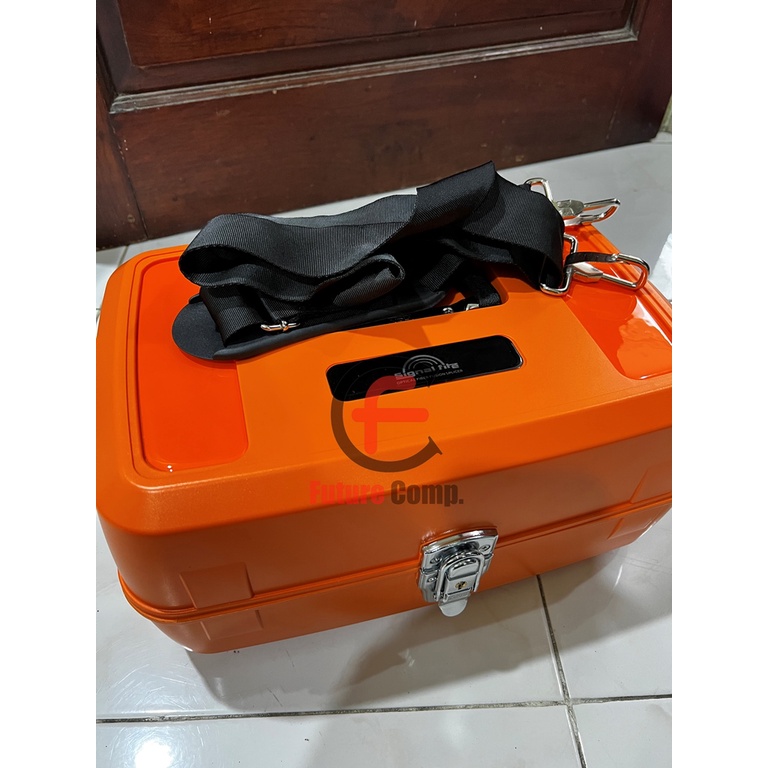

- 1 set BOX
- 1 set HOLDER SOC
- 1 set Elektroda
- 1 set CHARGER
- 1 set CLEAVER+kunci L
- 1 unit TANG STRIPPER 3hole
- 1 unit TANG dropcore
- 1 unit BOTOL ALKOHOL
- 1 unit kuas pembersih

Deskripsi :

Applicable Fibers SM(G.652&G.657)?MM(G.651)?DS(G.657)?NZDS(G.655)
Splice Loss 0.025dB(SM)?0.01dB(MM)0.04dB(DS/NZDS)
Focus mode 6 motors Auto focus
Fiber alignment Core/cladding alignment Manual alignment
Typical splicing time 8S
Typical heating time 18S Fast heating function, heating time can be set ,Automatic heating(Preheating),heating programs(max.10)
Control technology Real-time control and calibration of fusion ARC
Return loss Better than 60DB
Fiber diameter Cladding Diameter 80-150μm,Coating Diameter 100-1000μm
Fiber Cleave Length Coating less than 250µm:5-16mmCoating less m250-1000μm:16mm
Shrinkable tube 60mm?50mm?40mm?25mm
Boot time 1 second
Tension Test Standard 2N
Fiber holders 3 in 1 fiber holder,SM, MM, bare fiber, pigtail, rubber-insulated, multi fiber cable
Magnification 300 for X or Y , 150 for XY view

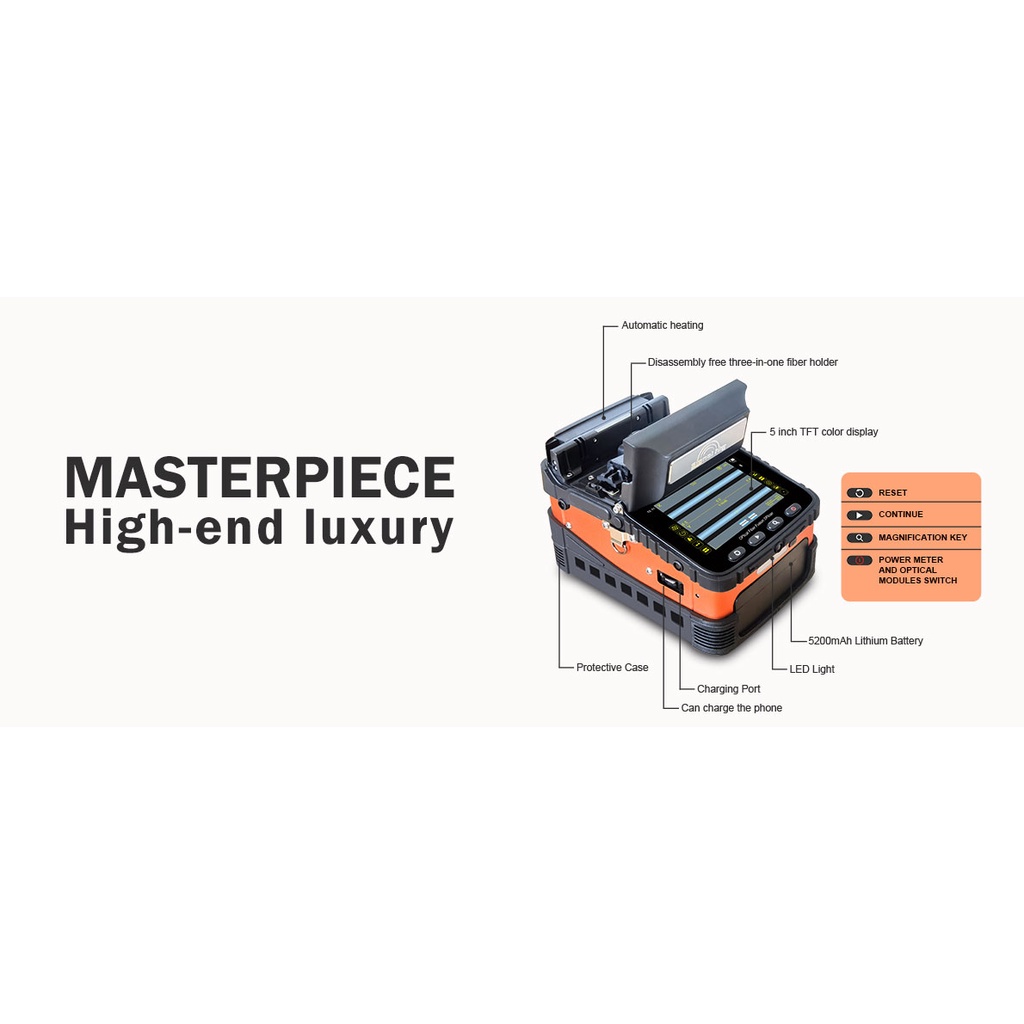

Screen 5 inch TFT color display
Software update length Automatically update, Update by a key
Splicing Mode Normal / high precision splicing(splicing prograns max 100)
Splicing method Fully automatic,step by step splicing
Splicing record storage Synchronize to the phone, the server to cloud storage unlimited
Built-in battery 5200 mAh high-capacity lithium battery, charging time≤3.5 hours, continuous splicing and heating about 160 times
Power supply Input AC100-240V 50 / 60HZ, output DC13.5V / 4.8A, the current power mode can be identified, real-time detection of battery power
Operating Conditions Temperature -15 ~ +50 ?, humidity: <95% RH (no condensation),Working altitude: 0 ~ 5000m. Resist max. wind speed: ≤ 15m / s
Product protection Waterproof IP 22,dust proof IP54,shock-resistant
Language setting 10 languages to switch freely

Gambar produk
