Splicer Joinwit JW4108 / Fusion Splicer JW4108 / Alat Sambung Fiber Optik FTTH

Detail Splicer Joinwit JW4108 / Fusion Splicer JW4108 / Alat Sambung Fiber Optik FTTH

Ready.. Stok

Splicer Joinwit Fusion Splicer JW4108
Dapat di aplikasikan dengan penyambungan sistem SOC / Fast Connector
Fusion Splicer Joinwit JW4108 Original 100%
Bisa SOC Swift + Include Holder SOC
Bergaransi

Mode Splicing : Auto / Manual

Merek No 1 Di China maupun Indonesia
Tipe : JW4108
Dimensi Produk :
- 135(L) x 155(H) x 158(W) mm

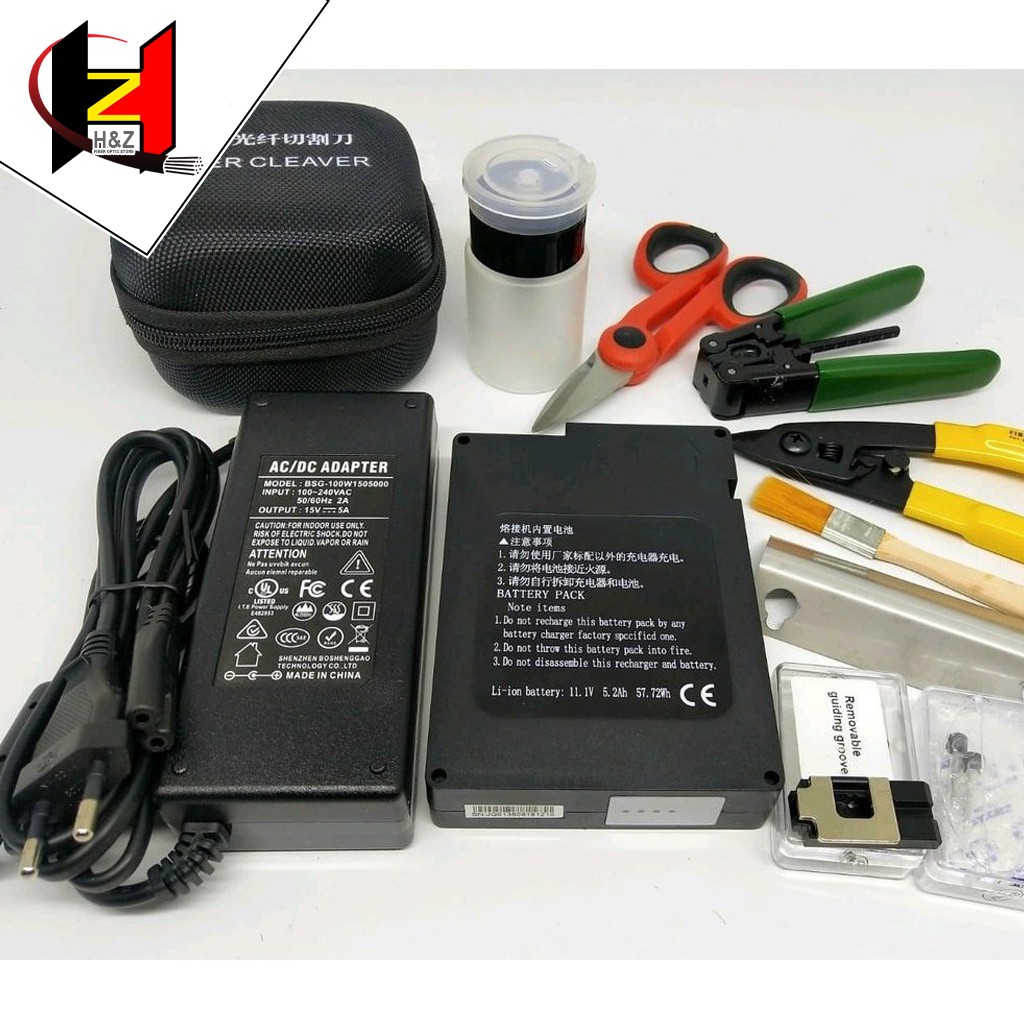

Isi Dalam Paket :
- Unit Splicer JW4108
- Cleaver
- Battery
- Power Adapter
- Holder SOC
- Stripper CFS Fiber Optik
- Eketroda Cadangan
- Aksesoris Lainnya
- Box
- Dus Splicer

Spesifikasi Produk :
- Fusion Splicing Time : 9 Sec
- Heating Time : 25 Sec
- Graphic Display : 5 inch digital high-quality LCD screen
- Electrodes Life : 3000x
- Baterry : 7200mAh
- Charging Time : 3 Hours / Jam
- Splicing Time : 3 Hours / Jam

MODEL JW4108
Applicable Fibers SM, MM, NZ-DS, EDF ,Pigtail, Rubber-insulated wire Series
Average Splice Loss 0.02dB(SM), 0.01dB(MM), 0.04dB(NZDS), 0.04dB(EDF)
Return Loss 60dB
Tension Test 2.0N(200gf)(Standard)
Splicing Program 50 groups
Protection Sleeve Length 20mm, 40mm, 60mm
Language Chinese, English
Environmental Conditions -10 ~ +50 (operation temperature),0 ~95% RH(humidity), 0 ~5000m(altitude)
Power Supply AC adaptor: 100 ~ 240V input voltage, 50/60Hz; 12V, 5A output*voltage(DC)
DC adaptor: 12V voltage 8AH
Dimensions 155(W)165(D)150(H)


Ada juga yang Tipe JW4106s......... , silahkan cek langsung di toko kami

Jika ada yang belum di pahami silahkan bertanya pada kolom chat langsung yah kak
