Detail Splicer JetFiber H5 6 Motor /ARC Fusion Splicer JETFIBER H5 Beckbone Second


Video perkenalan produk Splicer JetFiber H5 6 Motor /ARC Fusion Splicer JETFIBER H5 Beckbone. Sumber: Shopee.

Fusion Splicer H5 Beckboun 6 Motor

1. 1 secs. topspeed boot time.
2. 3 secs. splicing time.
3. 12 secs. Heating timie.
4. Max. 300X fiber magnification.
5. Smart-connected APP.
6. Splicing record management.
7. Intelligent burglar-resisting system.
8. Three-dimensional protection cover.
9. Reduce risk and unpredictability.
10. Handy.lightweight.anti-dropping solid and durable.
11. Hi-speed USB.
12. Splice loss: SM:0.02dB,MM:0.01dB,DS:0.04dB,NZ/NZDS:0.04dB,BI:0.02dB.
13. 4 motors and flexible V-groove alignment system.
14. 4000 mAh battery capacity over 250 times splicing and heating.
15. One year warranty and lifetime maintenance.

Specifications:
Fiber type: SM(ITU-T G.652), MM(ITU-T G.651),DS(ITU-T G.653), NZ/NZDS(ITU-T G.655),BI(ITU-T G.657)

Fiber diameter: Cladding diameter 80~150um, coating 100~1000um
Cleave length:250um cladding diameter 8~16mm, over 250um cladding diameter 16mm
Splicing programs: Max.200
Splicing cycle time: 6 secs.[SM Fast] program, 10 secs.[SM G652] program
Heating programs: Max.30
Heating cycle time: Adjustable, 15 secs. typical
Splice protector: 13~60mm
Splice image capture: Max.100

Splice data storage: Max.3000

Splice loss: SM:0.02dB, MM:0.01dB, DS:0.04dB, NZ/NZDS:0.04dB, BI:0.02dB
Return loss: >>60dB
Loss estimation: Provided
Operation condition: Altitude 0~5000m, Humidity 0~95%, Temperature -20~+50C, Wind velocity up to 15m/s
Storage condition: Humidity 0~95%, Temperature -40~+80℃(Battery -20~+40C)
Tension: 2N
Fiber view: Two cameras observation, 4.1 inch high-light color screen
Fiber magnification: 300x for X or Y single axis view, 180x for both X&Y dual axis view
Port: High speed USB
Electrode life: 5000 arc discharges
Power supply: AC100-240V, 50/60Hz
Battery module: 4000mAh High capacity battery, more than 240 times splicing and heating

Apabila ada yang kurang jelas bisa ditanyakan di chat ka.
Terima Kasih

Gambar produk

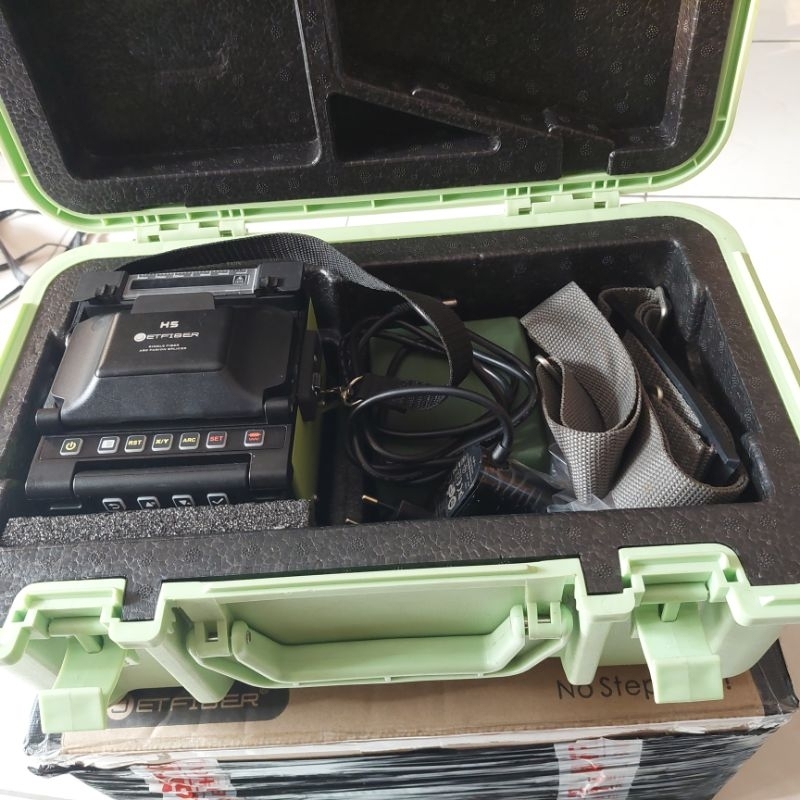

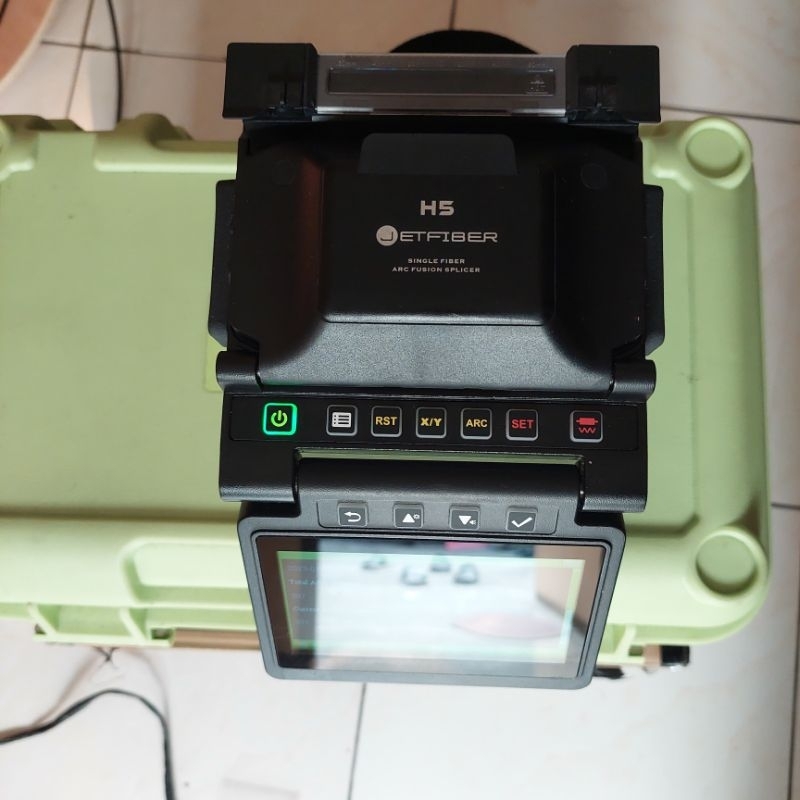

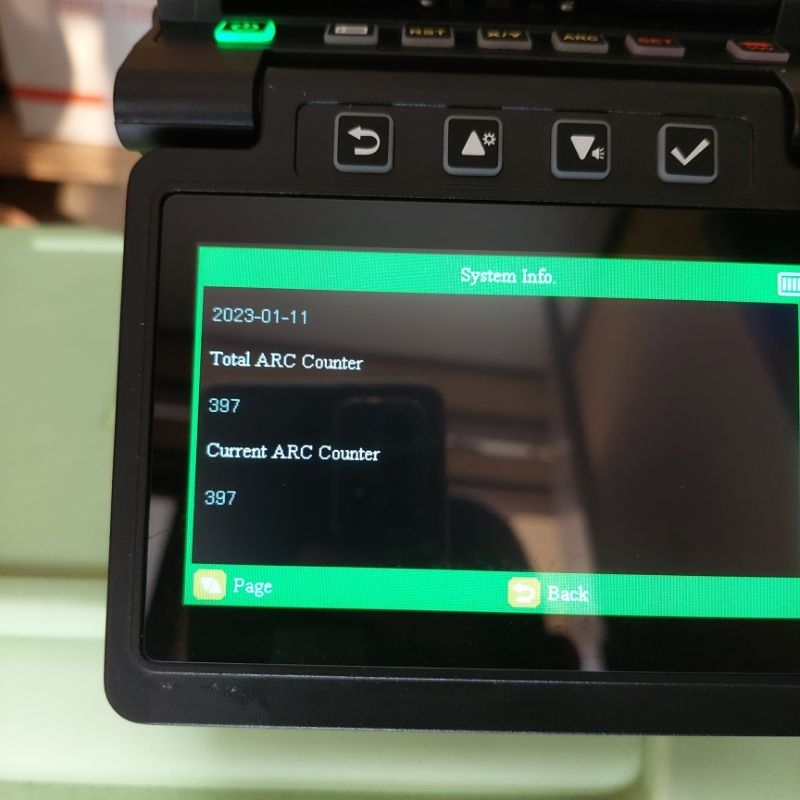

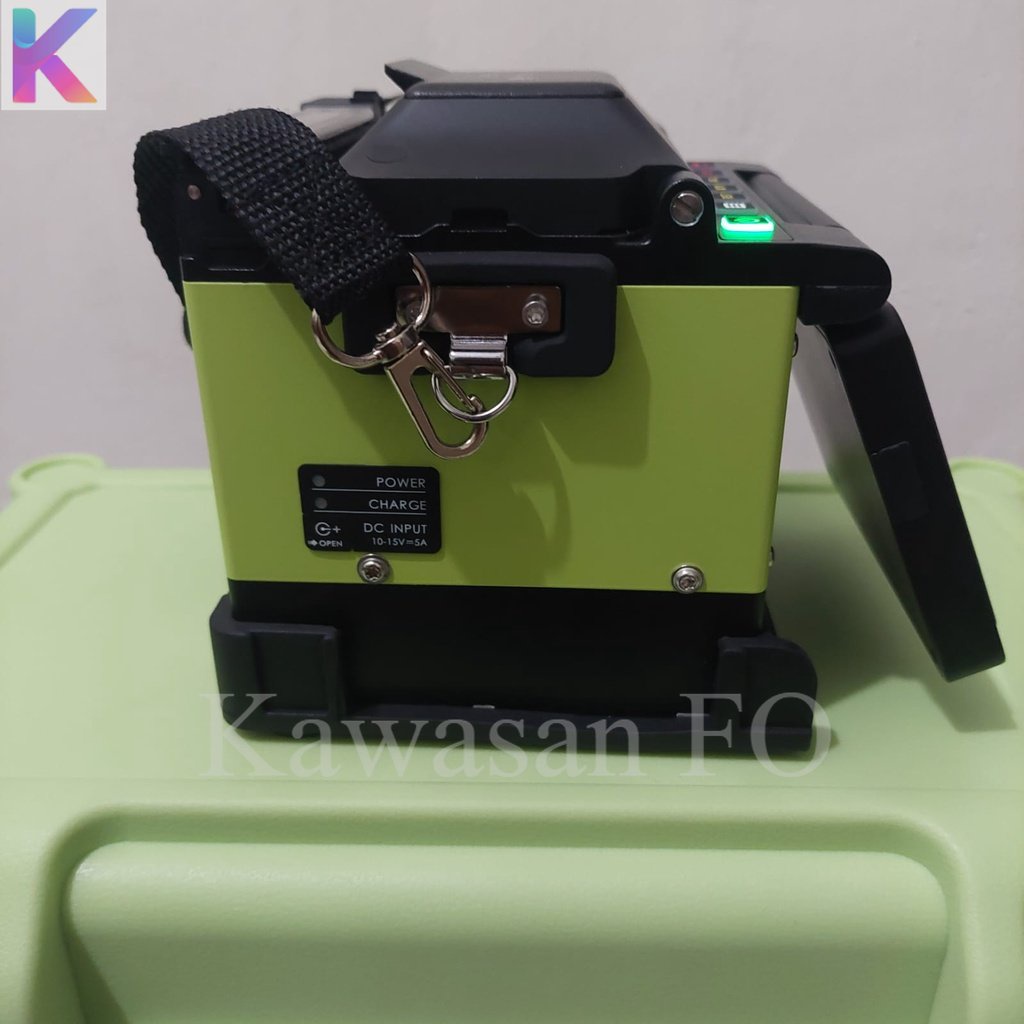

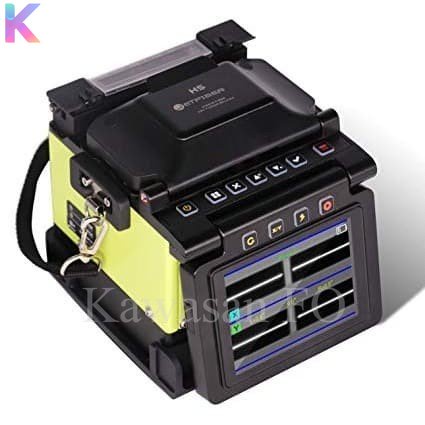

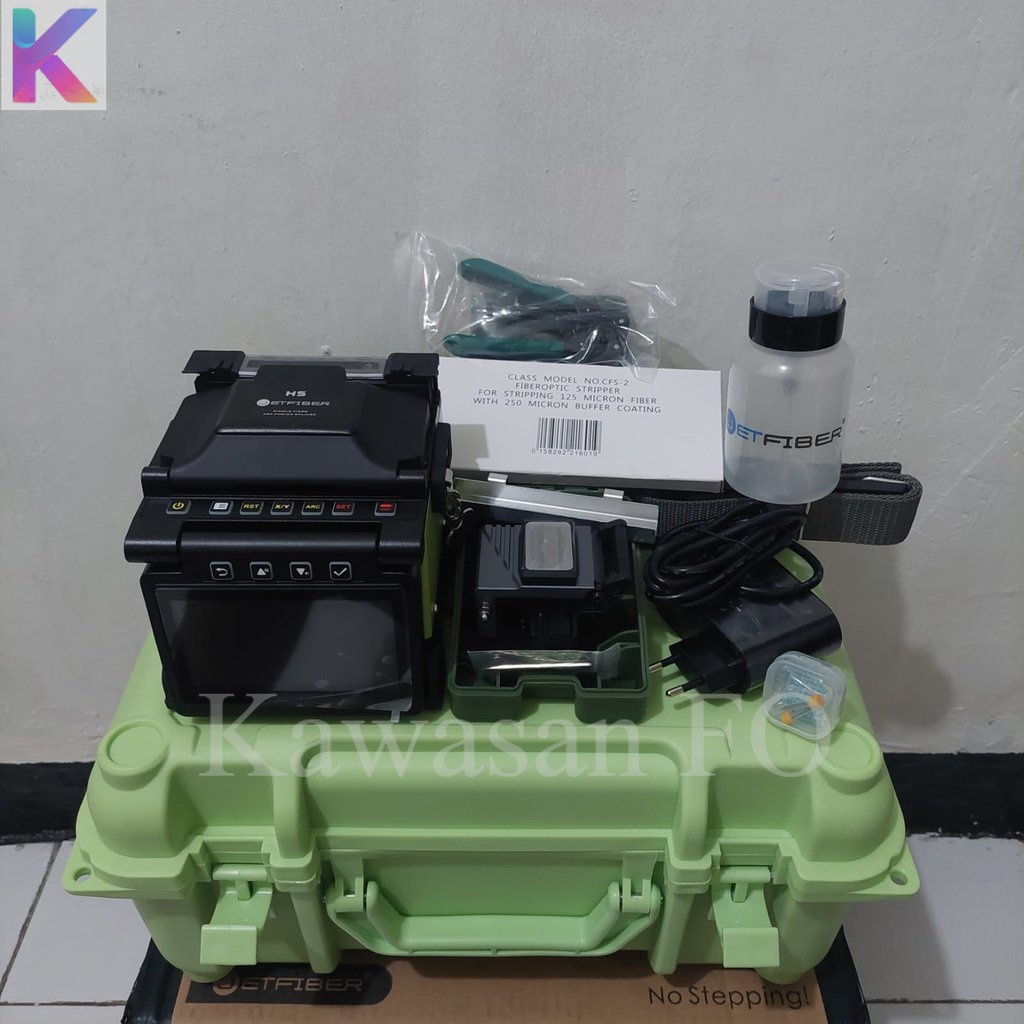

Splicer JetFiber H5 6 Motor /ARC Fusion Splicer JETFIBER H5 Beckbone Second
