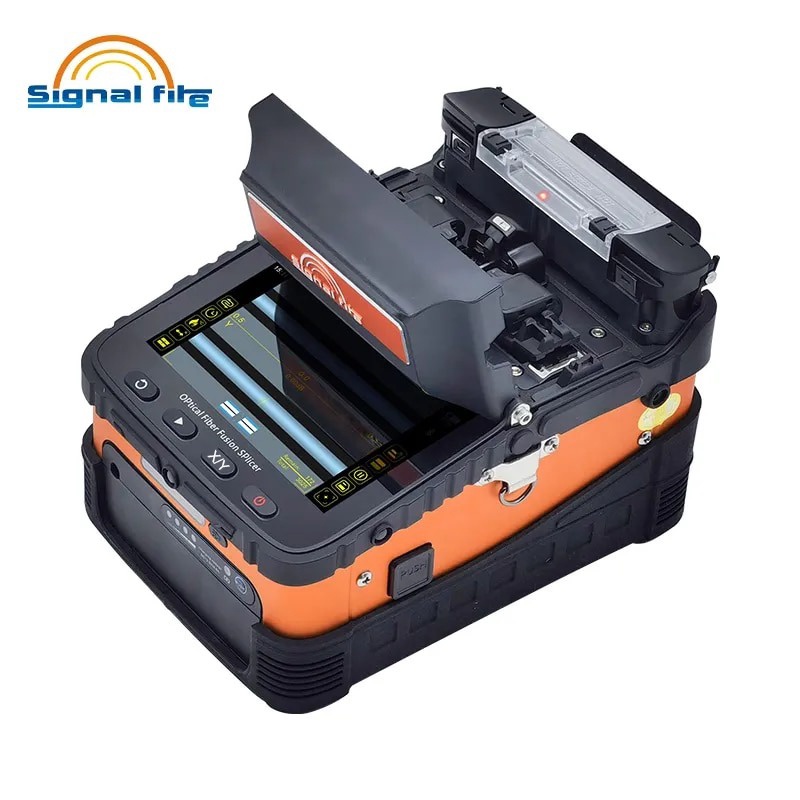

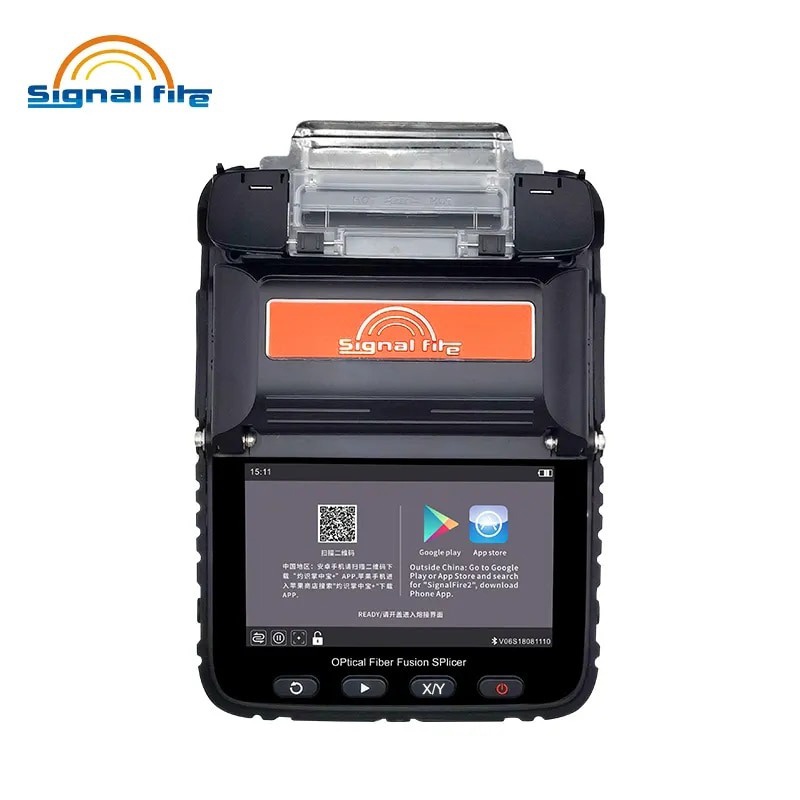

Splicer AI-6C Signal Fire 6 Motor Fiber Optical Automatic Fusion

Komputer & Aksesoris > Komponen Network > Kabel Network & Konektor > Splicer AI-6C Signal Fire 6 Motor Fiber Optical Automatic Fusion
  • Pengiriman Ekspres
  • Barang yang diperiksa
  • Bayar di tempat berlaku
  • Kualitas, Prestise
  • Pengembalian produk
  • Dukung pembuatan faktur

Detail Splicer AI-6C Signal Fire 6 Motor Fiber Optical Automatic Fusion

Applicable Fibers :    SM(G.652&G.657)MMG.651DS(G.657)NZDSG.655
Splice Loss  :  0.025dBSM0.01dBMM0.04dBDS/NZDS
Focus mode :   6 motors Auto focus
Fiber alignment :    Core/cladding alignment Manual alignment
Typical splicing time :    8S
Typical heating time :    18S
Fast heating function, heating time can be set Automatic heating(Preheating),
heating programs(max.10)
Control technology :    Real-time control and calibration of fusion ARC
Return loss  :  Better than 60DB
Fiber diameter :    Cladding Diameter 80-150m Coating Diameter 100-1000m
Fiber Cleave Length :   Coating less than 250m5-16mm Coating less
m250-1000m:16mm
Shrinkable tube :    60mm50mm40mm25mm
Boot time :   1 second
Tension Test : Standard 2N
Fiber holders : 3 in 1 fiber holderSM, MM, bare fiber, pigtail,
rubber-insulated, multi fiber cable
Magnification : 300 for X or Y , 150 for XY view
Screen : 5 inch TFT color display
Software update length : Automatically update, Update by a key
Splicing Mode : Normal / high precision splicing(splicing prograns max 100)
Splicing method : Fully automatic,step by step splicing
Splicing record storage : Synchronize to the phone, the server to cloud storage
unlimited
Built-in battery  : 5200 mAh high-capacity lithium battery, charging time3.5
hours, continuous splicing and heating about 160 times
Power supply : Input AC100-240V 50 / 60HZ, output DC13.5V / 4.8A, the current
power mode can be identified, real-time detection of battery power
Conditions : Temperature -15 ~ +50 , humidity: <95% RH (no condensation),Working
altitude: 0  5000m. Resist max. wind speed:  15m / s
Product protection : Waterproof IP 22,dust proof IP54,shock-resistant
Language setting : 10 languages to switch freely
BRAND : HSAIRPO
TYPE : AI-6C (6 MOTOR)

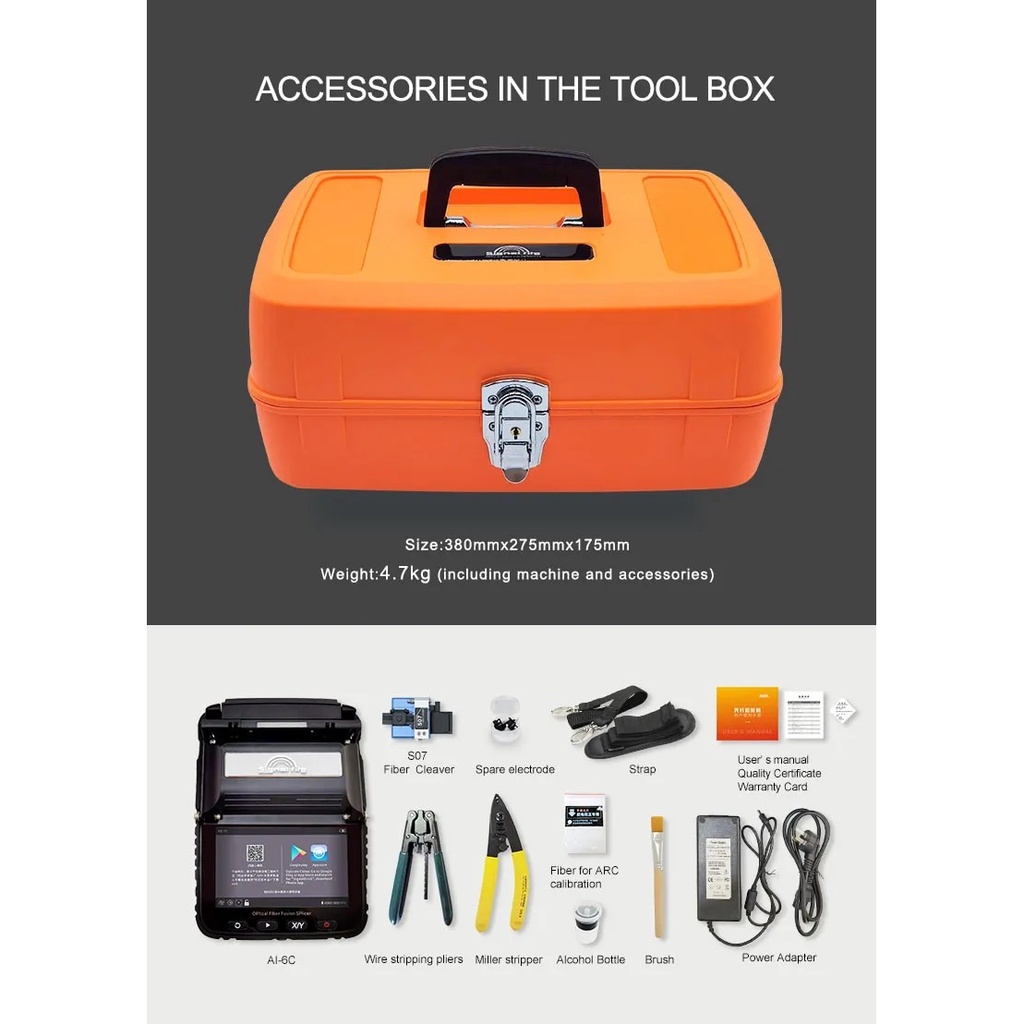

KELENGKAPAN:
- 1 unit MESIN SPLICING
- 1 set BOX
- 1 set HOLDER SOC
- 1 set ELEKTRODA
- 1 set CHARGER
- 1 set CLEAVER+kunci L
- 1 unit TANG STRIPPER 3hole
- 1 unit TANG dropcore
- 1 unit BOTOL ALKOHOL
- 1 unit kuas pembersih
