Splicer 13MMT S3 6 Motor Splicing Fiber Optic

Detail Splicer 13MMT S3 6 Motor Splicing Fiber Optic

Splicer 13MT S3 6 Motor not V9 mini Splicing Fiber Optic

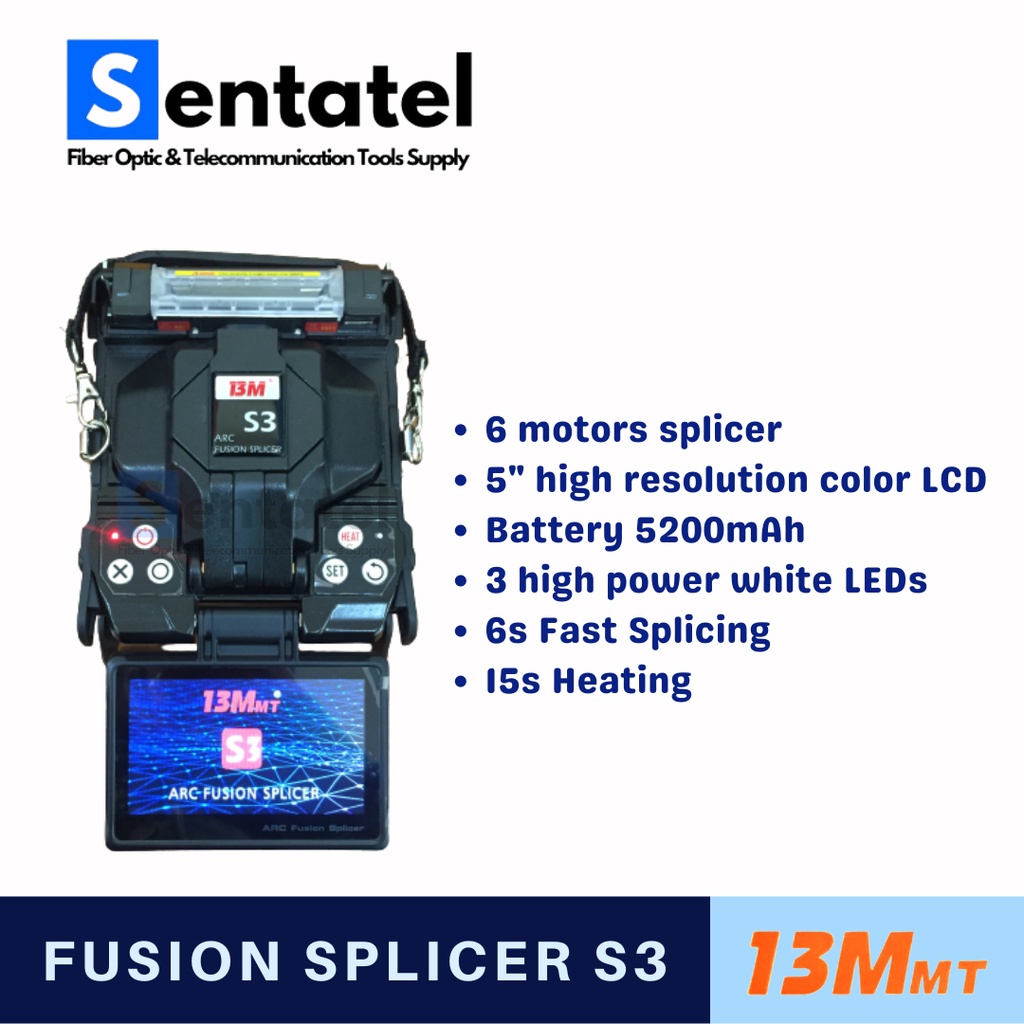

Fusion Splicer 13MT S3 is one of the most powerful and intelligent fusion splicing machines and adopts core alignment technology. It has industrial-level Quad-core CPU( Mainly 1.4 GHz ), featuring low power cost and high performances, equipping with 5” High-Resolution color LCD touch screen for easy operations, achieving industry’s magnification of 500X so that fiber conditions can be easily inspected with unaided eyes. Innovative technology brings unlimited convenience. With its excellent and stable performances,13MT S3 has become one of the most reliable and effective fusion splicer in global market.

Specifications

Model : 13MT S3
Number of Fiber : Single
Applicable Fibers : SM(ITU-T G.652&G.657) / MM(ITU-T G.651) / DS(ITU-T G.653) / NZDS(ITU-T G.655)
Compatible Fiber / Cable : 0.25~3.0 mm / Indoor Cable (0.9mm/2.0mm/2.4mm)
Cleaved Length : Diameter: 0.125~1 mm / Cleave Length: 6~16 mm
Splicing Mode : Multiple splicing modes max 100 modes
Typical Splice Loss : 0.01-0.05db
Return Loss : >> 60 dB
Lighting : 1 Powerful White LED and Illuminated Keypads
Splicing Time : 6~8 seconds
Estimated Splice Loss : Available
Protection Sleeve Length : 20~60 mm
Heating Mode : Multi Heating Modes
Heating Time :13s Typical Heating Time: 30 sec
Records Storage : The latest 5000 Records
Tension Test : 1.5~2.0N
Operating Condition : Operating Altitude: 0~5000m above Sea Level, 0.95% Relative Humidity,
-10~50°C, Max Wind 15m/s
Storage Condition : 0~95% Relative Humidity, -40~80°C
Display : 90° Bi-directional View,
5.0" 800*480 Color High Resolution Display with Touch Screen
Fiber View & Magnification : X, Y, XY, X/Y : 500X Magnification
Power Supply : AC Input 100-240V, DC Input 12-15V
Battery Capacity : 5200mAh , Typical above 250 times (Splice+Heat)
Operating Methods : Button / Touch Screen
Automatic Calibration : Automatic ARC Calibration According to Air Pressure and Temperature
