Splicer 13MMT S1/Splicer S1 13mmt/Fusion Splicer 13MMT/Alat Sambung Fiber Optik

Detail Splicer 13MMT S1/Splicer S1 13mmt/Fusion Splicer 13MMT/Alat Sambung Fiber Optik

Video perkenalan produk Splicer 13MMT S1/Splicer S1 13mmt/Fusion Splicer 13MMT/Alat Sambung Fiber Optik. Sumber: Shopee.

Fusion Splicer Tumtec 13/MMT

Mode Splicing : Auto / Manual

Kelengkapan :
1. 1 Unit Charger
2. 1 Unit Baterai 5200mAh
3. 1 Unit Stripper Core CFS-3
4. 1 Unit Stripper Dropcore
5. 1 pcs Tali Selempang
6. Elektroda
7. 1 Pcs Botol Alkohol 160ml
8. 1 Unit Box Tempat Penyimpanan Splicer

Spesifikasi Produk :
- Model : 13MMT
- Appicable : Fibers SM(ITU-T G. 652&G.657),MM(ITU
TG.651),DS(ITU-T G.653),NZDS(ITU-T G655)
- Compatible : Fiber/Cable 0.25-3.0mm/Indoor Cable
- Cleaved Length Coating Diameter : 0.125-1mm/Cleave
- length:5-16mm
- Splicing Mode : Multiple Splicing Modes
- Typical Splice : Loss 0.01-0.05db
- Return Loss : 60db
- Lighting : 3 powerful white LED and illuminated keypads
- Splicing : Time 6-8 seconds
- Estimated Splice Loss : Available
- Protection Sleeve : Length 20-60mm
- Heating Mode : Multi Heating Modes
- Heating Time Typical Heating Time: 15s
- Results Storage 2000 records
- Tension Test 1.5-2.0N
- Operating Condition Operating altitude 0-5000m above sea
level, 0-95% relative humiditym-10~50 max wind 15m/s
- Storage Condition 0~95% relative humidity, -40~80
- Power Supply AC Input : 100-240V,DC Input 12-15V
- No. of Splice/Heating with Battery 4800mAh battery capacity,
typical above 200 times(splice+heat)
- Operating Methods Button/Touch Screen
- Automatic Calibration Automatic ARC calibration by air
pressure and temperature
- Electrode Life 3500 ARCS, can be extended by using an
electrode grinder

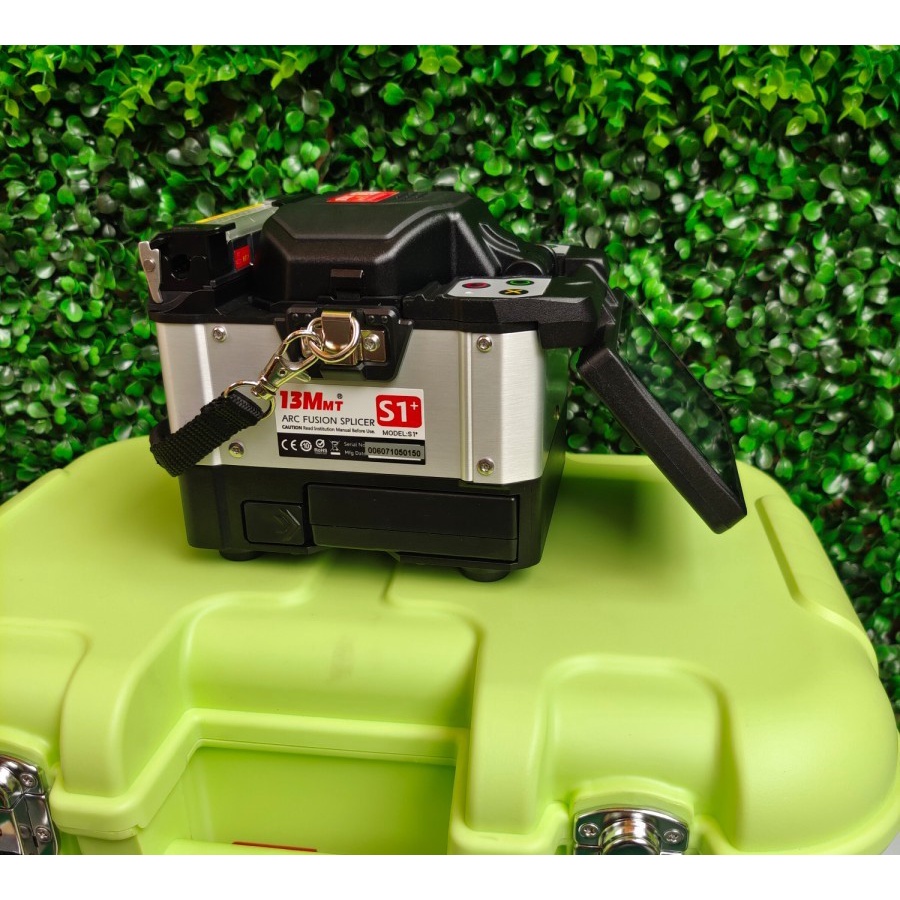

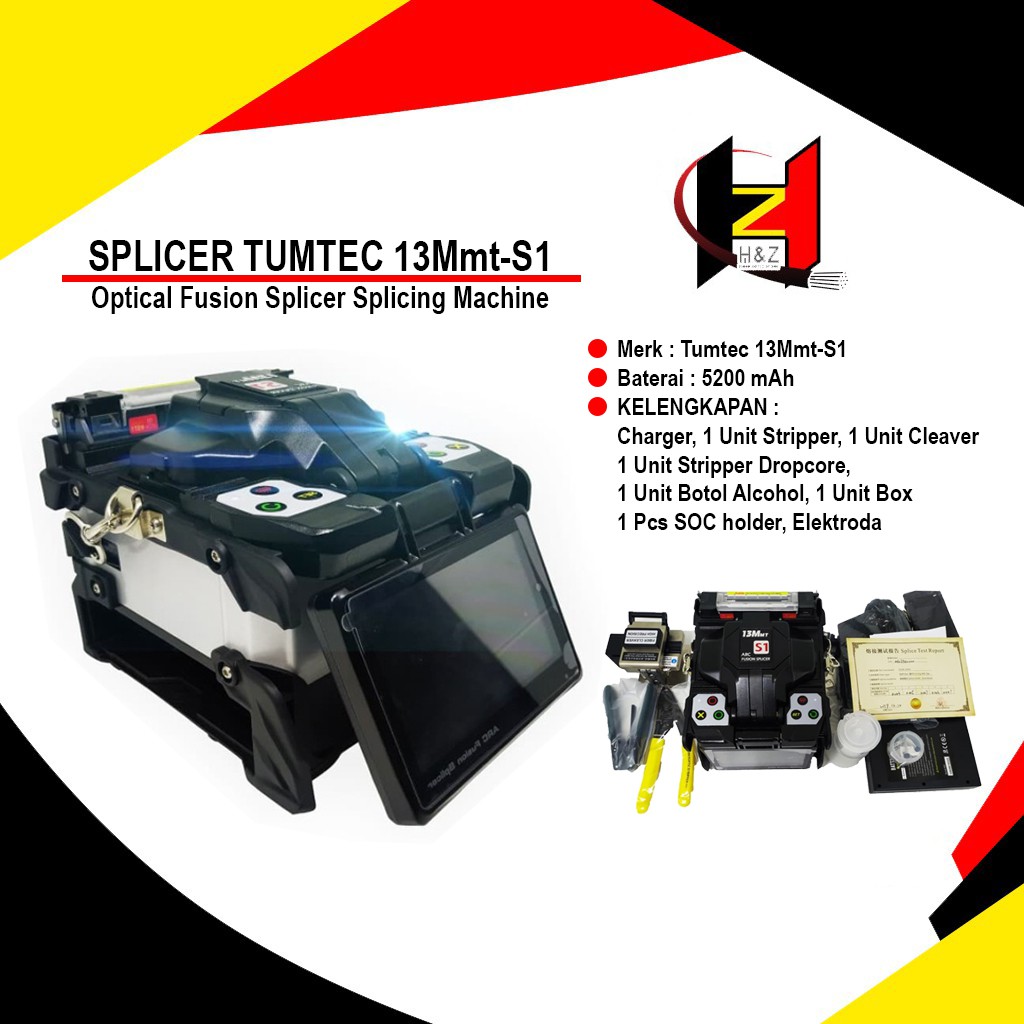

Gambar produk
