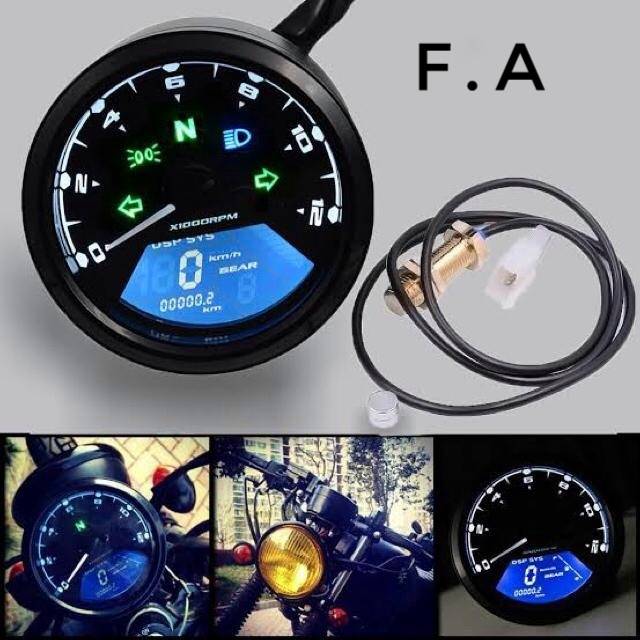

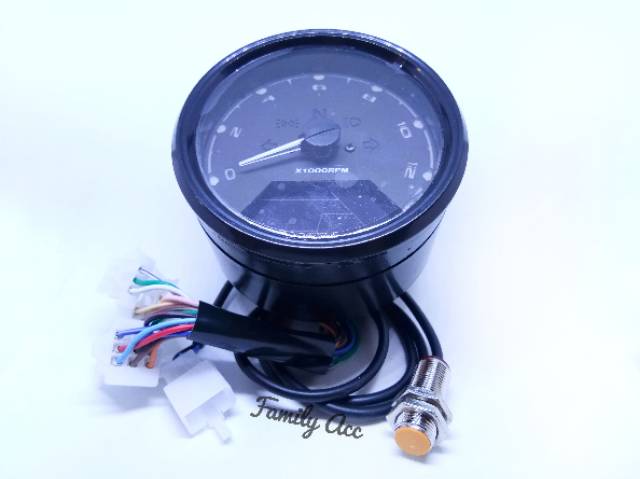

Speedometer Odometer Tachometer Digital LCD 12000RPM KHM - MPH For Motor Universal

Detail Speedometer Odometer Tachometer Digital LCD 12000RPM KHM - MPH For Motor Universal

Description:

100% Brand New
Working voltage : 8-18V
Rated voltage: DC 12V
Working temperature: -20 - +70C
Storage temperature: -30 - +80C
Digital display speed range: 0-199km/h (error +10%)
Needle display rpm range: 0-12000rpm (error +5%)
Digital display odo distance range: 0-99999.9km
Gear indicator: 1-6

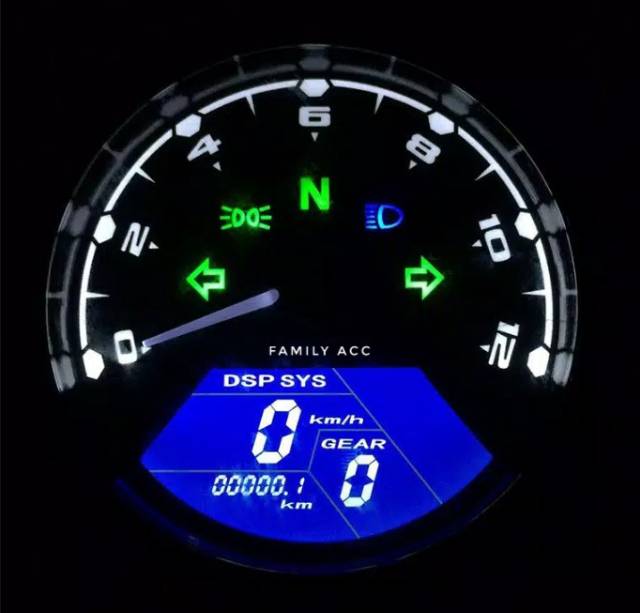

Backlight: Blue
Installation diameter: 9cm
Height: 5.3cm
Cable Length: 12cm
Weight: 344g


Features:

Large anti -UV & Anti-g lare LCD screen
All-in-one design with digital signal processing system
Using chip technology for most of the components
Multiple indicator functions as the L/R Turn Signal, High Beam, Position Lights, N Lights
High withstand voltage up to 100V
Waterproof & Anti-vibration


Fitment:

Fits for most motorcycle that is with 4 stroke, 2/ 4 Cylinders (default as 1 cylinder of the setting)
* Please check the details of our listing before you buy to make sure it fits for your application


Notes:

No friction or contact between the hall probe and the magnet
Engine rotate speed comes from the ignition signal. The sensor wire is normally contacted with the positive side of the magnetor or directly wired on the rectifier
Oil Mass can be wired on the original sensor
Do NOT wired on the headlight if it had been modified as the HID Xenon light. Instead, connect it on the headlight control wiring


Package includes: (retail box)

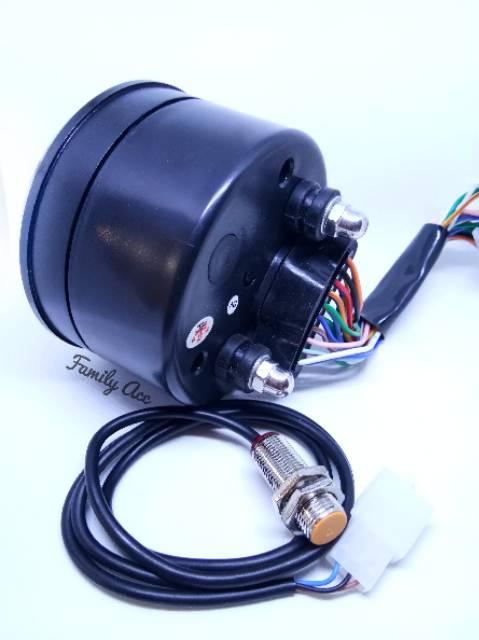

1X Speedometer
1X Sensor
1X User manual (English)
2X Magnetic steel

Gambar produk
