Detail Speed Controller BLDC Brushless Reversible Speed Control 12-36V 15A 180W
Be careful:1.The input must be divided into positive negative poles (do not reverse it)
2.The input voltage should be equal to the rated voltage of the motor (DC5 to 36V).
3.DO NOT INPUT AC220V or burn down directly
4.The PWM controller must be loaded with equipment in order to work properly.
Please do not test without load.
Parameter:
Input vol: DC5-36V (Equal to the rated voltage of the motor )
Speed adjust range: 0-100%
overload protection :15A
Forward reverse: YES

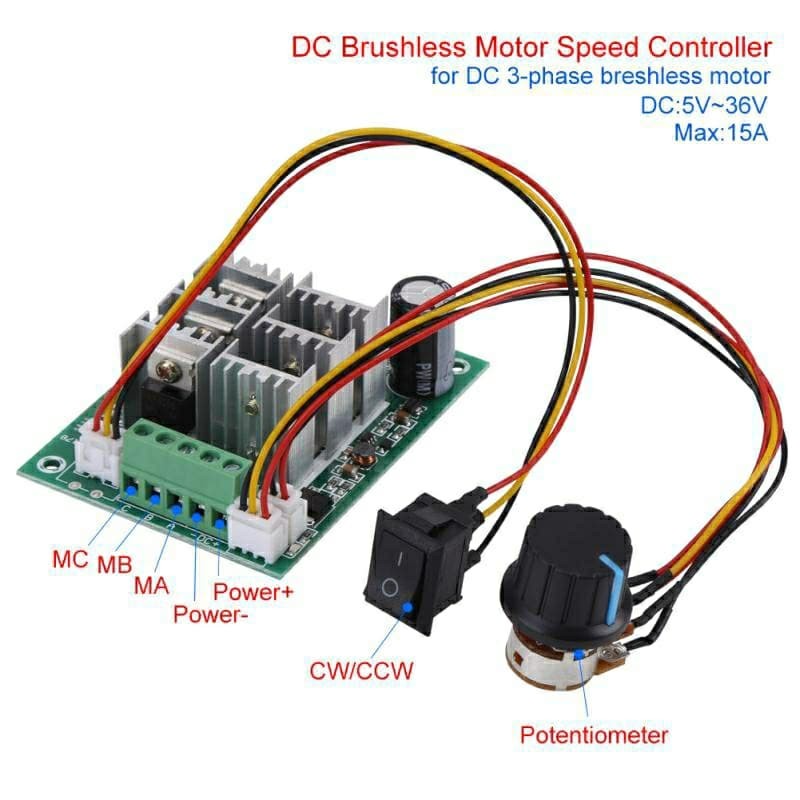

Speed regulation mode : 270 degrees of linear potentiometers (with switch)
Applicable motor :DC three-phase brushless motor
OutPut current:15A
MAX POWER=12V*15A=180W
