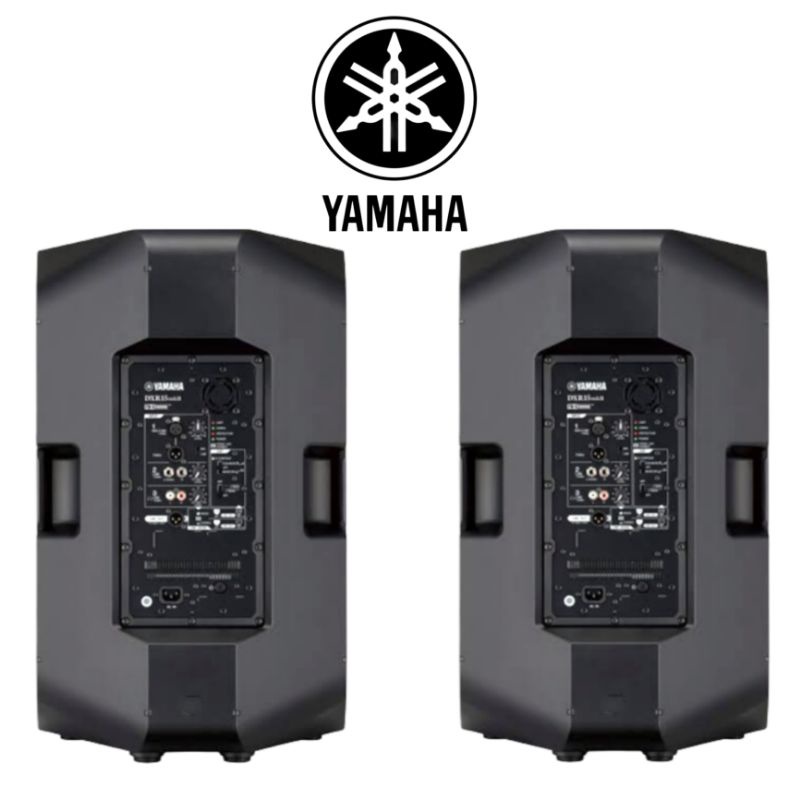

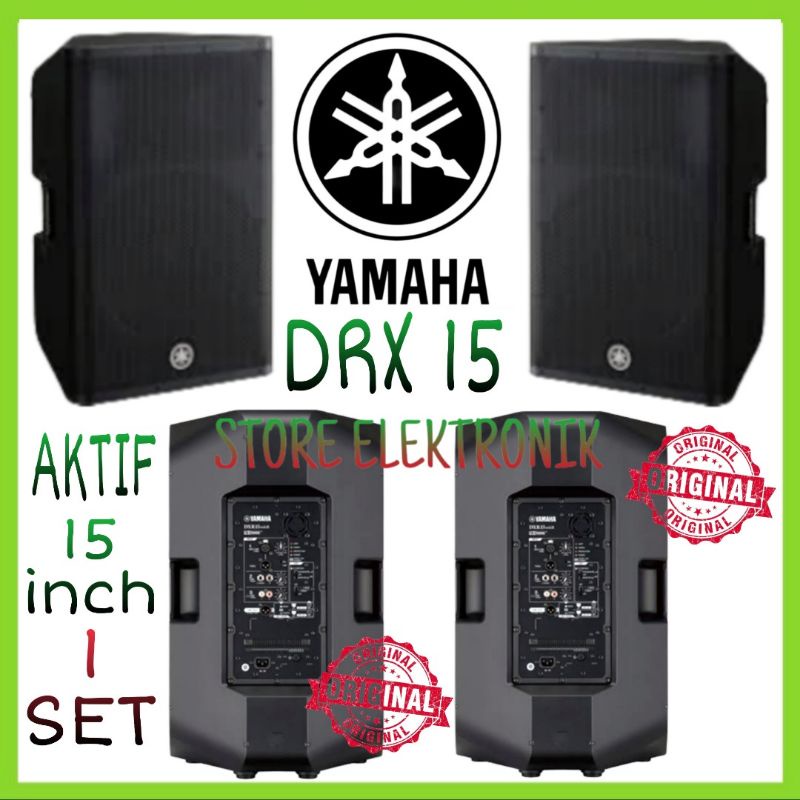

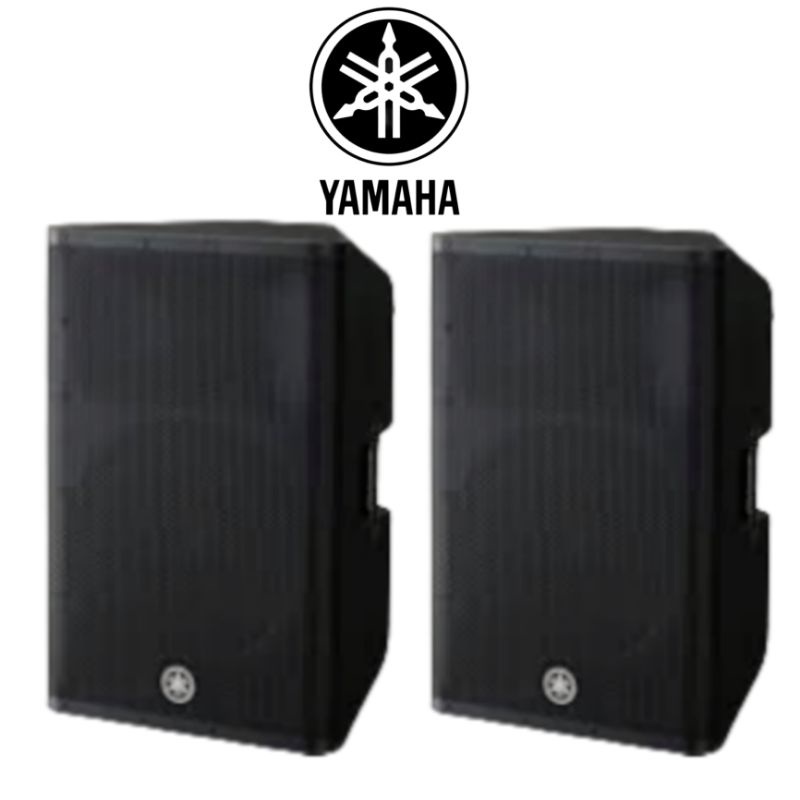

Speaker Yamaha Akitf 15 Inch DRX 15 Original - 1 Set ( 2 Pcs )

Detail Speaker Yamaha Akitf 15 Inch DRX 15 Original - 1 Set ( 2 Pcs )

Speaker Yamaha Akitf 15 Inch DRX 15 Original - 1 Set ( 2 Pcs )



Features Include:
Ultra-Precise 48Bit DSP Processing for High-Definition Sound
Intelligent Dynamic Control for Consistent Clarity at Any Output Level
Extensive DSP Protection Functions for Maximum Output
High-Efficiency 1100W Class-D Amplifiers
Intelligent Onboard 3-Channel Mixer
Superior Components. Unequaled Performance.
Durable, Compact ABS Enclosures
Symmetrical Enclosure Design for Mirror-Mode Floor Monitoring
Dual-Angle Pole Mount Socket
Rigging Points for Standard Eye-Bolts and Optional U-Brackets
Speaker type
12″ 2-way, Bi-amp powered speaker, Bass-reflex type
Speaker type
15″ 2-way, Bi-amp powered speaker, Bass-reflex type
Frequency range (-10dB)
49Hz – 20kHz
Nominal coverage
H
90°
V
60°
Components
LF
Diameter:15″ cone, Voice Coil:2.5″, Magnet:Ferrite
HF
Diaphragm:1.4″, Type: 1″ throat compression driver, Magnet:Ferrite
Crossover
FIR-X tuning™ (linear phase FIR filter)
Output power
Dynamic:1100W (LF: 950W HF: 150W) / Continuous: 700W (LF: 600W HF: 100W)
Maximum output level (1m; on axis)
133dB SPL
I/O connectors
INPUT: XLR-3-31 x1 , INPUT2: Phone x2, INPUT3: RCA PIN x 2, THRU: XLR3-32 x 1 ( Parallel with INPUT 1 ), LINK OUT: XLR x 1
Processors
D-CONTOUR: FOH/MAIN, MONITOR, OFF
Power requirements
100V – 240V, 50Hz/60Hz
Power consumption
110W
Flying and mounting hardware
Top x2, Rear x1 (Fits for M8 x 15mm eyebolts)
Pole socket
35mm with 2-way features (0 or 7 degrees)
Dimensions
W
445mm (17 1/2″)
H
700mm (27 1/2″)
D
380mm (15″)
Net weight
22.5kg (49.6lbs)
Accessories
UB-DXR15
Others
Material: ABS (Matte Finish, Black)
