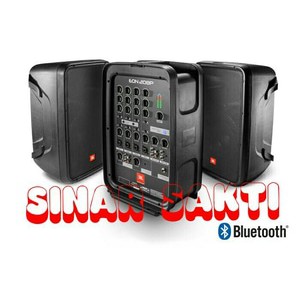

Detail Speaker portable JBL EON 208p eon208p Bluetooth
Portable Speaker JBL EON 208p ( Bluetooth ) Dapat 1bh mic kabel AKG

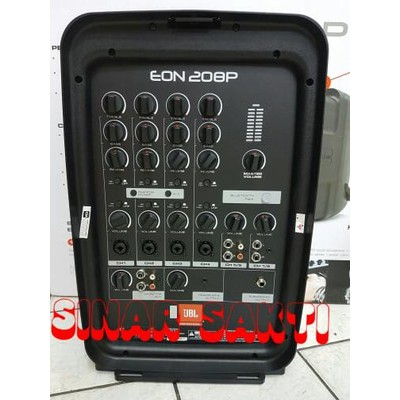

eon208p-system-callouts Specifications
System Type Portable 2-way full-range loudspeakers with powered mixer Maximum SPL Output 121 dB peak Frequency Range (-10 dB) 60 Hz - 20 kHz Frequency Response (+/-3 dB) 70 Hz - 18 kHz AC Input 100-120 V, 220-240 V 50/60 Hz Amp Design Class D System Power Rating 300 W (2x 150 W stereo) Output Connector 2 x 1/4" TS (unbalanced) amplifier outputs Channels 1-4: XLR/1/4" jack combo connectors 5-6: one pair of 1/4" balanced TRS jacks (stereo), and one pair of RCA jacks (stereo) 7-8: one pair of 1/4" balanced TRS jacks (stereo), and a 3.5mm stereo jack Phantom Power CH1 and CH2 have phantom power control and share the same selection switch Hi-Z Selection CH3 has a Hi-Z selection switch used for guitar signal input Mixer Output Connectors Monitor Out: one pair of RCA jacks (stereo), and one pair of 1/4" balanced TRS jacks (stereo) Headphone Out: 3.5mm stereo jack Subwoofer Out: 1/4" balanced TRS jack Treble/Bass EQ Per-channel high- and low-shelf filters; +/- 12dB cut and boost System Limiter On-board DSP limiting LF Driver 1x JBL 8" (203mm) woofer HF Driver 1x 1" Neodymuim black aluminum dome tweeter Coverage Pattern 100 horizontal x 60 vertical Crossover Frequency 2 kHz Crossover Type 2-way passive network, 2nd order filters (12dB cutoff per octave) Enclosure Polypropylene Suspension/Mounting 36 mm pole socket Handles One on top Speaker Grille Powder-coated perforated steel Shipping PackageHxWxD 22.6" (575 mm) x 30.5" (775 mm) x 15.7" (400 mm ################################
