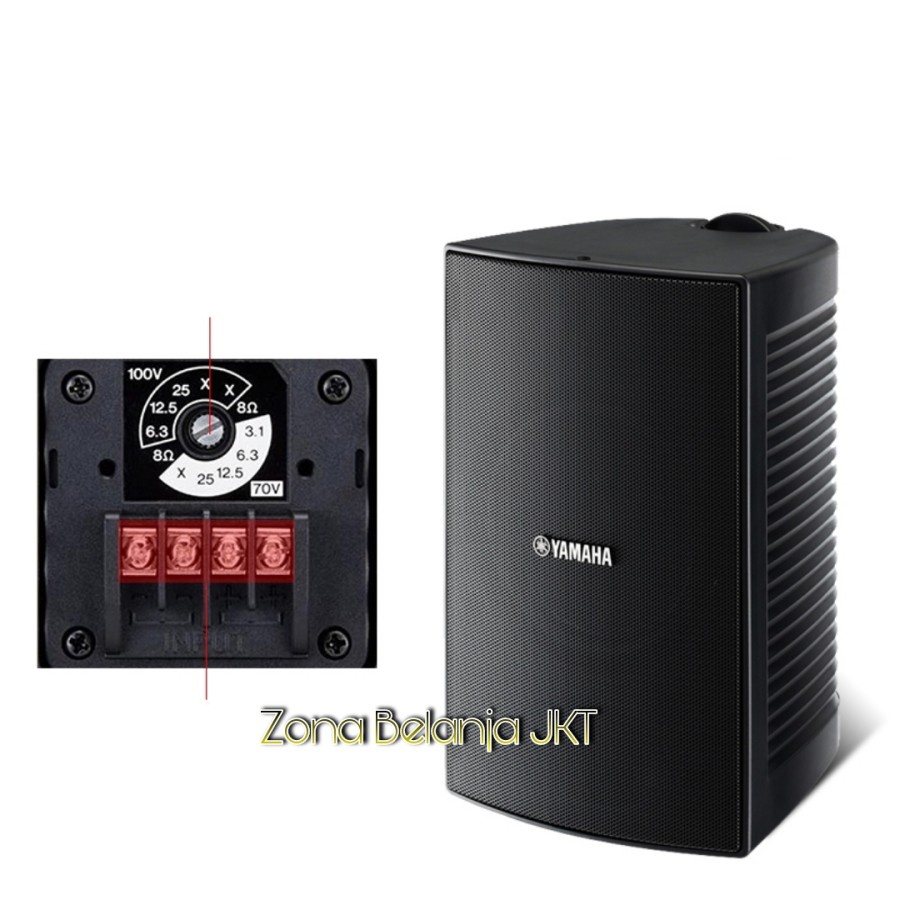

Detail Speaker Pasif YAMAHA VS 6 VS6 6 Inch Wall Speaker Wall Mount Original
SPEAKER YAMAHA VS6 ( 6 INCH ) ORIGINAL
TERDAPAT 2 VARIAN WARNA :
✓ HITAM
✓ PUTIH
( HARGA UNTUK 2 UNIT )
( SUDAH TERMASUK BRACKET SPEAKER )
Spesifikasi Umum
Frequency range (-10dB) : 80Hz - 20kHz
Jangkauan Nominal : (H) 90, (V) 90
Komponen : (LF)6,5"(160mm) cone driver, (HF) 1"(25mm) balanced dome tweeter
Crossover : 15kHz
Power rating : (NOISE) 25W, (PGM) 50W (PEAK) 100W
Nominal impedance : 8
Transformer taps : (100V) 25W, 12.5W, 6.3W ,(70V) 25W, 12.5W, 6.3W, 3.1W
SPL
Sensitivity (1W; 1m on axis) :90dB SPL
Peak (Calculated) : 110dB SPL (100W)
I/O connectors : 2 pairs of barrier strip (parallel-wired * Screw size: M3, Terminal Space: 6mm)
Shape : Rectangular
Cabinet material : HIPS, 94-HB
Hasil Akhir : VS6: Black, VS6W: White
Perangkat keras flying dan mounting : U-bracket (4 x 5.5mm and 2 x 11mm holes)
Waterproof : IEC60529 IPX3 splash proof rating
Dimensi : (W)190 mm (7 1/2"), (H) 308 mm (12 1/8"), (D) 219 mm (8 5/8")
Lihat Lebih Sedikit
Gambar produk
