Detail speaker komponen component ashley transduser ls 184 ls184

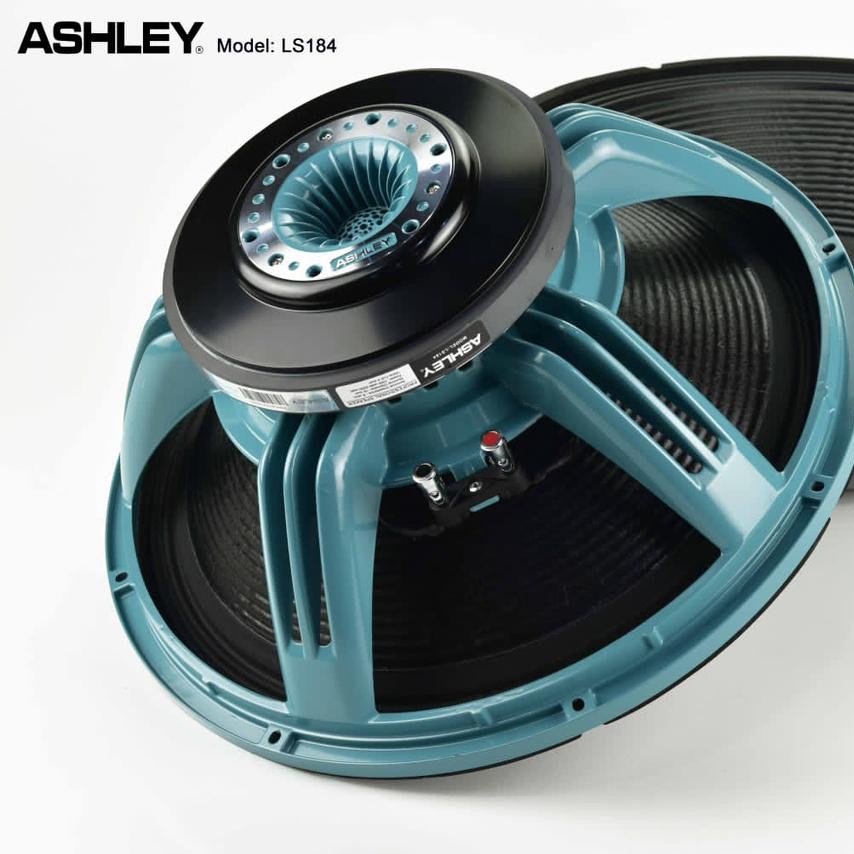

ASHLEY. Model: LS184
ADGLEY

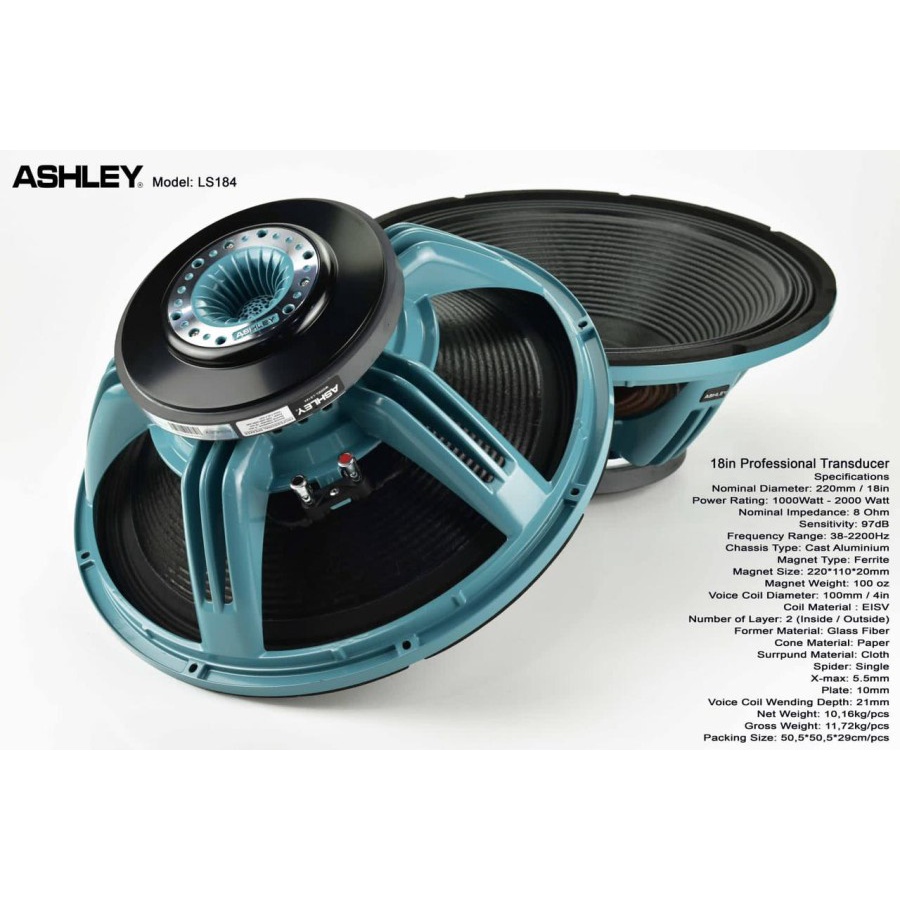

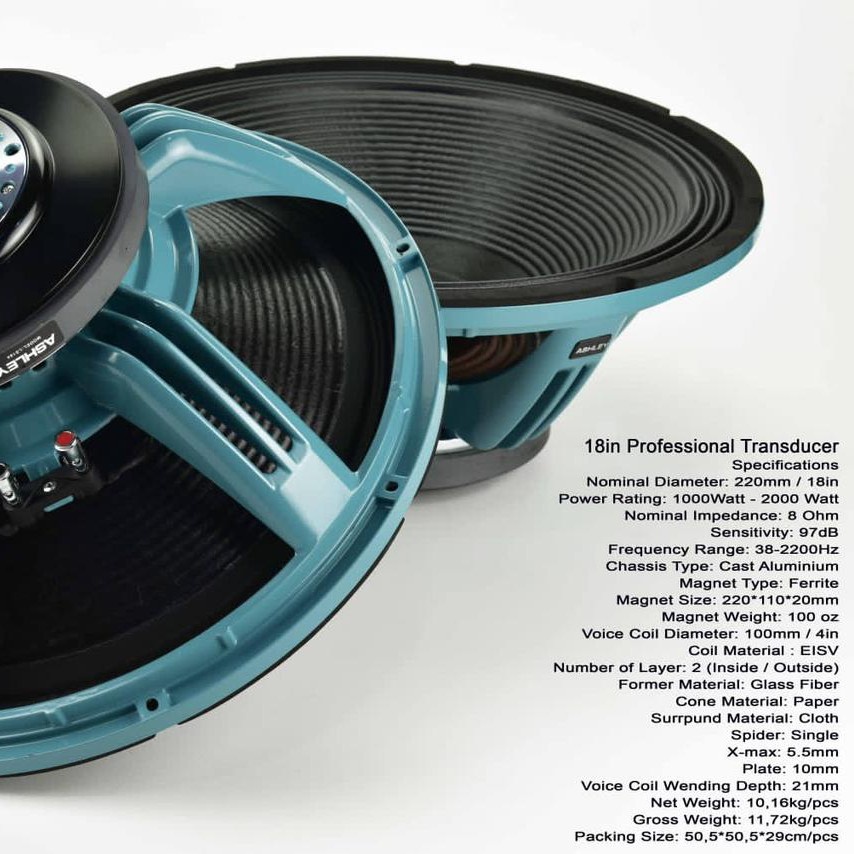

18in Professional Transducer
Specifications
Nominal Diameter: 220mm / 18in
Power Rating: 1000Watt - 2000 Watt Nominal Impedance: 8 Ohm
Sensitivity: 97dB
Frequency Range: 38-2200Hz
Chassis Type: Cast Aluminium
Magnet Type: Ferrite
Magnet Size: 220*110*20mm
Magnet Weight: 100 oz
Voice Coil Diameter: 100mm / 4in
Coil Material: EISV
Number of Layer: 2 (Inside / Outside) Former Material: Glass Fiber
Cone Material: Paper
Surrpund Material: Cloth
Spider: Single
X-max: 5.5mm
Plate: 10mm
Voice Coil Wending Depth: 21mm
Net Weight: 10,16kg/pcs
Gross Weight: 11,72kg/pcs Packing Size: 50,5*50,5*29cm/pcs
