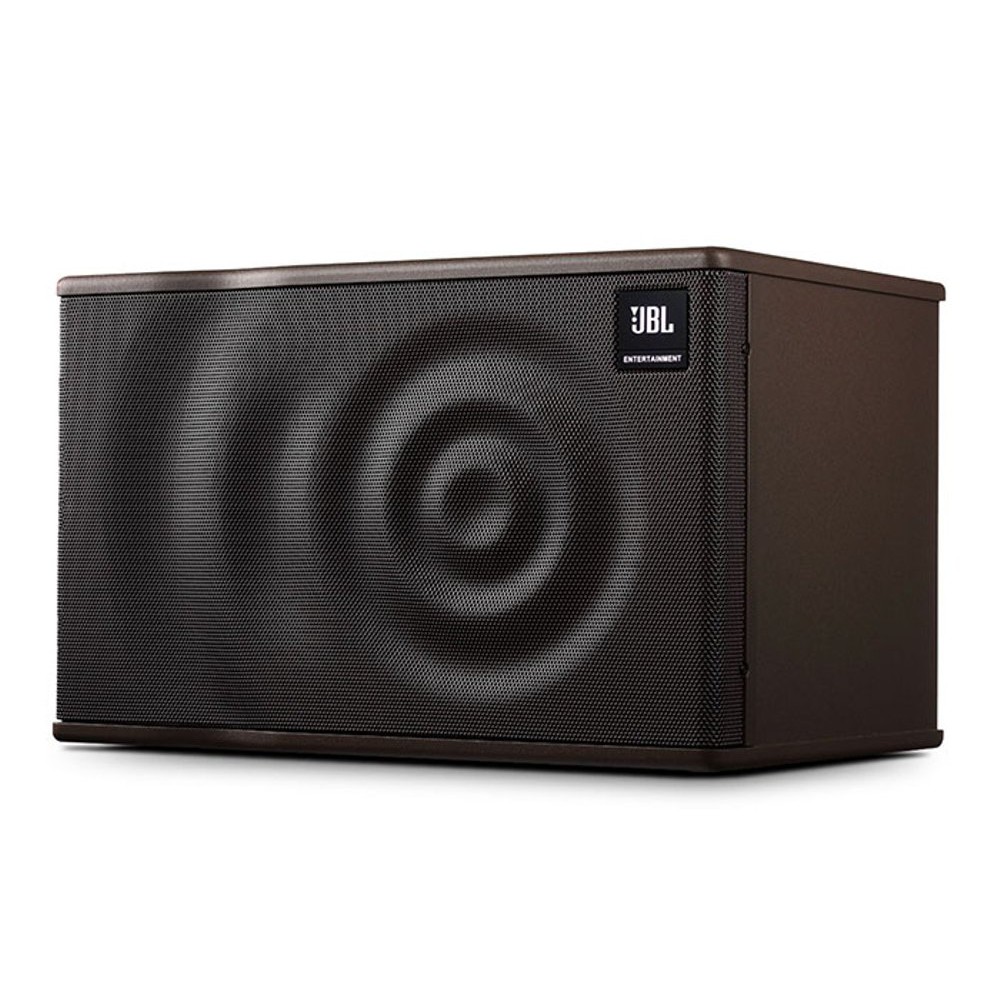

SPEAKER KARAOKE JBL MK 10 ORIGINAL

Detail SPEAKER KARAOKE JBL MK 10 ORIGINAL

10-Inch 2-Way Full-Range Loudspeaker System
MK10 is a 2-way full-range loudspeaker designed by JBL for KTV boxes. It uses a 10 woofer and two 3 tweeters to realize exceptional acoustic performance high power, low distortion, and remarkable electro-acoustic conversion efficiency.

The 10 woofer is specially designed for high power handling and features a non-pressed long fiber pulp cone with foam surround, which provides enough stiffness and reliability while processing the electromagnetic force. A demodulating aluminum ring is fitted to guarantee minimum distortion and power compression. For the high frequencies, two 3 paper cones are installed, in consideration of their light weight and, most importantly, their ability to reproduce high notes bright, smooth and with excellent dispersion.

To optimize power distribution between low and high frequency transducers and for better frequency response, a precision-engineered crossover is utilized. The cabinet to support the tweeters is built in a V-shape so as to further improve the coverage and sensitivity, two factors essential to a karaoke speaker.

MK10 presents itself as a mix of edgy design and high tech through its light-coffee palette, wave-like front grille, and luminous JBL ENTERTAINMENT logo. The light-coffee colored enclosure is constructed of premium quality MDF and finished in durable vinyl wraps. Two high-strength M10 suspension points are provided for bracket mounting. 16-gauge steel is used to build the corrugated grille and to protect the components inside. JBLs PSL (Passive Sound Lighting) Technology is whats behind the glowing JBL ENTERTAINMENT logo and making JBL sound visible.

FEATURES

Specially designed 10 woofer fitted with demodulating aluminum ring for high power handling, low distortion and minimum power compression
High-efficiency 3 paper cone tweeters provides excellent high-frequency response
V-shape cabinet to support the tweeters further improves the coverage and sensitivity
Enclosure constructed of premium quality MDF and finished in durable vinyl wrap
Precision engineered crossover for optimal power distribution and frequency response
Wave-like front grille and light-coffee palette create a stylish appearance
PSL (Passive Sound Lighting) Technology illuminates JBL ENTERTAINMENT logo and showcases JBLs devotion to innovation.

APPLICATIONS
^
Sound reinforcement for karaoke boxes
As satellite speaker for use with subwoofers

SPECIFICATIONS
^
System Type 10, 2-way, bass-reflex
Frequency Range (-10 dB) 48 Hz - 17 kHz
Frequency Response (3 dB) 64 Hz - 14 kHz
Sensitivity (1w@1m) 90 dB
Nominal Impedance 8 Ohms
Maximum SPL 113 dB (119 dB peak)
Power Rating
(Continuous/Program/Peak) 200 W/400 W/800 W
Coverage Pattern 110 100 (H V)
Dimensions (H W D) 290 mm 505 mm 320 mm
11.4 inch 19.9 inch 12.6 inch
LF Driver 1 10 (254 mm) woofer
HF Driver 2 3 (76.2 mm) tweeter
Input Connectors Binding Post
Enclosure Construction Vinyl covered 12mm MDF
