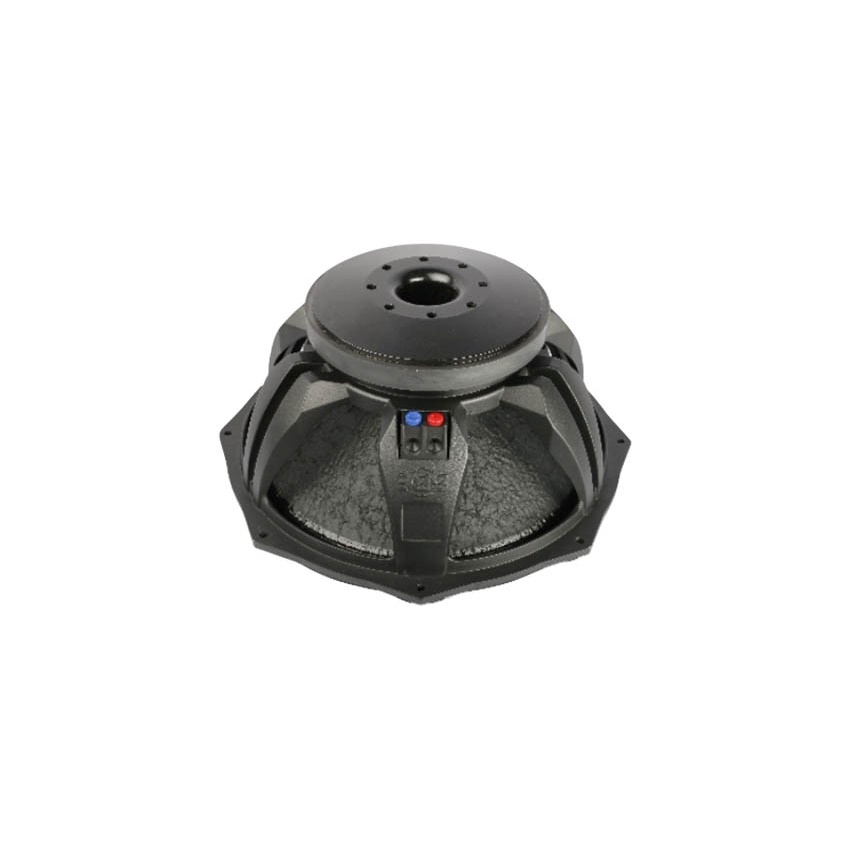

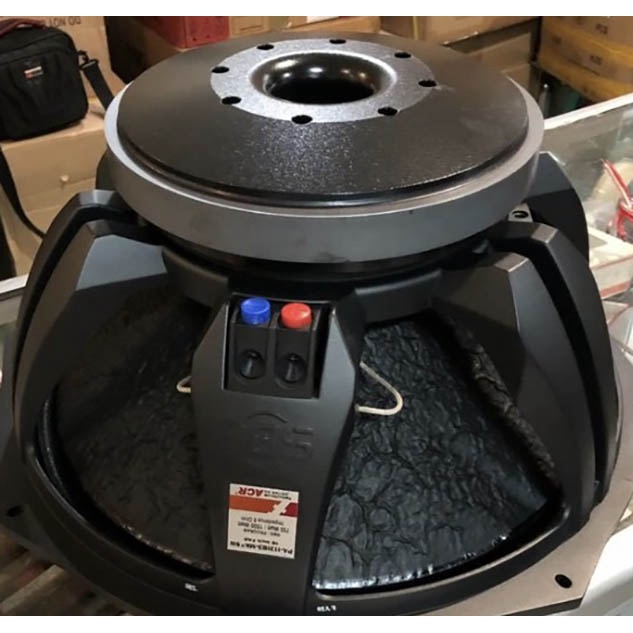

Speaker fabulous 18 inch ACR PA 113183 MK2 SW

Elektronik > Perangkat Audio & Speaker > Speaker > Speaker fabulous 18 inch ACR PA 113183 MK2 SW

Tersedia

Periksa harganya...

Lihat tempat menjual

Toko:pasar genteng elektonikLihat semua produk Audio oleh pasar genteng elektonik

Pengiriman Ekspres
Barang yang diperiksa
Bayar di tempat berlaku
Kualitas, Prestise
Pengembalian produk
Dukung pembuatan faktur

Deskripsi Produk Spesifikasi

Detail Speaker fabulous 18 inch ACR PA 113183 MK2 SW

SPECIFICATION
Nominal Dieameter 18 Inch
Nominal Impedance 8 Ohm
Cone Material Black Paper
Edge Cloth
Maximum Power 1300 Watt
Magnet Weight 153.65 Oz
Frequency Response 36 Hz - 3.9 KHz
Sensitivity 99 dB
Voice Coil Diameter 113 mm

THIELE SMALL PARAMETER
Resonance Frequency Fs 36.3 Hz
DC Resistance Re 6.3 Ohm
Mechanical Factor Qms 10.05
Electical Factor Qes 0.44
Total Factor Qts 0.42
BL Factor BL 25 T/m
Effective Moving Mass Mms 193.2 Gram
Equivalent Cas Air Load Vas 220.3 Liter
Effective Piston Area Sd 1256.6 Cm2
Voice Coil Inductance Le 1.35 mH
Half Space Efficiency Eff 2.29
