Speaker ACR 10 Inch C 1018 HW / Speaker ACR 10" 1018 HW / Speaker ACR 10" 1018 W

Detail Speaker ACR 10 Inch C 1018 HW / Speaker ACR 10" 1018 HW / Speaker ACR 10" 1018 W

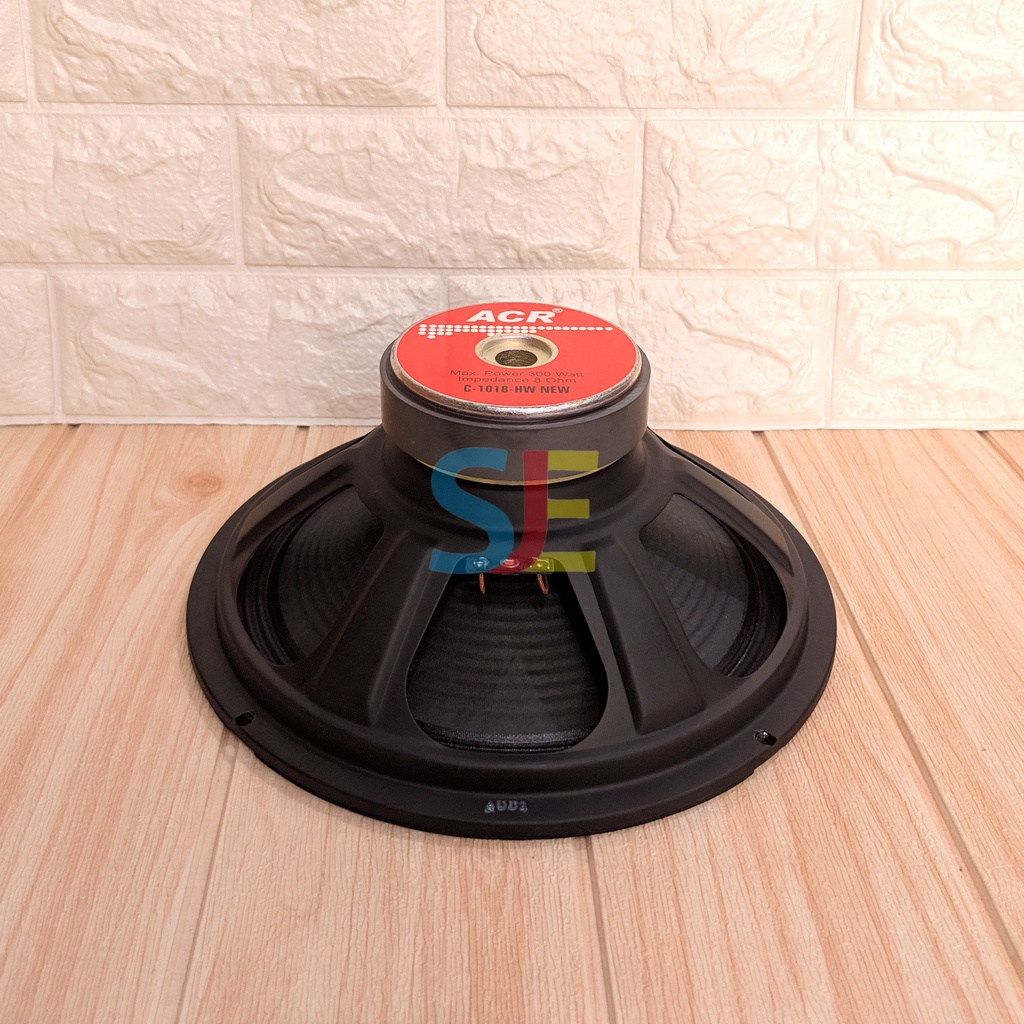

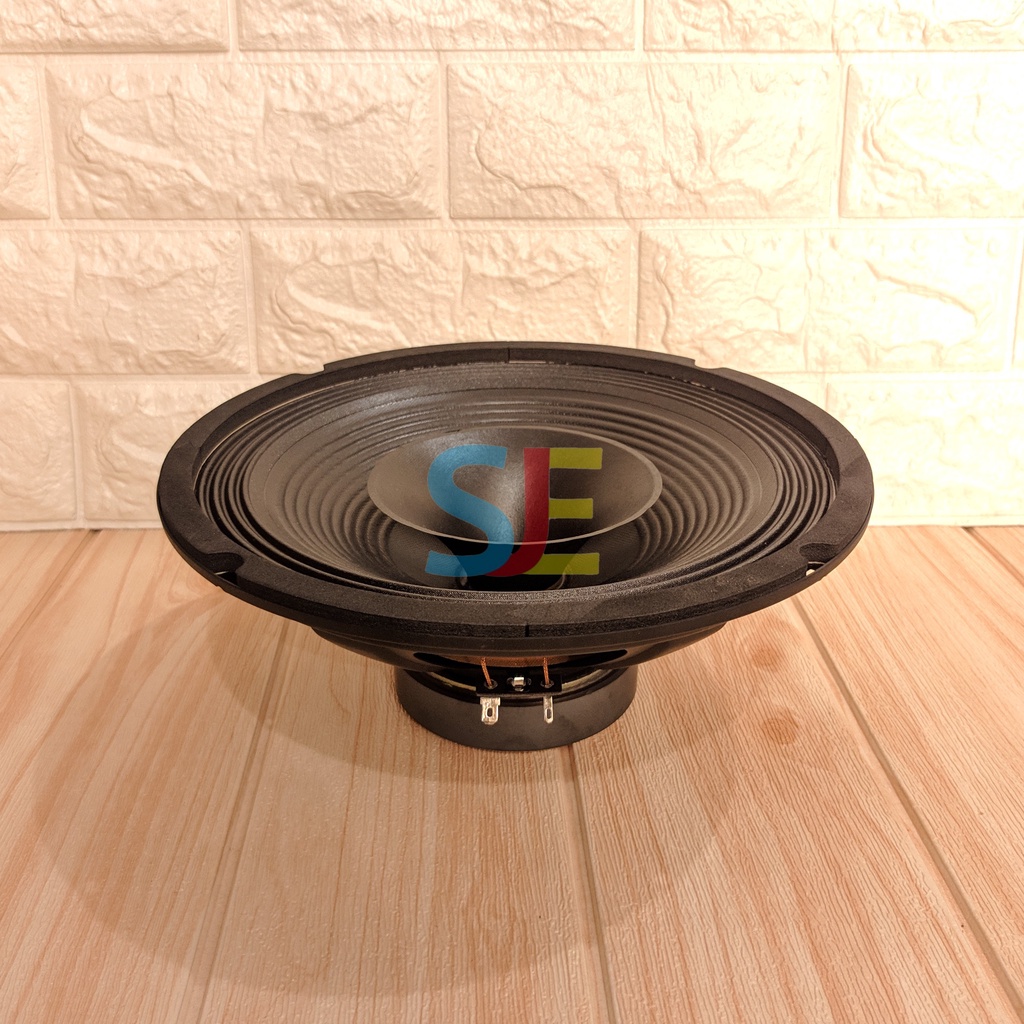

Speaker ACR 10 Inch C 1018 HW (Full Range)

Diameter Speaker (inch/mm)

Impedansi (Ω) 8 Ω

Maximum power (Watt)* 300 Watt*

Lebar daerah frekuensi (Hz) 57 Hz – 15700 Hz

SPL (2.83 V / 1 m) (dB) 93 dB

Diameter cone efektif (mm) 210 mm

Voice coil diameter (mm) 36 mm

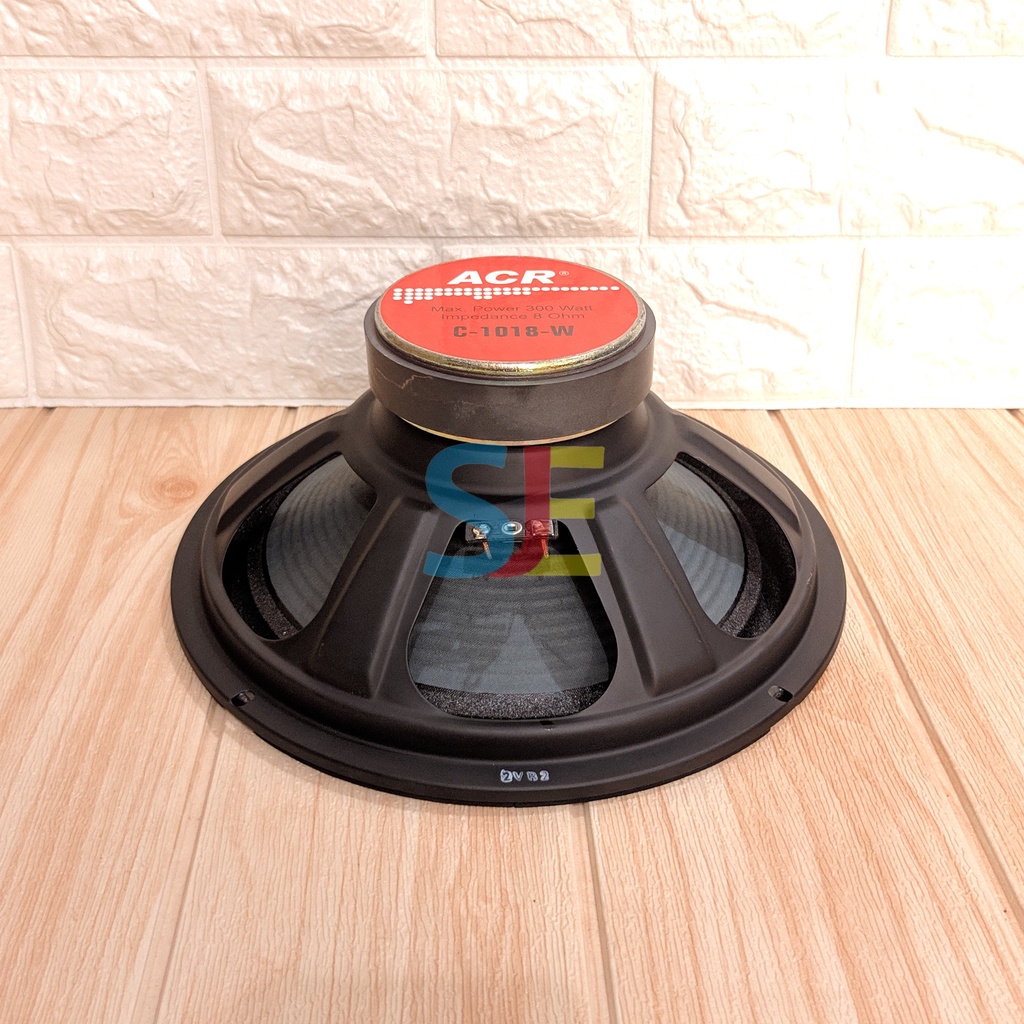

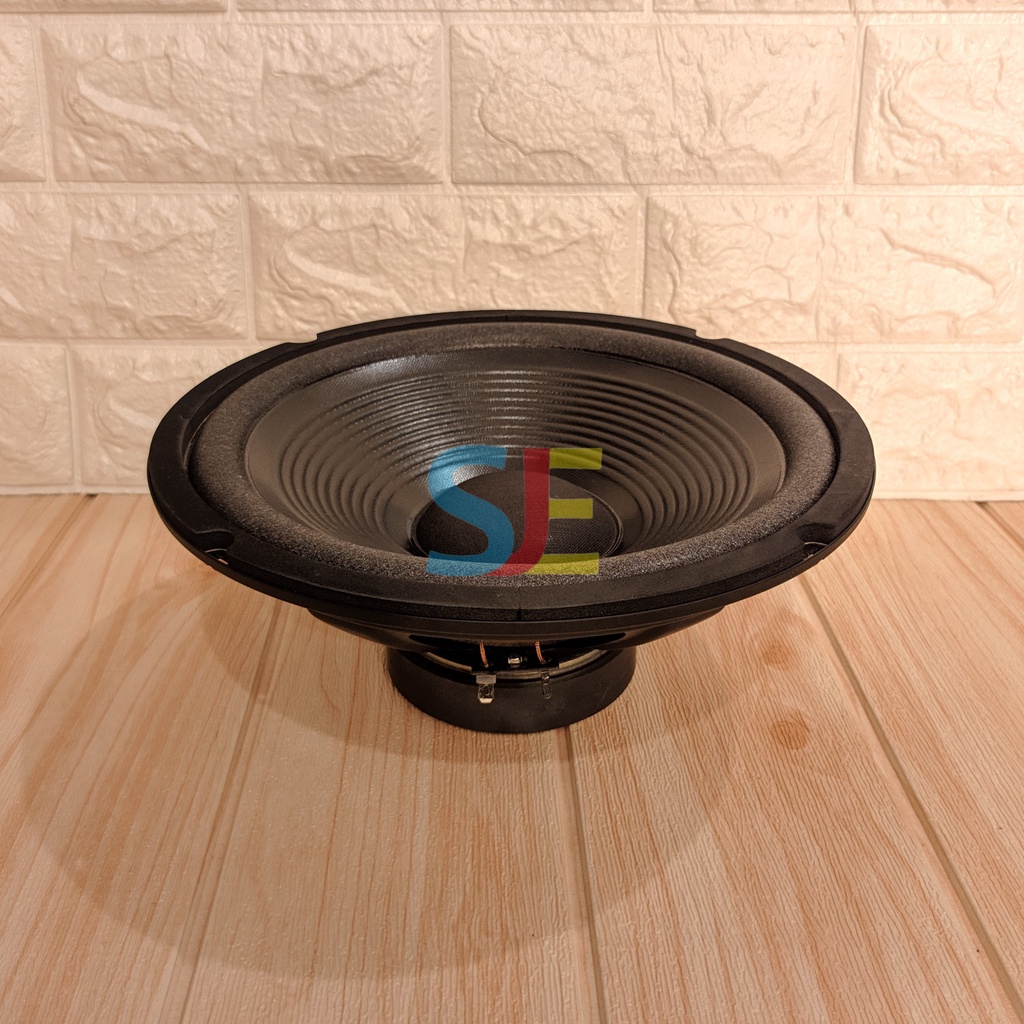

Speaker ACR 10" 1018 Wofer

Nominal Impedance 8 ohm

Cone material Black Paper

Edge Foam

Maximum Power 300 watt

Magnet Weight 17.5 Oz

Frequency Response 42 Hz 5.5 KHz

Sensitivity 1 M / 1 W 90 dB

Voice Coil Diameter 1.3 inch / 3.55 cm

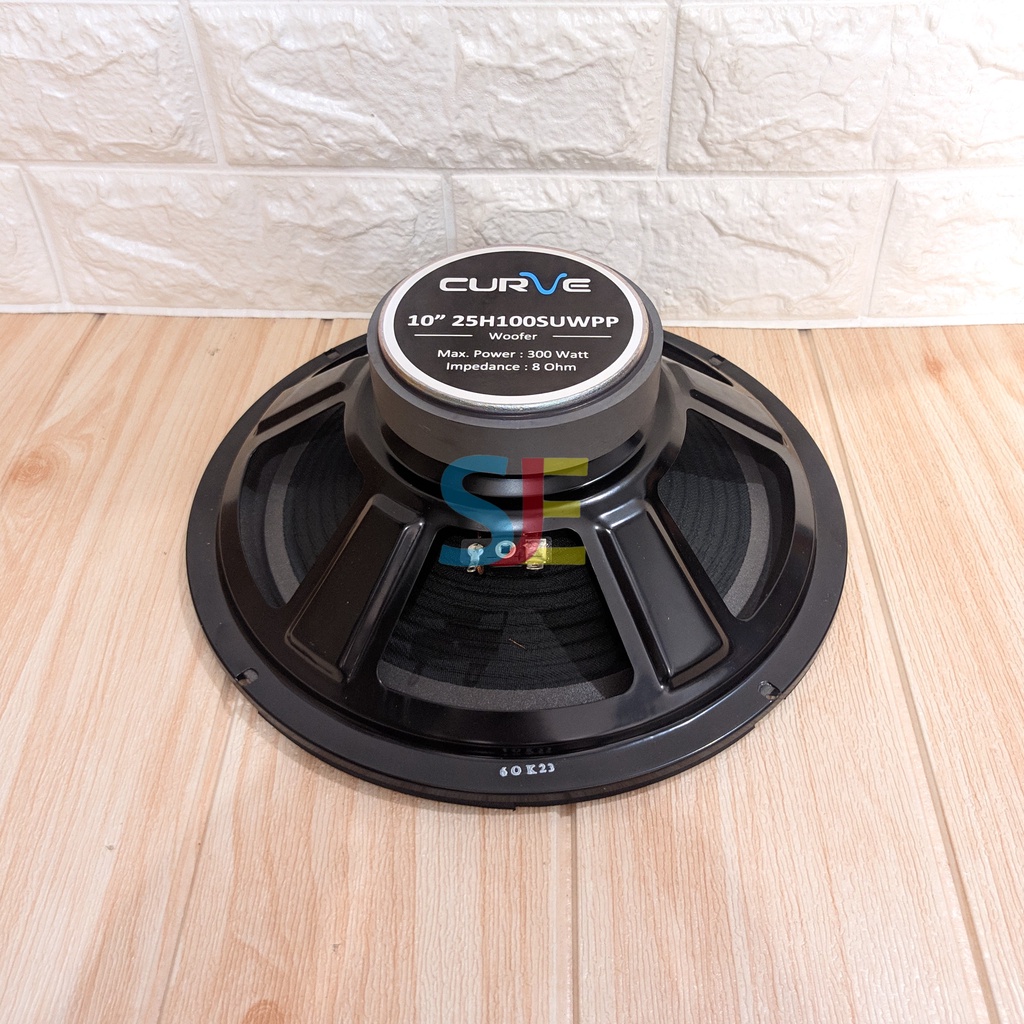

Speaker Curve 10" 25H100SUWPP (PLS)

Diameter Speaker (inch/mm) 10 inch / 254 mm

Impedansi (Ω) 8 Ω

Max Power (Watt)* 300 Watt

Lebar daerah frekuensi (Hz) 45 Hz – 6800 Hz

SPL (2.83 V / 1 m) (dB) 90 dB

Diameter cone efektif (mm) 211 mm

Voice coil diameter (mm) 25.42 mm



Sebelum Pengiriman Barang Selalu Dicek Fungsi dan Fisik, serta kami berikan tambahan packing bubble wrap secara GRATIS.

Selamat Berbelanja di SumberJaya Elektronik-

Gambar produk
