Sound Level Meter Data Logger USB Alat Ukur Suara Data Logger
Dengan memory yang cukup besar untuk menyimpan data yang kemudian bisa di olah dan di analisa di komputer.

This Digital Sound Level Meter is an instrument to measure Sound Pressure Level in decibels (dB).
This meter is featured with wide measuring range (30 ~ 130 dB), Bar-Graph Indication, A/C frequency weighting, Fast / Slow response and Maximum Hold function.
Moreover, the meter can connect to PC for Data Logging with optional USB cable.

This is a portable, easy to use and handy instrument for sound quality control in office, home, school and construction site. The meter has wide range of applications such as noise pollution studies, research and other industrial use.

Features:
Sound level Range:30 to 130dB (Low=30-100dB ,High=60-130dB) Auto Ranging
Frequency weighting: A/C
Fast/Slow time weighting selection
32000 Reading Internal Memory (Data record function)*
Max Hold function
High accuracy

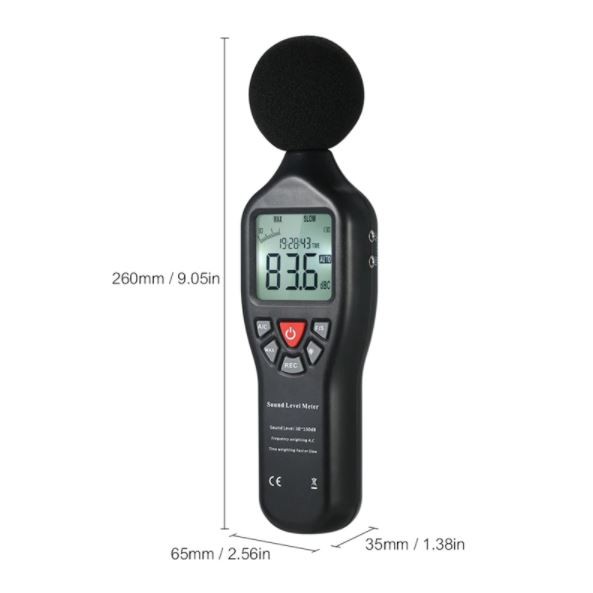

Bar graph display

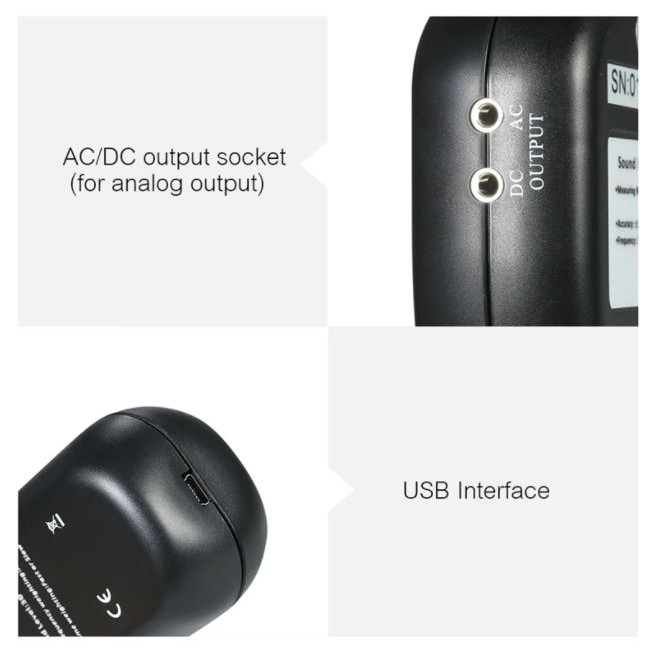

AC & DC analogy signal output are available connecting to frequency analyzer level recorder, FFT analyzer and graphic record.
White Backlight
Over / Under alert function*
Time display
Auto-off function setup
Low Battery Alert
Tripod Mount (Tripod not included)

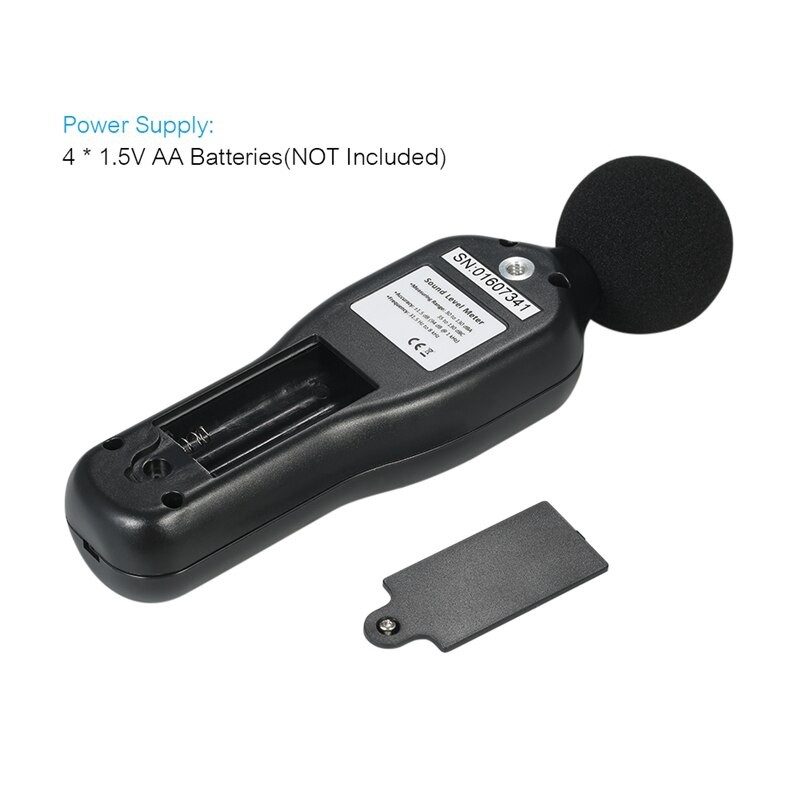

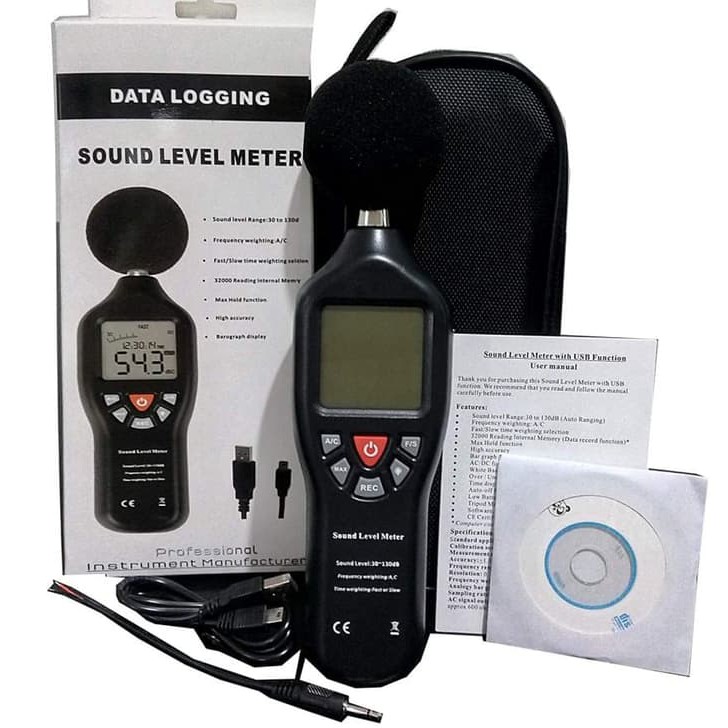

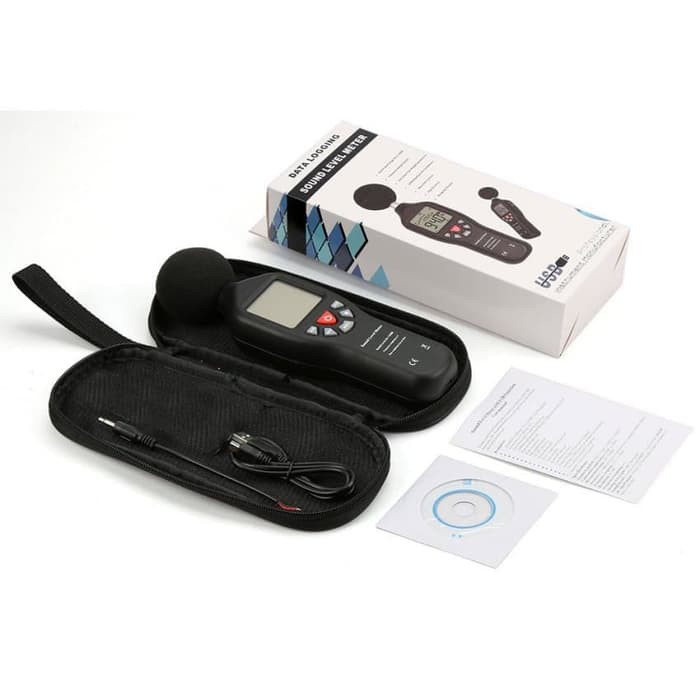

Software, USB Lead, DC 6V Cable, Case & Batteries included
CE Certified & RoHS Compliant
* Computer connection required

Specifications:
Calibration sound source: 94dB @ 1kHz
Measurement range: 30~130dBA
Accuracy: +1.5dB(reference sound pressure standard,94dB@1KHz)
Frequency response: 31.5~8.5KHz
Resolution: 0.1dB
Frequency weighting: A/C
Analogy bar graph: 2dB/1 Bar graph
Sampling rate: 2 times/second (FAST), 1 time/second (SLOW)
AC signal output: 4Vrms/ full barograph, output impedance is approx 600 ohm
DC signal output: 33mV/dB
Dynamic characteristic: FAST (high speed) / SLOW (low speed)
Data storage quantity: 32000 readings

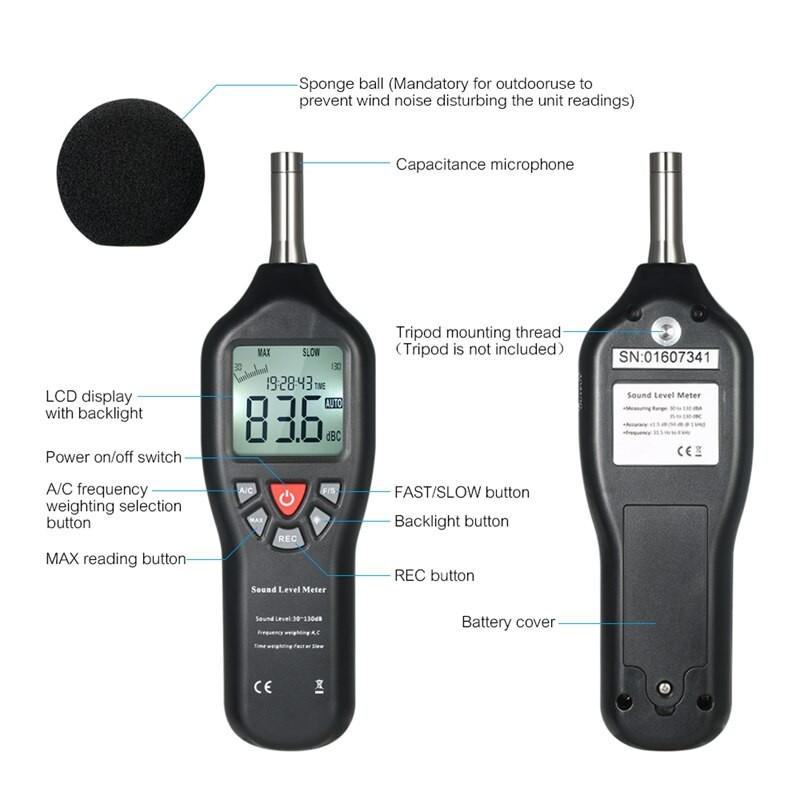

Gambar produk
