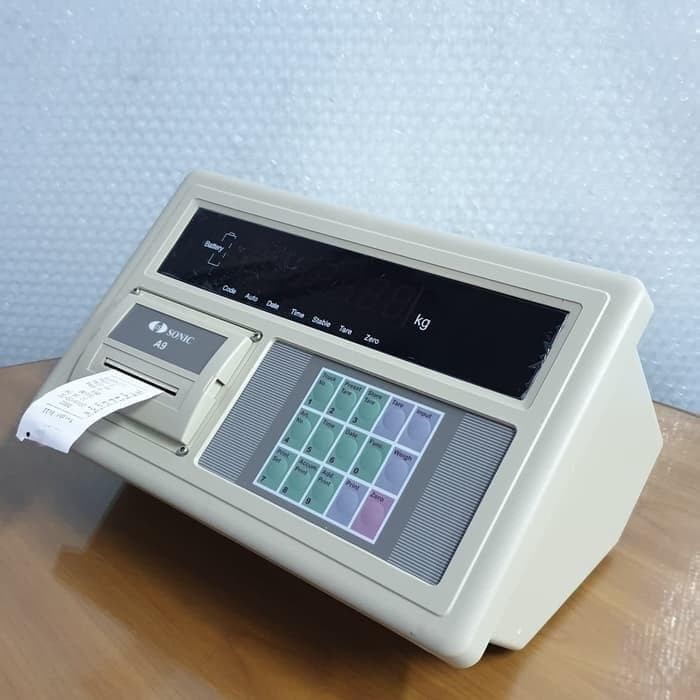

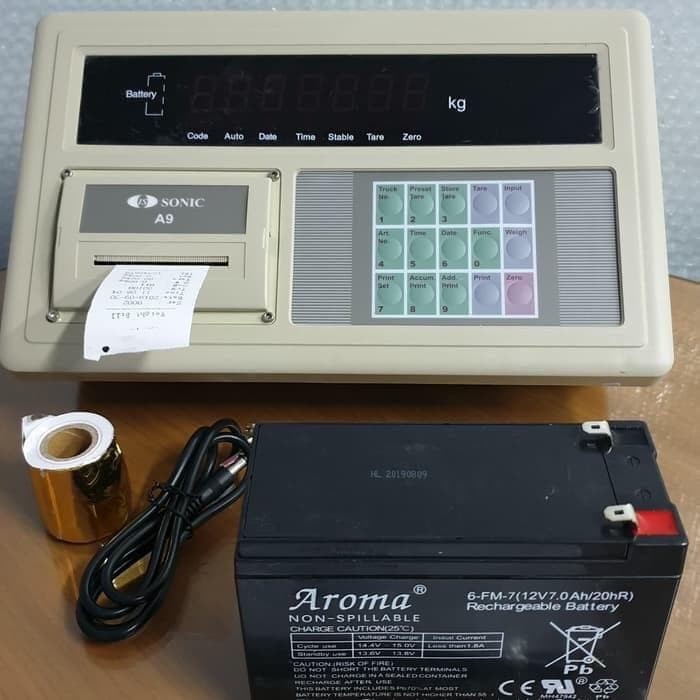

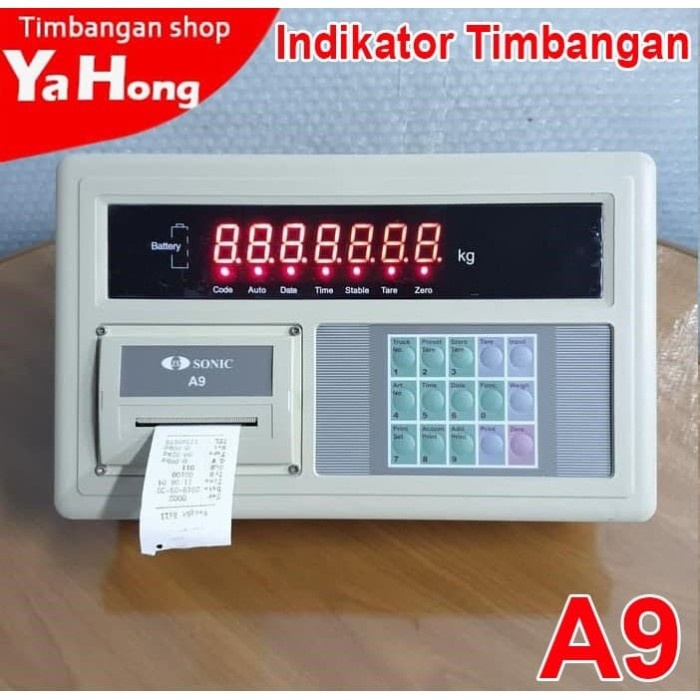

SONIC Indikator Timbangan Digital A9 bisa untuk custom

Detail SONIC Indikator Timbangan Digital A9 bisa untuk custom

𝙎𝙋𝙀𝙎𝙄𝙁𝙄𝙆𝘼𝙎𝙄 : SONIC A9P INDICATORS

Accuracy : Class III, n=3000
Conversion : type of A/D
Input signal range : -16 mV 18 mV
Conversion speed : 10 times/second
A/D resolution code : 1 million code
Calibration : All operation made by keys
Excitation power : DC, 5V, able to connect with 8pcs of 350 load cells or 16pcs of 700load cells
Load cell connection method 6 wire method, long wire auto compensation
Display : 7 LED digit, 7 status indicating lights, 3 battery indicating lights.
Display circulation : 100ms
Division : 1/2/5/10/20/50/100 optional
Clock : Can display year/month/day, hour/minute/second, auto reap year and moth
Number keys : 0~9
Function keys : 15 (10 of them are share with number keys for combine application)
Material for keys : Light touch type of pellicle
Scoreboard connection interface : Serial output
Transmission method : Current loop/ RS232 signal
Transmission data type : 11 bytes
Baud rate : 600
Transmission distance : 30m
Serial communication : interface
Transmission method : RS232C/RS422(optional)/ RS485(optional)
Baud rate : option 600/1200/2400/4800/9600
Transmission data format : 10 bytes: 1 byte is start, 8 data bytes (ASC II code), 1 byte is stop.
Transmission distance : RS-232 : 30m, RS-422/RS-485 : 1200m
Standard parallel output interface : To connect with TpuP 16 micro printer; wide line printer like M800 KX-P1121, KX-P1131, +, LQ1600K; POS58, T58D thermal micro printer. Built-in printer (for A9+P) Printing system: dot-matrix (96 dots each line), adopts M-150 II printing head or TpuP-16B printing head.
Printing paper : standard blank paper, width : 44.5 0.5mm, thickness: 0.07mm, paper roll external diameter less then 50mm
Life span for Printing head : 0.5106 lines
Printing ribbon : blue ribbon are installed in the removable ribbon box, its life span is 1106 lines
Data saving : 1000 units of

Gambar produk
