Detail Solid State Relay Fotek SSR-75 DA

Fotek Solid State Relay Module 3-32V DC Input 24-480VAC SSR-75DA 75A

Model: SSR-75DA Solid State Relay 75A DC to AC.
Input: 3-32V DC
Load: 24-380V AC.

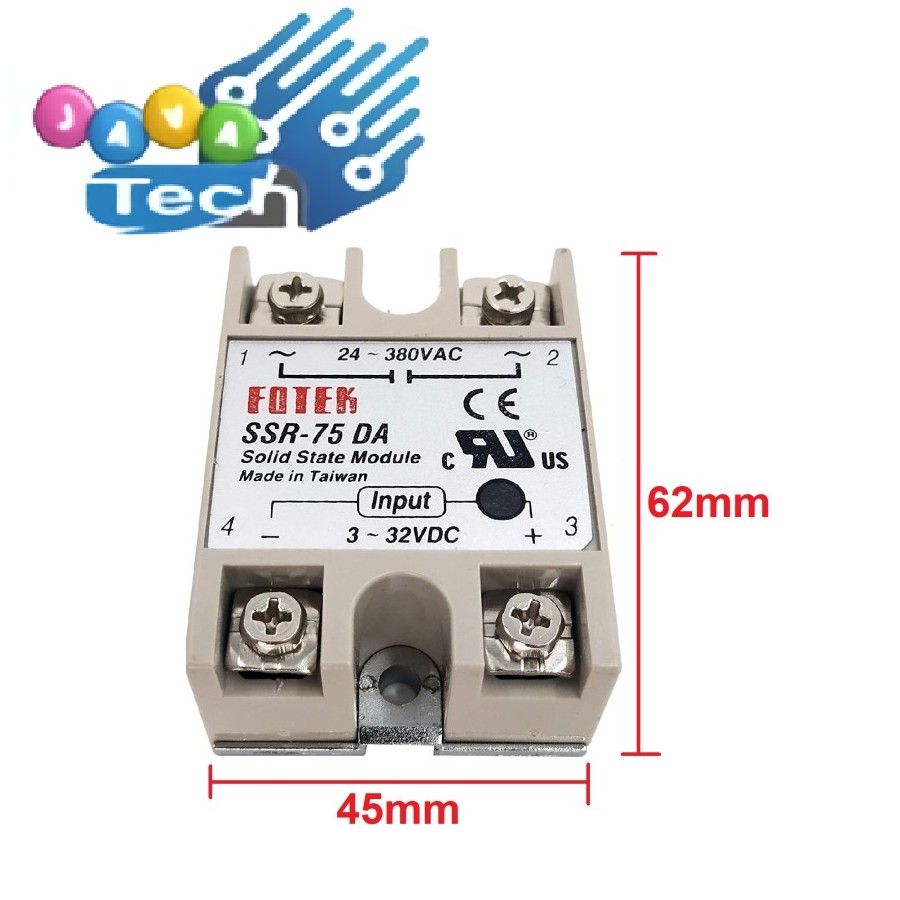

Item size: 60*45*23mm
Package include: 1x Solid State Relay

Features

1. High Reliability by S.M.T & TQC ( Surface Mounting Technology )
2. High Isolation over than 500Mohm / 500VDC
3. High Dielectric over than 2.5KV
4. Low Enable Current less than 7.5mA / 12VDC CMOS IC or TTL Compatible
5. Low EMI / EFI & Surge by Zero Cross Trigger Method
6. High Surge Current Duration Over 10 Times of Rated Current / One Cycle
7. High Surge Current Duration by Snubber Circuit

Gambar produk

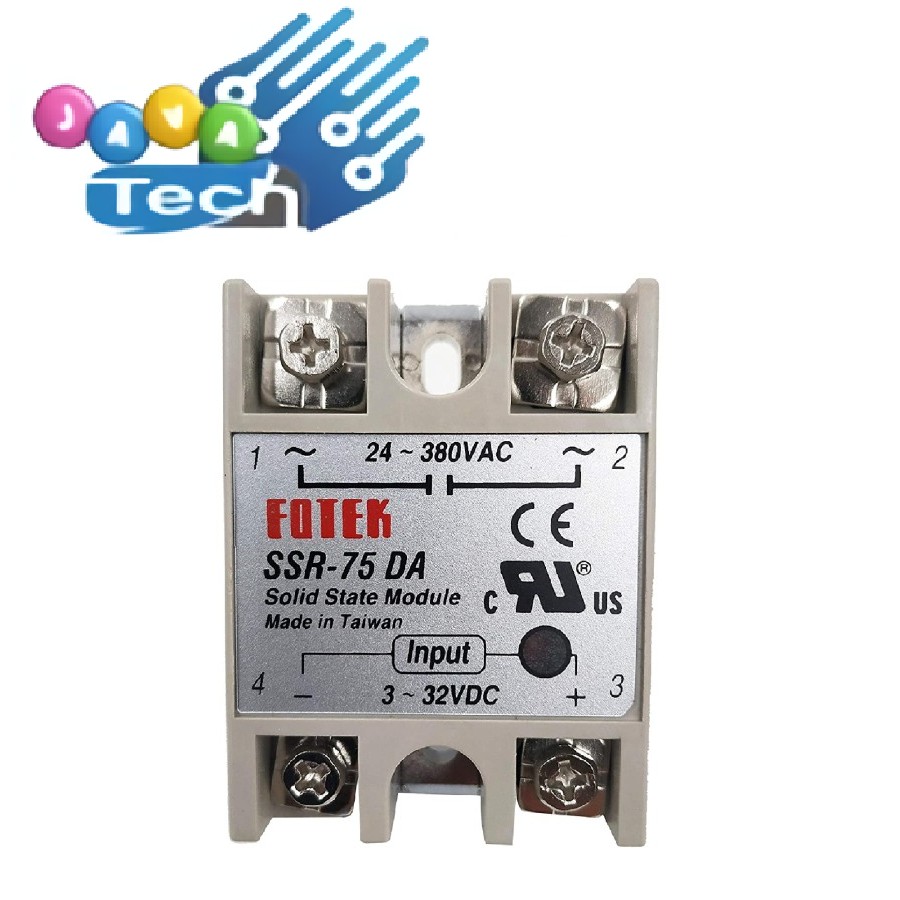

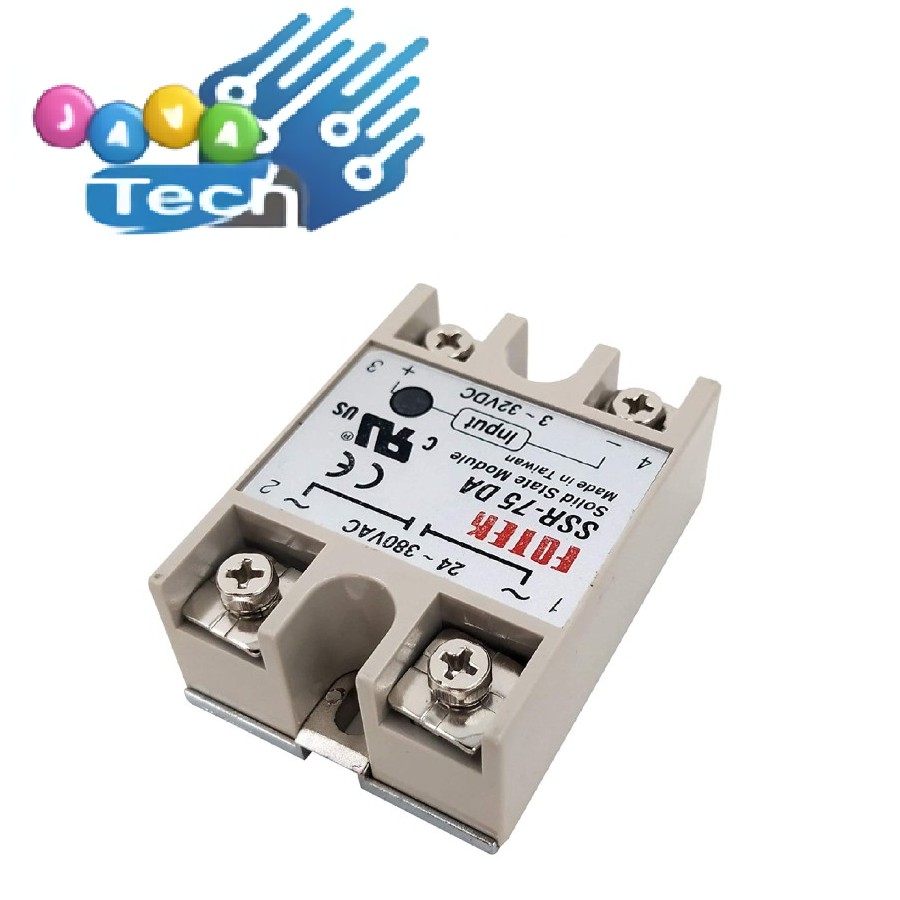

Solid State Relay Fotek SSR-75 DA
