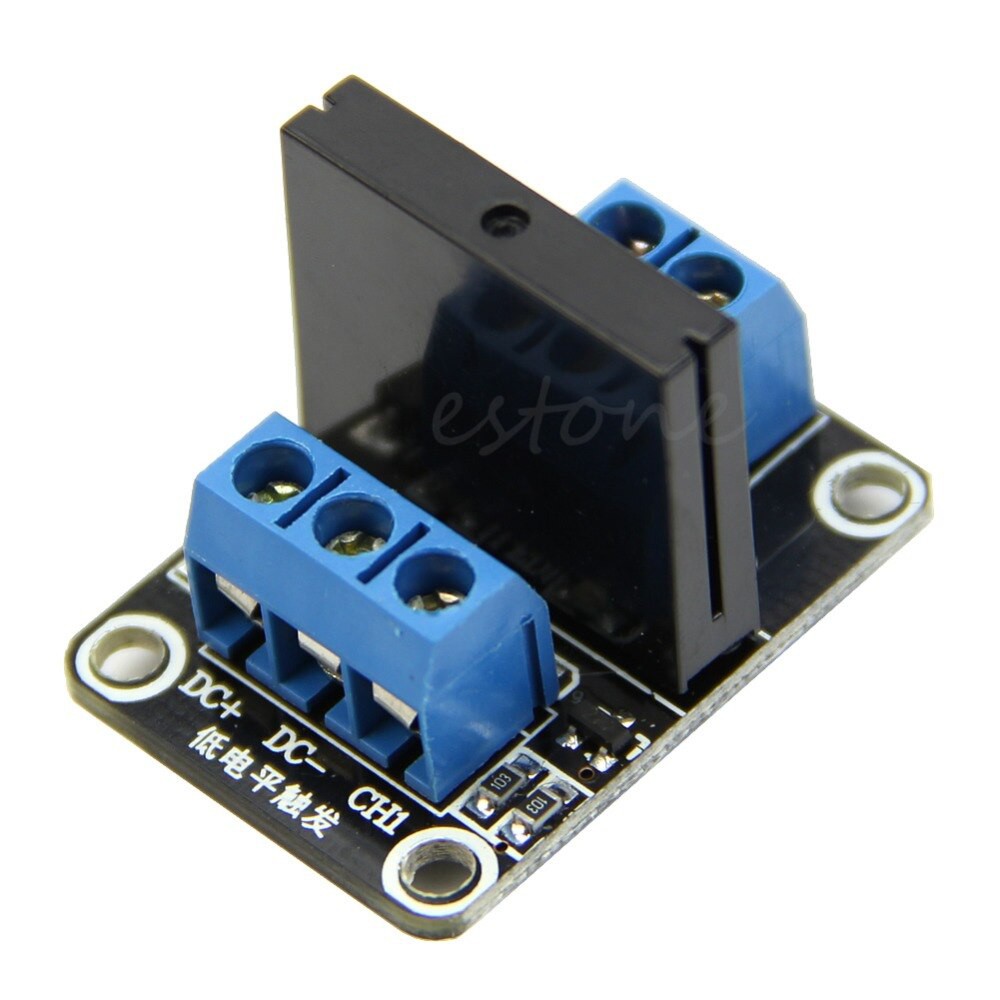

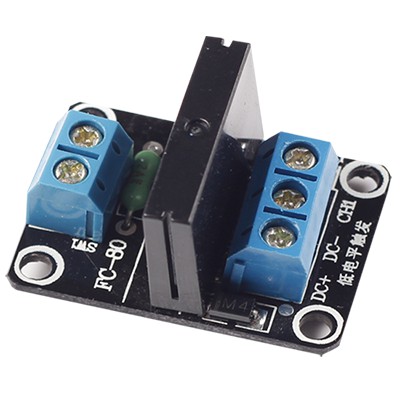

Solid State Relay 1ch 5V Low Level Trigger

Komputer & Aksesoris > Komponen Desktop & Laptop > UPS & Stabilizer > Solid State Relay 1ch 5V Low Level Trigger
Tersedia
Periksa harganya...
Lihat tempat menjual
Toko:Java.TechLihat semua produk Komputer & Aksesoris oleh Java.Tech
  • Pengiriman Ekspres
  • Barang yang diperiksa
  • Bayar di tempat berlaku
  • Kualitas, Prestise
  • Pengembalian produk
  • Dukung pembuatan faktur
DeskripsiSpesifikasi

Detail Solid State Relay 1ch 5V Low Level Trigger

Deskripsi Solid State Relay 1ch 5V Low Level Trigger

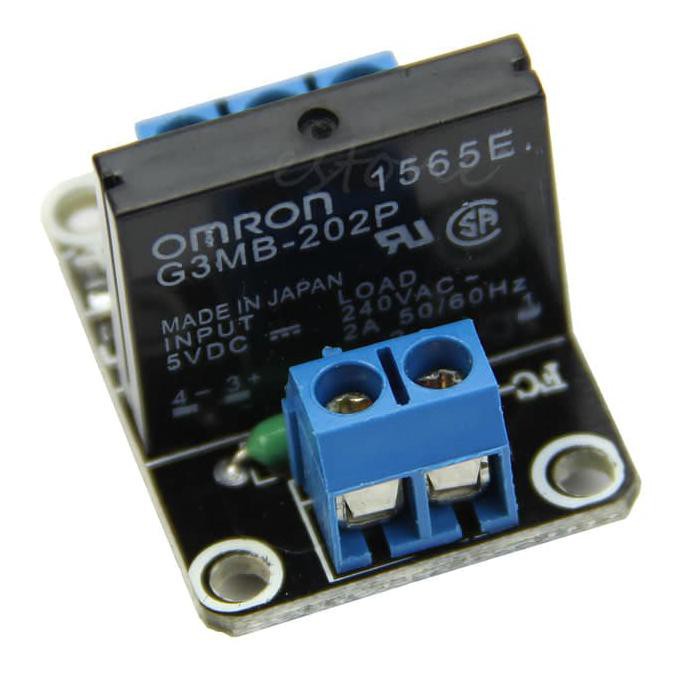

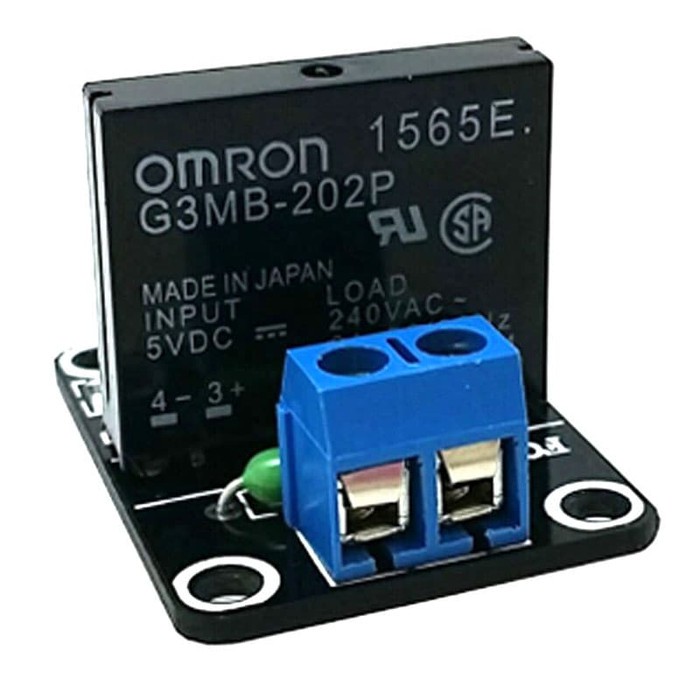

5V Omron solid state relay 240V 2A, output with resistive fuse 240V 2A

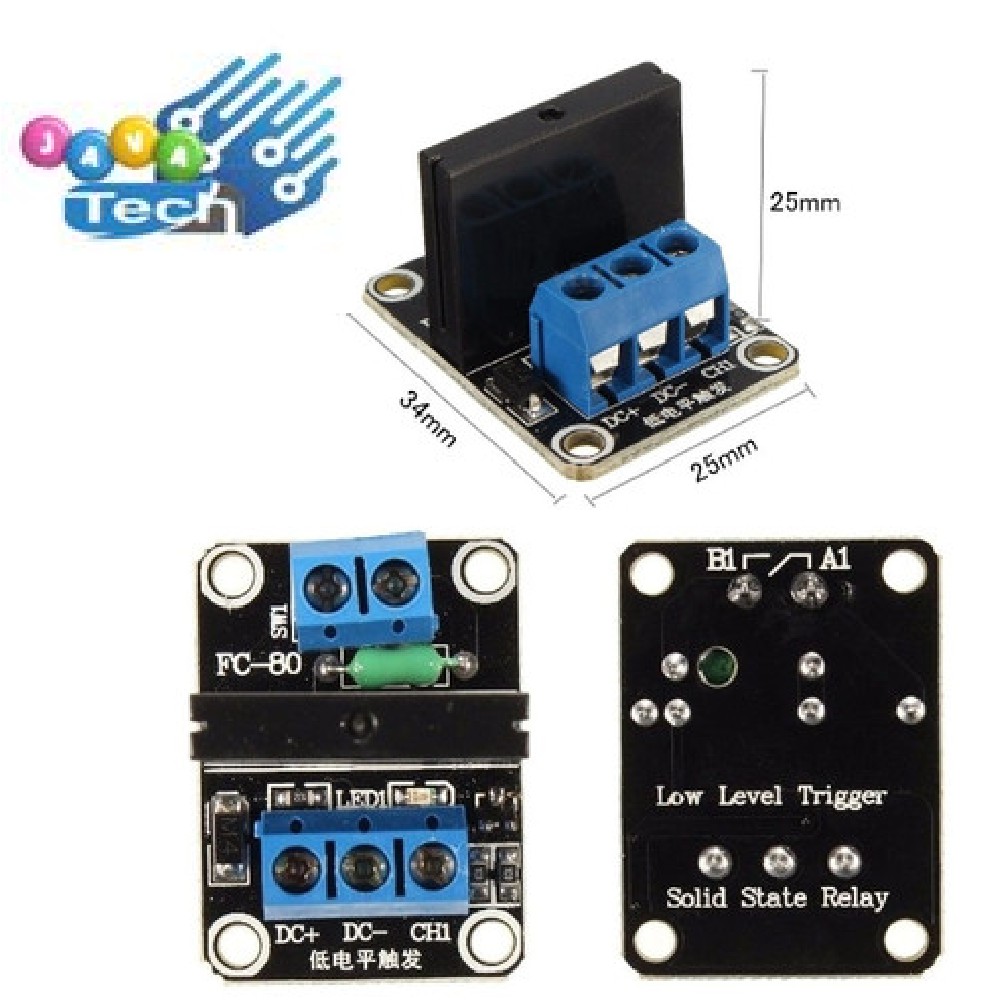

Size: 25*34*21mm/0.98*1.35*0.82”
Input Power: 5V DC (160mA)
Input control signal voltage:
(0-1.5V state low relay ON)
(2.5-5V state high relay OFF)
Module interface:
Input section:
DC +: positive power supply (by relay voltage power supply)
DC-: connect power negative
CH: relay module signal to trigger the end (low level to trigger effective)
Voltage version 5V
static current 0mA
working current 12.5mA
trigger voltage 0-1.5V
trigger current 2mA
Quantity:1pc

Gambar produk

Solid State Relay 1ch 5V Low Level Trigger
Solid State Relay 1ch 5V Low Level Trigger
Solid State Relay 1ch 5V Low Level Trigger
Solid State Relay 1ch 5V Low Level Trigger
Solid State Relay 1ch 5V Low Level Trigger
Solid State Relay 1ch 5V Low Level Trigger
Solid State Relay 1ch 5V Low Level Trigger
Solid State Relay 1ch 5V Low Level Trigger
Solid State Relay 1ch 5V Low Level Trigger
Solid State Relay 1ch 5V Low Level Trigger
Solid State Relay 1ch 5V Low Level Trigger
Solid State Relay 1ch 5V Low Level Trigger
Lihat lebih banyak informasi produk
