Solenoid Valve Electric Pneumatic Air Valve DC 12V

Detail Solenoid Valve Electric Pneumatic Air Valve DC 12V

PERHATIAN:
Port Size: R 1/4" NPT Female Port (R = 1/4" atau D = 1/2")
Port Size: R 1/8" NPT Female Port (R = 1/8" atau D = 1/4")

Specifications:
Model Number: 2V025-1/4-12VDC
Valve Type: 2 Way Normally Closed (Valve opens with energized)
Port Size: R 1/4" NPT Female Port
Coil Voltage: DC12V
Service Media: Air, Gas, Liquid, Water
Operation Model: Direct Acting
Flow Model: Uni-Directional
Flow Rate: 0.23Cv (Fluid Flow)
Response Time: Less than 50 ms
Operating Pressure: 1.2Mpa(can be operated at 0 PSI (Vacuum))
Operating Temperature: -10 to 80 °C
Coil Power: 4W

Material:
Body Material: Aluminum
Seal Material: NBR (Buna N)
Armature Tube Material: Brass
Plunger & Spring Material: Stainless Steel

Package included:
1 x Solenoid Valve

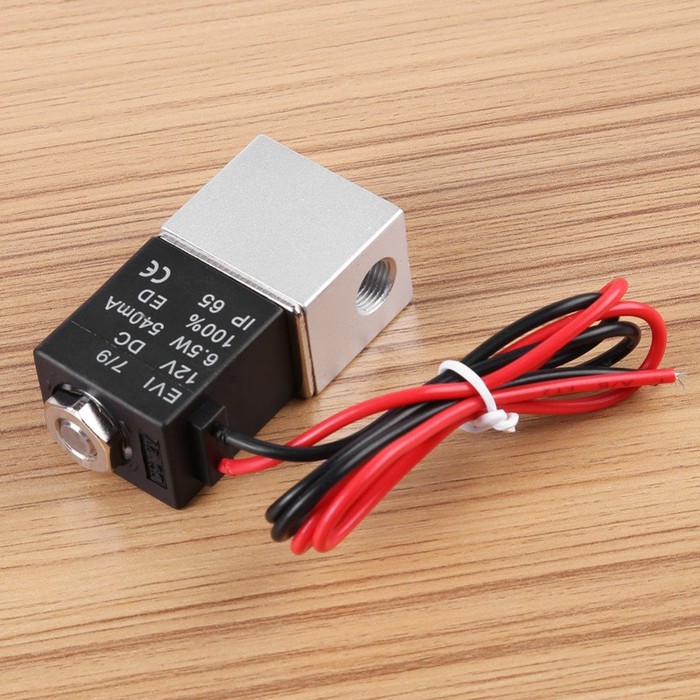

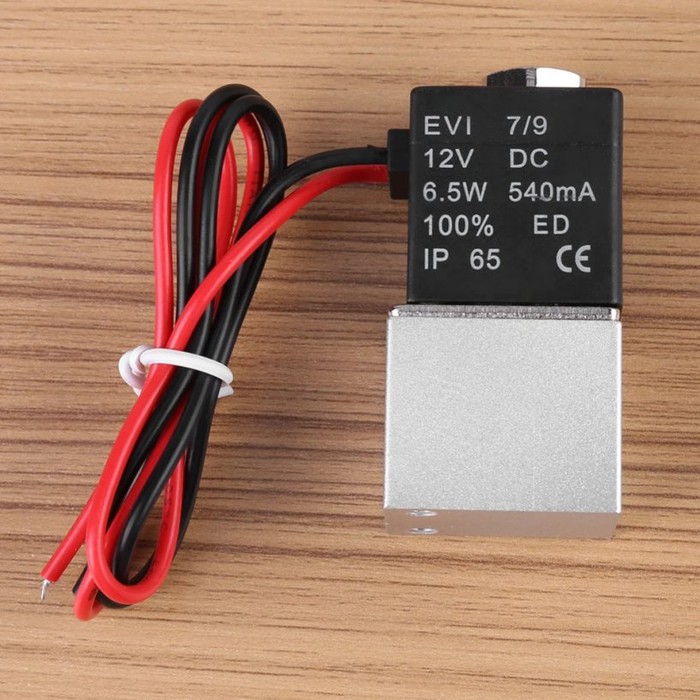

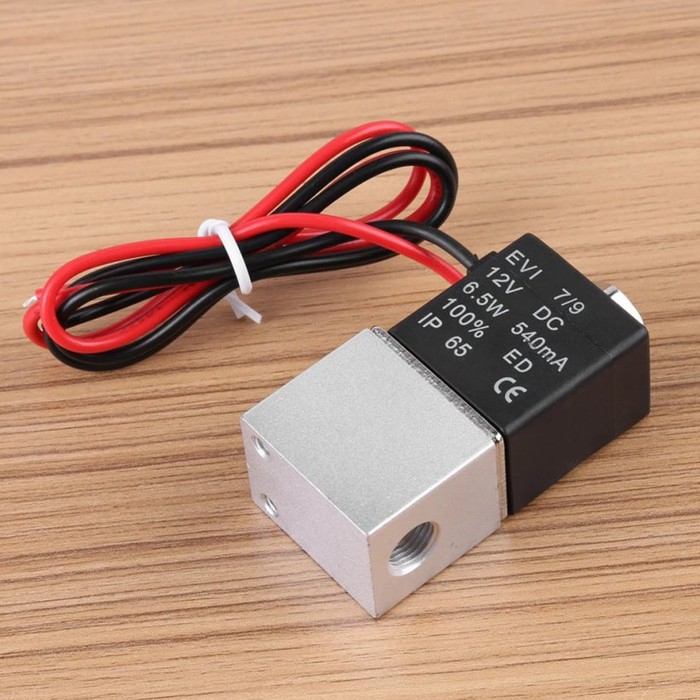

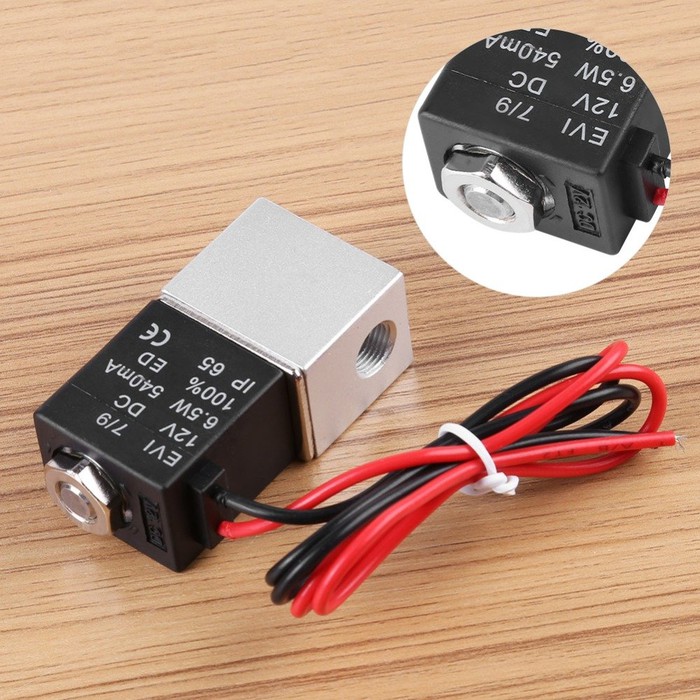

Gambar produk
