Solenoid valve 4V210-08 220VAC TCPC
Deskripsi singkat
Perlengkapan Rumah > Perkakas > Kompresor Udara > Solenoid valve 4V210-08 220VAC TCPC
- Pengiriman Ekspres
- Barang yang diperiksa
- Bayar di tempat berlaku
- Kualitas, Prestise
- Pengembalian produk
- Dukung pembuatan faktur
Produk Terkait
Detail Solenoid valve 4V210-08 220VAC TCPC
TCPC 4V210-08 (Socket dengan Lampu LED)2 Position and 5 way
Effective area :16mm2(CV=0.89)
Port size :Air inlet=Air outlet=G1/4" for 4V210-08
Fluid:40 micron filtered air
Operation :Inside pilot type
Operating pressure: 0.15~0.8MPa
Temperature :5~50 C
Allowable voltage : 10% of rated voltage
Coil insulation &protection grade Class F.IP65
Highest action frequency:5 cycle/second
Shortest excitation time :0.05 second
Voltage: DC24V AC110V AC220V (No extra char
DC12V, AC24V (with extra charge)

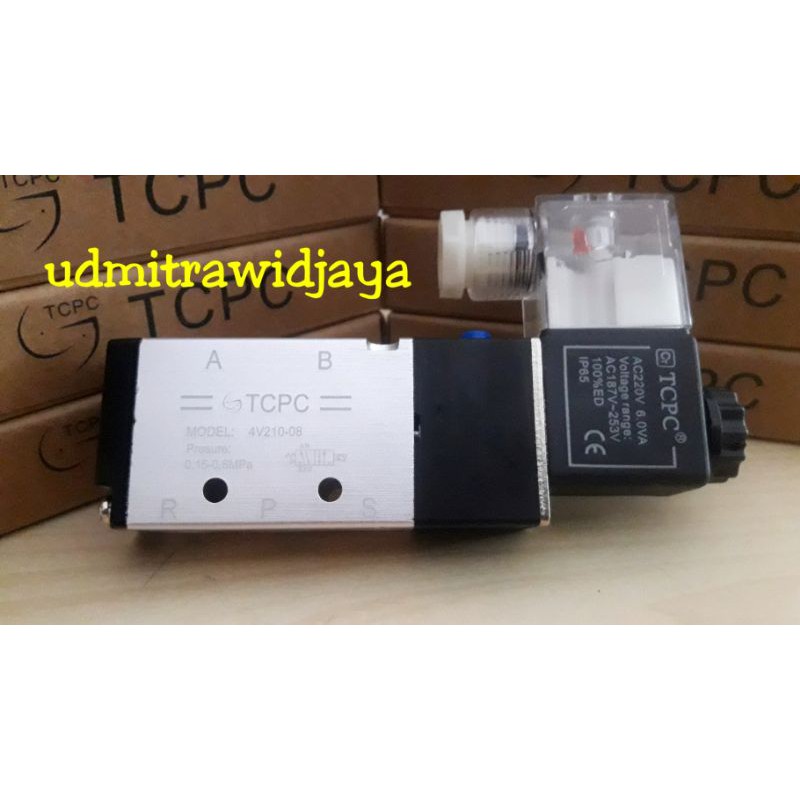

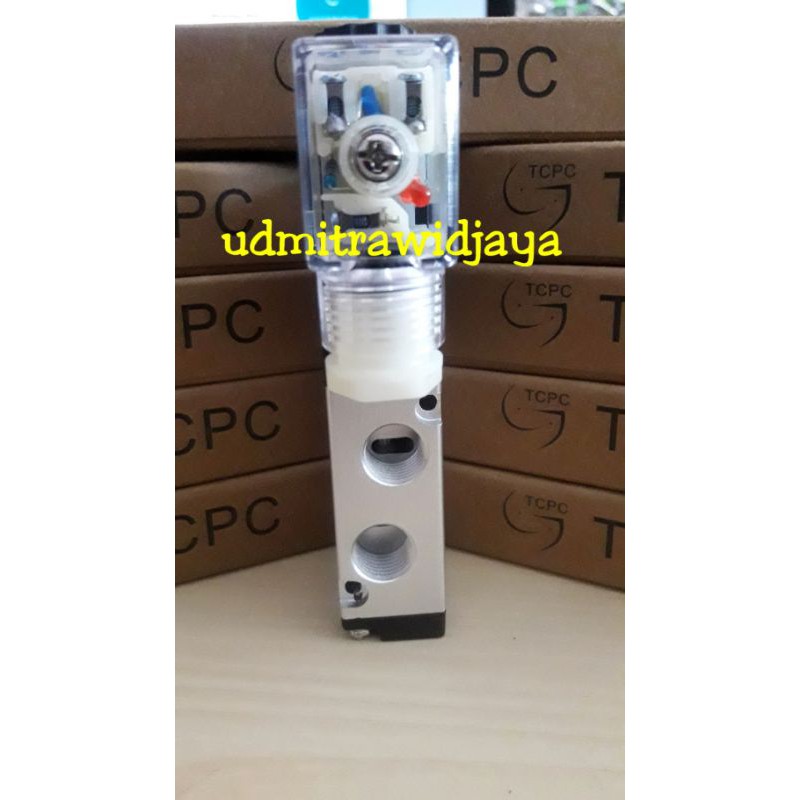

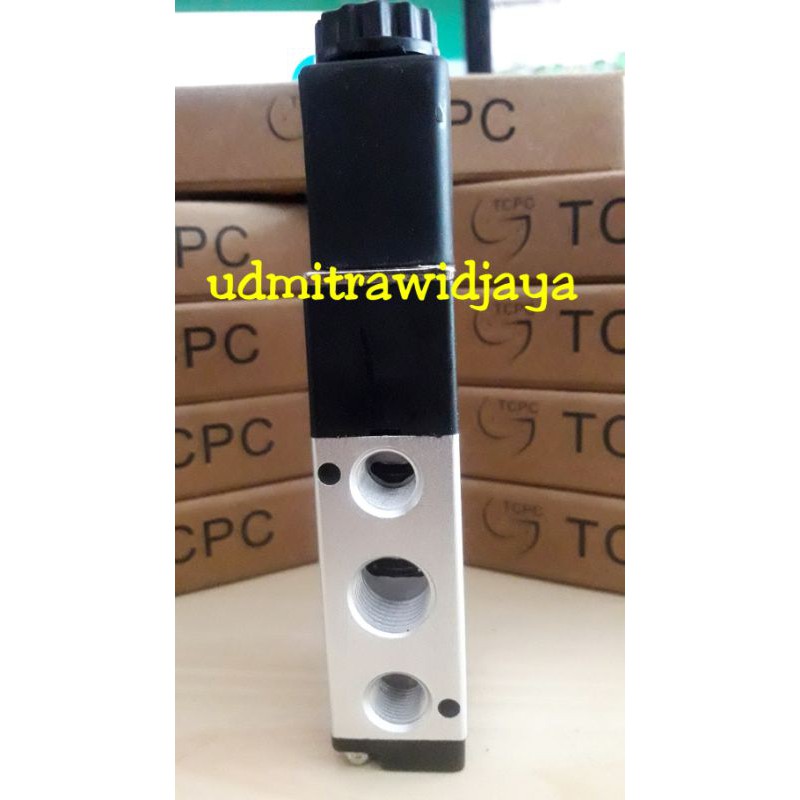

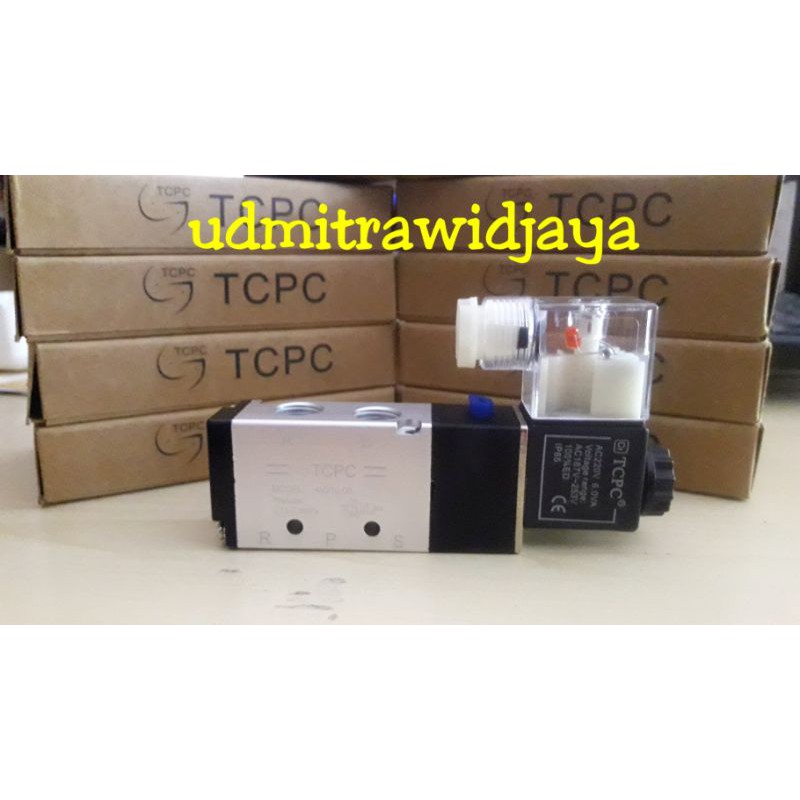

Gambar produk
