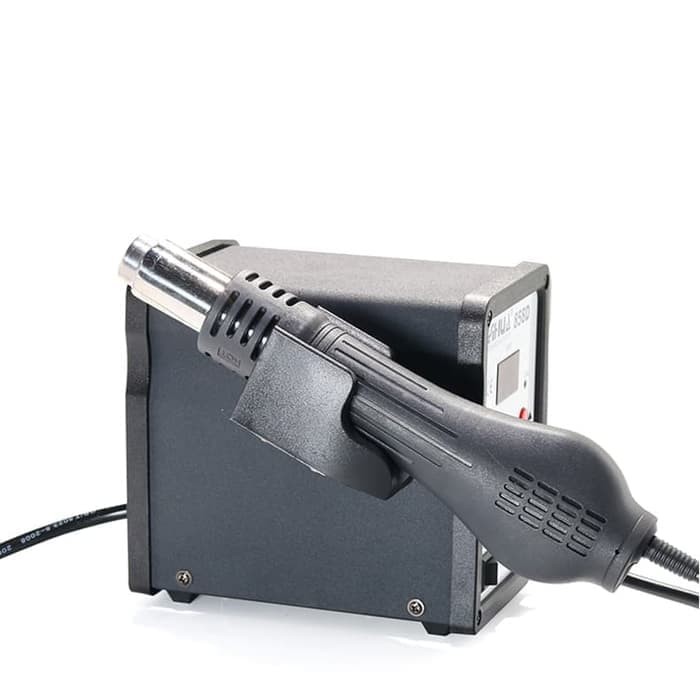

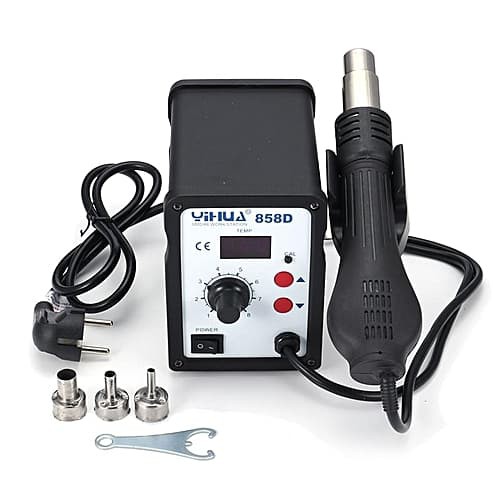

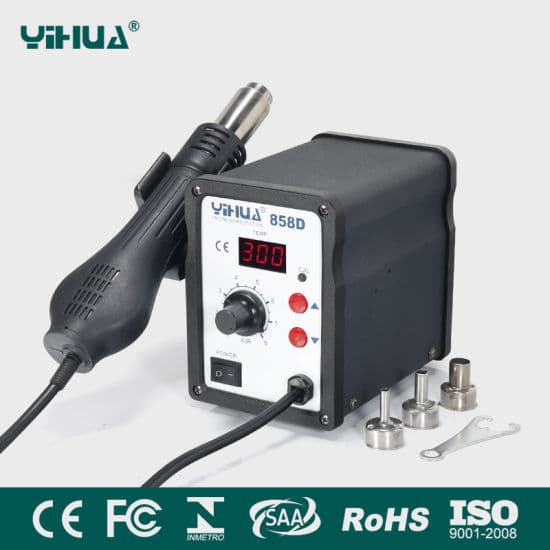

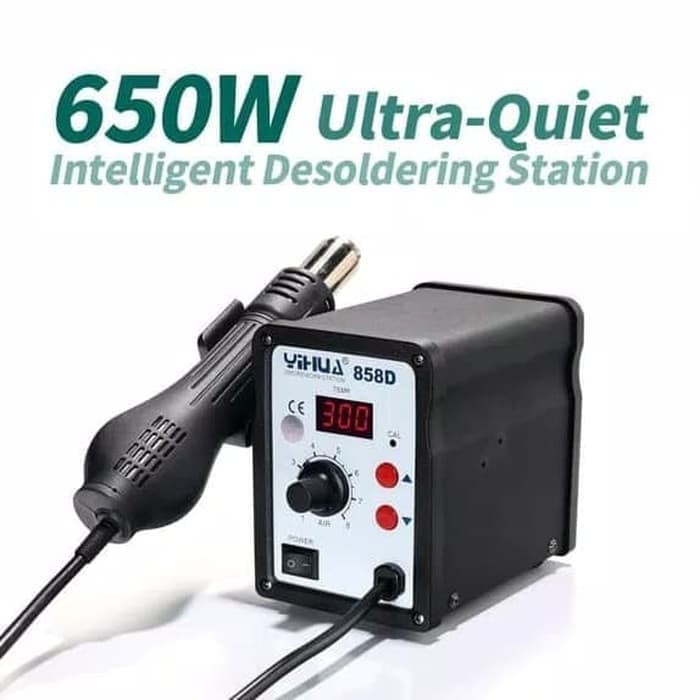

Solder Uap YIHUA Digital 858D Blower Digital

Detail Solder Uap YIHUA Digital 858D Blower Digital

Product Features
1.The outer enclosure of the main machine is made of a superior iron alloy, which is immune to high temperature damage and is durable.
2.Common features of the handle of the brushless fan type hot air gun:
(a) The brushless-motor fan for the hot air gun has a standard service life of 20000 hours.The airflow is soft, uniform and heavy.
(b) The hot air gun’s heating element employs brand new columned heating core developed with a ceramic process, having strong stability, resistance to impact and dropping, and extraordinarily
vibration-mitigation ability.
(c) The outlet steel cylinder of the handle and the hot air gun nozzle are made of superior stainless steel with better conductivity and strong oxidation resistance.
3.Suitable for soldering SMD elements, integrated chips with multiple pins and circuit boards and widely applicable to production lines for electronic products, laboratories, schools, mobile phone
maintenance industry, household appliance maintenanc department, etc.
4.Small cabinet design, space-saving and easy to transport and carry.

Product Parameters
Operating Voltage AC 220V±10% 50Hz
Output Power 650W
working condition 0～40℃ relative humidity ＜80％
Storage Temperature －20～80℃ relative humidity ＜80％
Dimensions 26*16.5*14.8cm
performance parameter 858D
Temperature Range 100℃～450℃
display mode LED digital display

air supply mode Brushless fan
Air volume 120L/min(Max)
Temperature stability ±10℃ （static state）
Temperature correction mode PID Digital program calibrate
PID temperature correction cycle 200ms
Heater Ceramic skeleton heater

standard configuration:
Desoldering station 1 Manual : 1
Air gun handle 1 Nozzle: 3（8mm 10mm 13mm）
