Solar Panel Charger Controller 20A Panel Surya 12V 24V Intelligent PWM

Detail Solar Panel Charger Controller 20A Panel Surya 12V 24V Intelligent PWM

Intelligent PWM Solar Charge Controller adalah alat pengatur sistem pembangkit Listrik tenaga Matahari dengan Microcontroller.
Alat ini mendapatkan input dari Solar Panel atau Panel Surya yang akan mencharge AKI dan akan otomatis memutus jika AKI sudah penuh atau kelebihan beban.

Dilengkapi dengan dua Port USB sehingga bisa charge Ipad/tablet/smartphone, arus outputnya max 2.5A

>>Features:
100% brand new and high quality
Visual LCD graphic symbol, brief key operation.
Automatic identification system voltage level, intelligent PWM charge mode.
Adjustable charge/discharge control parameters, settable operating modes of loads.
Multiple selection of battery.
Battery over temperature protection, low voltage/reverse polarity protection.
Over-load and short-circuit protection.
With dual USB output.

>>Specifications:
Color: Blue & black
Rated Voltage: 12V / 24V (Auto Switch)
Max. Charge/Discharge Current: 20A
Max. Solar Panel Input Voltage: less than 50V
Stop Charge Voltage: 14.7V/29.4V
Low Voltage Recovery: 12.2V/24.4V
Low Voltage Protection: 10.5V/21.0V
USB Output Voltage/Current: 5V 2A
No Load Loss: less than 10mA
Temperature Compensation: -3mV/Cell/Centigrade

Ukuran :
PxLxT = 17 x 7.4 x 2.9 cm

CARA PASANG:
1. Hubungkan Aki dulu
2. Hubungkan Kabel Panel Surya
3. Hubungkan Kabel Output Lampu
4. Jangan terbalik pasang kabel (+) dan (-). Pasang sesuai petunjuk Tanda nya. Pasang terbalik bisa rusak.

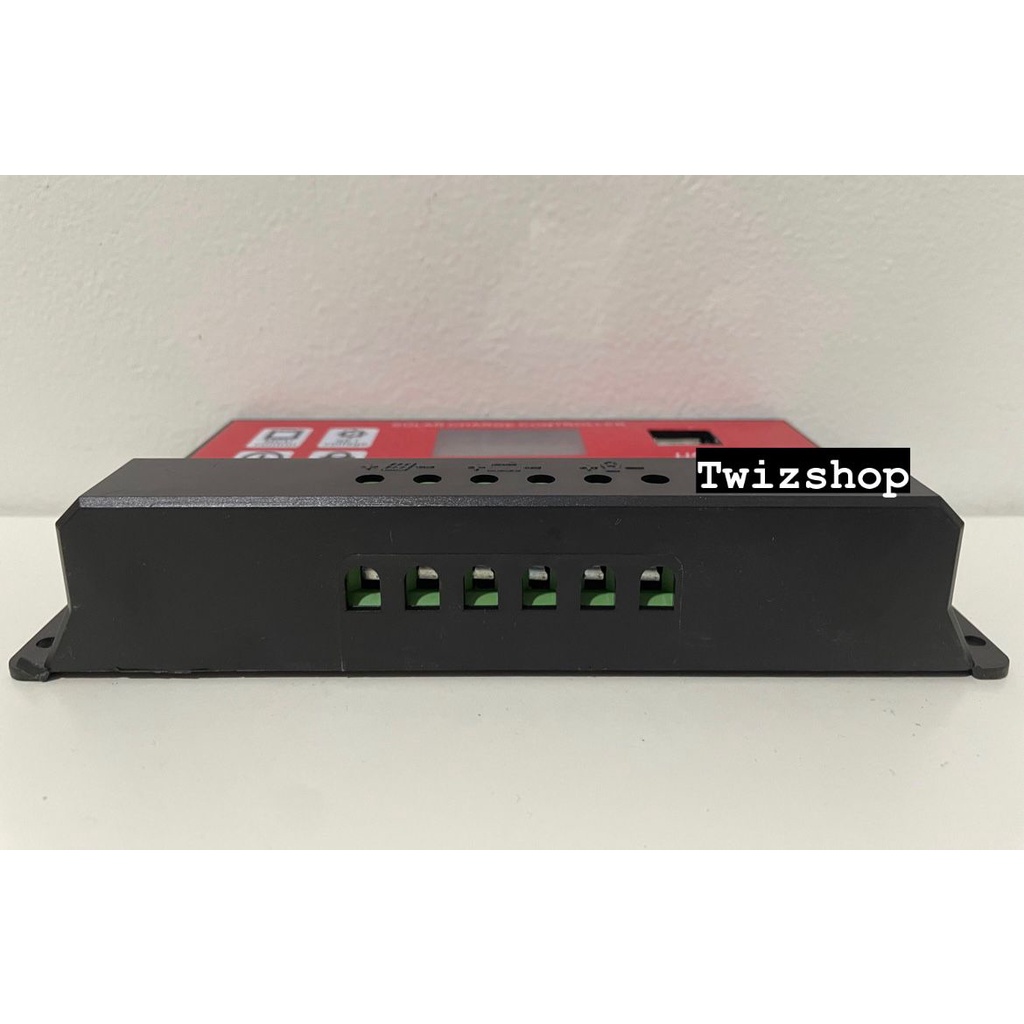

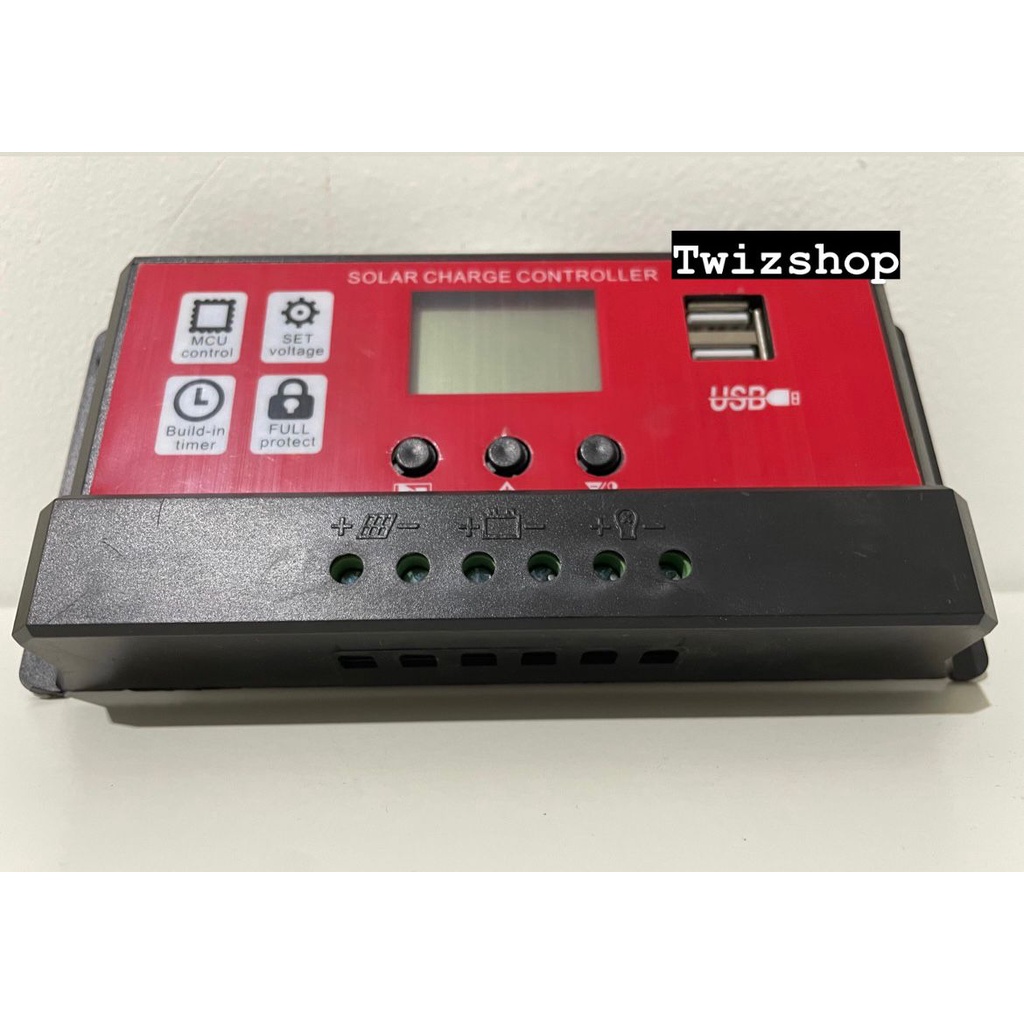

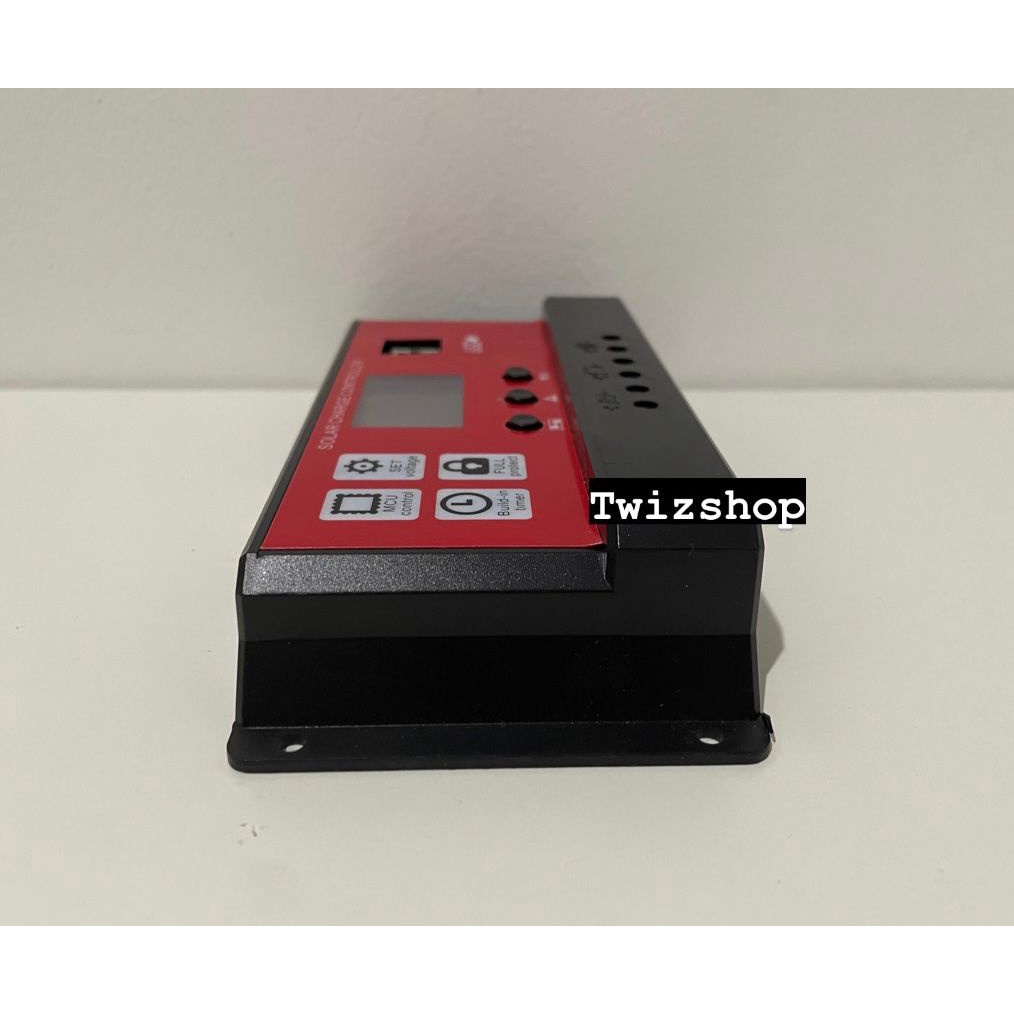

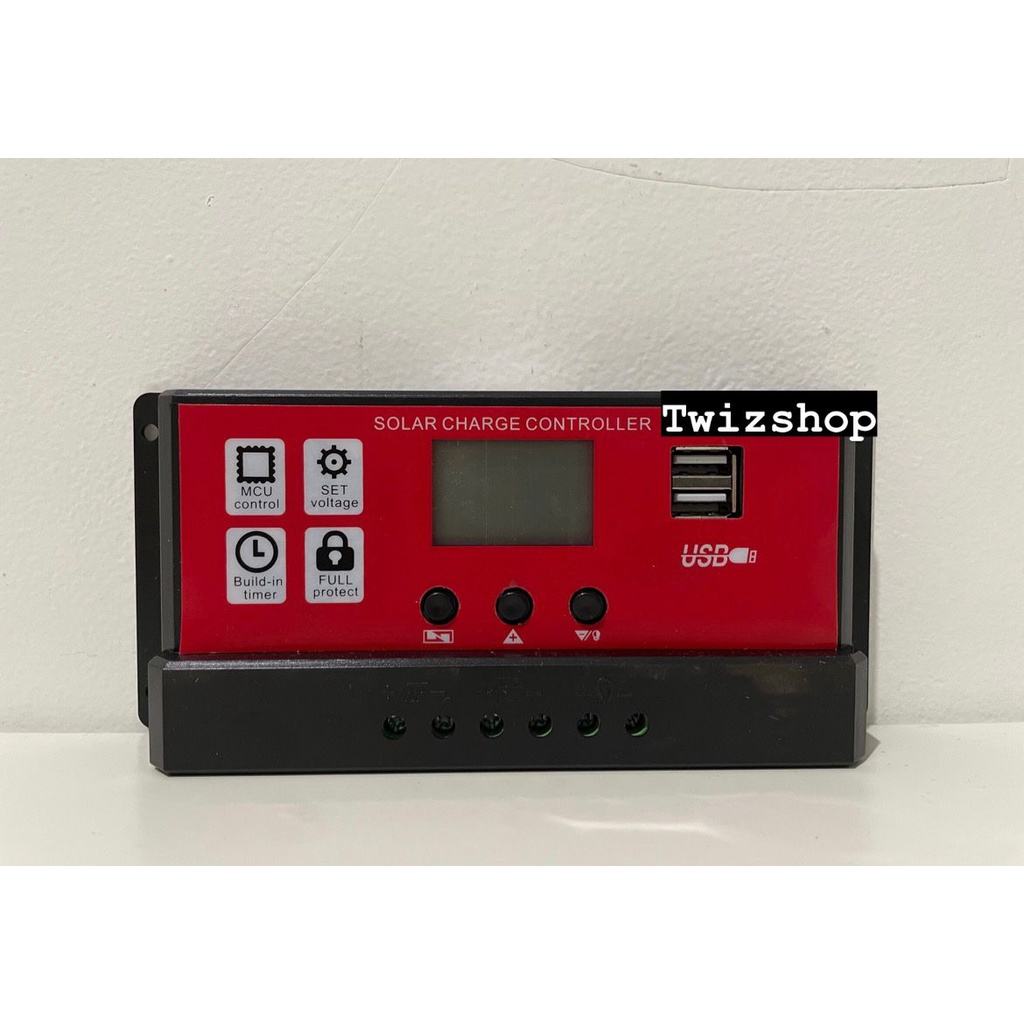

Gambar produk
