Solar Panel Charger Controller Panel Surya 30A 12V 24V Control

Detail Solar Panel Charger Controller Panel Surya 30A 12V 24V Control

Harga 1pcs

Intelligent PWM Solar Charge Controller 30A dengan USB Port

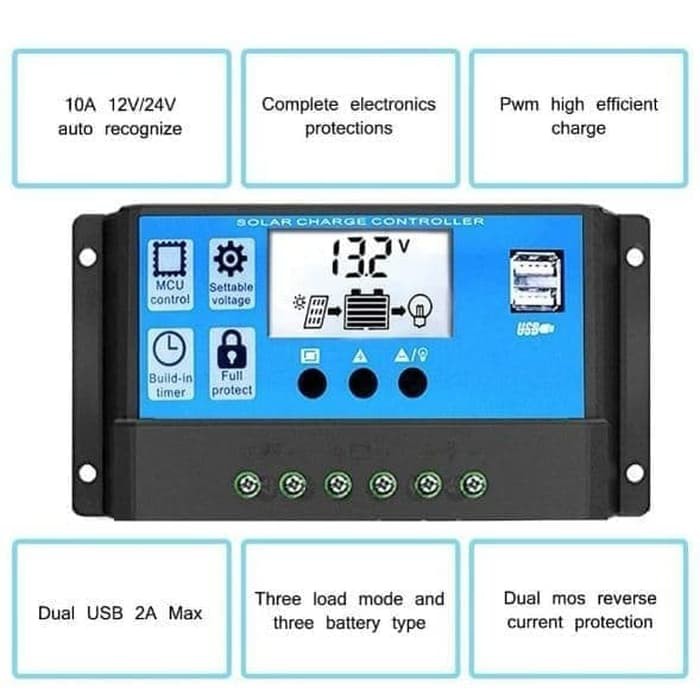

>>Features:
100% brand new and high quality
Visual LCD graphic symbol, brief key operation.
Automatic identification system voltage level, intelligent PWM charge mode.
Adjustable charge/discharge control parameters, settable operating modes of loads.
Multiple selection of battery.
Battery over temperature protection, low voltage/reverse polarity protection.
Over-load and short-circuit protection.
With dual USB output.

>>Specifications:
Color: Blue & black
Rated Voltage: 12V / 24V (Auto Switch)
Max. Charge/Discharge Current: 30A
Max. Solar Panel Input Voltage: less than 50V
Stop Charge Voltage: 14.7V/29.4V
Low Voltage Recovery: 12.2V/24.4V
Low Voltage Protection: 10.5V/21.0V
USB Output Voltage/Current: 5V 2A
No Load Loss: less than 10mA
Temperature Compensation: -3mV/Cell/Centigrade

Gambar produk
