Solar Controller / Solar Energy ARAKAWA SSI10K-3P

Detail Solar Controller / Solar Energy ARAKAWA SSI10K-3P

Setiap hari buka termasuk hari minggu/libur, silahkan di pesan barangnya dan kami akan mengirimkan barang pesanan anda secepat mungkin.

Mohon Tanyakan Stock terlebih dahulu sebelum Melakukan Order !!
Untuk menghindari Penolakan Order, Mohon Tanyakan Stock terlebih dahulu sebelum Melakukan Order !!

SPESIFIKASI

• DC INPUT
Max.PV Power : 11.5 kW
Max.PV Input Voltage : 1000 vdc
Max.Pv Input Current : 2x11
MPPTs/Total Strings : 2/2
MPPT Voltage Range : 200~800 Vdc
Start Up Voltage : 250 Vdc
MPPT Efficiency : 99.9%

• AC Output
Nominal AC Output Power : 10 kW
Max. Output Power : 11 kW
Nominal Ac Voltage : 380/400 Vac
Rated Output Current : 15.2 A
Maximum Output Curren : 16.7 A
Nominal Grid Frequency : 50/60 Hz
Grid Frequency Range : 45~55/55~65 Hz
Power Factor : >0.99 (full load)
PF Adjustable Range : 0.8 (leading)-0.8 (lagging)
THDI : <3% (nominal power)

• Efficiency
Max. Efficiency : 98.2%
European Efficiency : 97.9%

• Protection
Anti-islanding : Yes
Smart Feed-in Control : Yes
DC Reversed Connection : Yes
AC ShortCircui : Yes
Leakage Current Protection : Yes
Surge Protection : Yes
DC Switch : Optional
PV Fault Detect : Yes

• Other
Dimension (W×H×D) : 430×620×270 mm
Weight : 30 Kg
IP Grade : IP 65
NIght Consumption : <1 W
Cooling : Intelligent forced air cooling
Altitude : <4000m (>3000m derating)
Operating Temperature Range : -25~+60 Cº
Operating Humidity : 0~95% (Non-condensation)
Display : LCD +LED
Communication : RS485/WiFi/GPRS
Warranty : -
# Harga diatas sudah termasuk PPn
# Kami akan menerbitkan faktur pajak setelah transaksi
PT. INDOTARA PERSADA

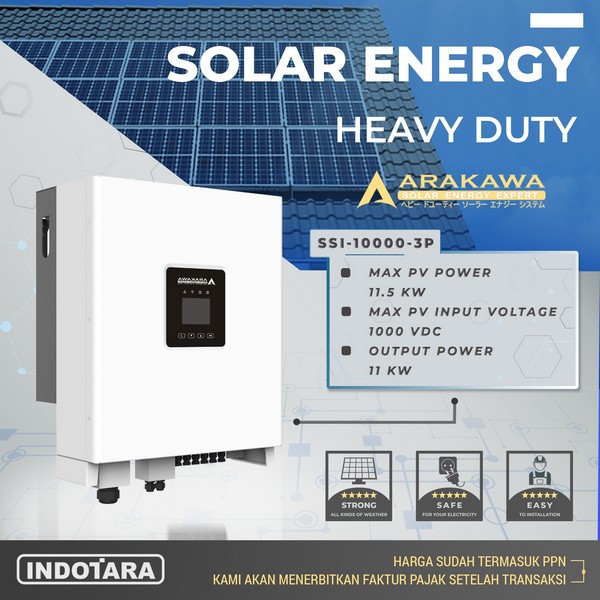

Gambar produk
