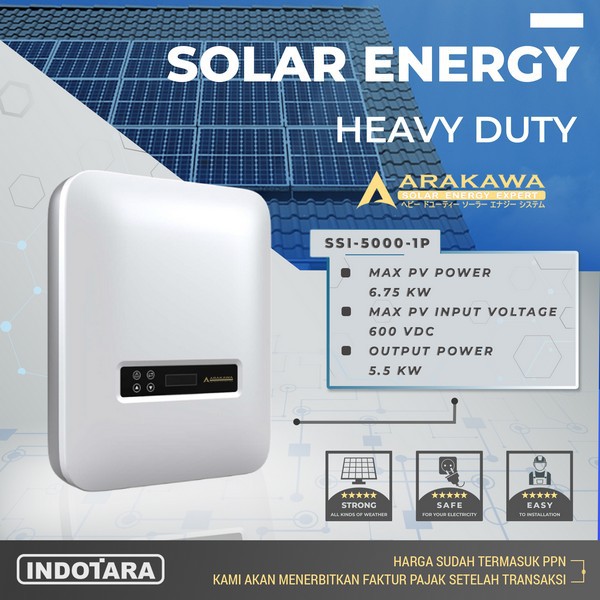

Solar Controller / Solar Energy ARAKAWA SSI5K-1P

Detail Solar Controller / Solar Energy ARAKAWA SSI5K-1P

Setiap hari buka termasuk hari minggu/libur, silahkan di pesan barangnya dan kami akan mengirimkan barang pesanan anda secepat mungkin.

Mohon Tanyakan Stock terlebih dahulu sebelum Melakukan Order !!
Untuk menghindari Penolakan Order, Mohon Tanyakan Stock terlebih dahulu sebelum Melakukan Order !!

SPESIFIKASI

• DC INPUT
Max.PV Power : 6.75 kW
Max.PV Input Voltage : 600 vdc
Max.Pv Input Current : 22A(2x11A)
MPPTs/Total Strings : 2/2
MPPT Voltage Range : 100-550 Vdc
Start Up Voltage : 1.2 Vdc
MPPT Efficiency : 99.9%

• AC Output
Nominal AC Output Power : 5 kW
Max. Output Power : 5.5 kW
Nominal ACVoltage : 220/230 Vac
Rated Output Current : 22.7 A
Maximum Output Curren : 25.0 A
Nominal Grid Frequency : 50/60 Hz
Grid Frequency Range : 45~55/55~65 Hz
Power Factor : >0.99 (full load)
PF Adjustable Range : 0.8 (leading)-0.8 (lagging)
THDI : <3% (nominal power)

• Efficiency
Max. Efficiency : 98.3%
European Efficiency

• Protection
Anti-islanding : Yes
Smart Feed-in Control : Yes
DC Reversed Connection : Yes
AC ShortCircui : Yes
Leakage Current Protection : Yes
Surge Protection : Yes
DC Switch : Optional
PV Fault Detect : Yes
Standard & Certification (upon request) : IEC62109-1/-2, EN62109-1/-2, AS4777.2-2015, G83/2 G59/3 VDE4105 EN50438 AS 62040 CGC/CQC CE

• Other
Dimension (W×H×D) : 360×420×125 mm
Weight : 11.5 Kg
IP Grade : IP65
Inverter design : Transformerless
Noise emission (typical)(dB) : ≤25
Self Power Consumption at Night : <1 W
Cooling Mode : Natural cooling
Maximum Operating Altitude : 4000m (>2000m derating)
Operating Temperature Range : -40~60 Cº
Operating Humidity Range : 0~95% (Non-condensing)
Display : LCD display+LED indicator
Communication : RS485/WiFi (optional)/GPRS (optional)

# Harga diatas sudah termasuk PPn
# Kami akan menerbitkan faktur pajak setelah transaksi
