Solar Charger Controller Mppt 50A 12V 24V Panel Surya Mppt 50A

Detail Solar Charger Controller Mppt 50A 12V 24V Panel Surya Mppt 50A

MPPT SOLAR CHARGE CONTROLLER 12VDC 24VDC 50 A.

Alat Pengatur Sistem Pembangkit Listrik tenaga Matahari dengan Microcontroller. Alat ini mendapatkan input dari Solar Panel atau Panel Surya yang akan mencharge AKI dan akan otomatis memutus jika AKI sudah penuh atau kelebihan beban. Dibandingkan dengan PWM controller konvensional, teknologi MPPT meningkatkan efisiensi pengisian hingga 30% .

Product features:
Applicable to various types of batteries,
MPPT function
Temperature sensor battery charging compensation
Overload protection (automatic restoration)
Overcharge protection
Short circuit protection (automatic restoration) ,
Thunder protection
Reverse discharge protection
Reverse polarity connection protection (automatic restoration)
Under voltage protection

Size: about 168*94*35mm / 6.61*3.70*1.38in

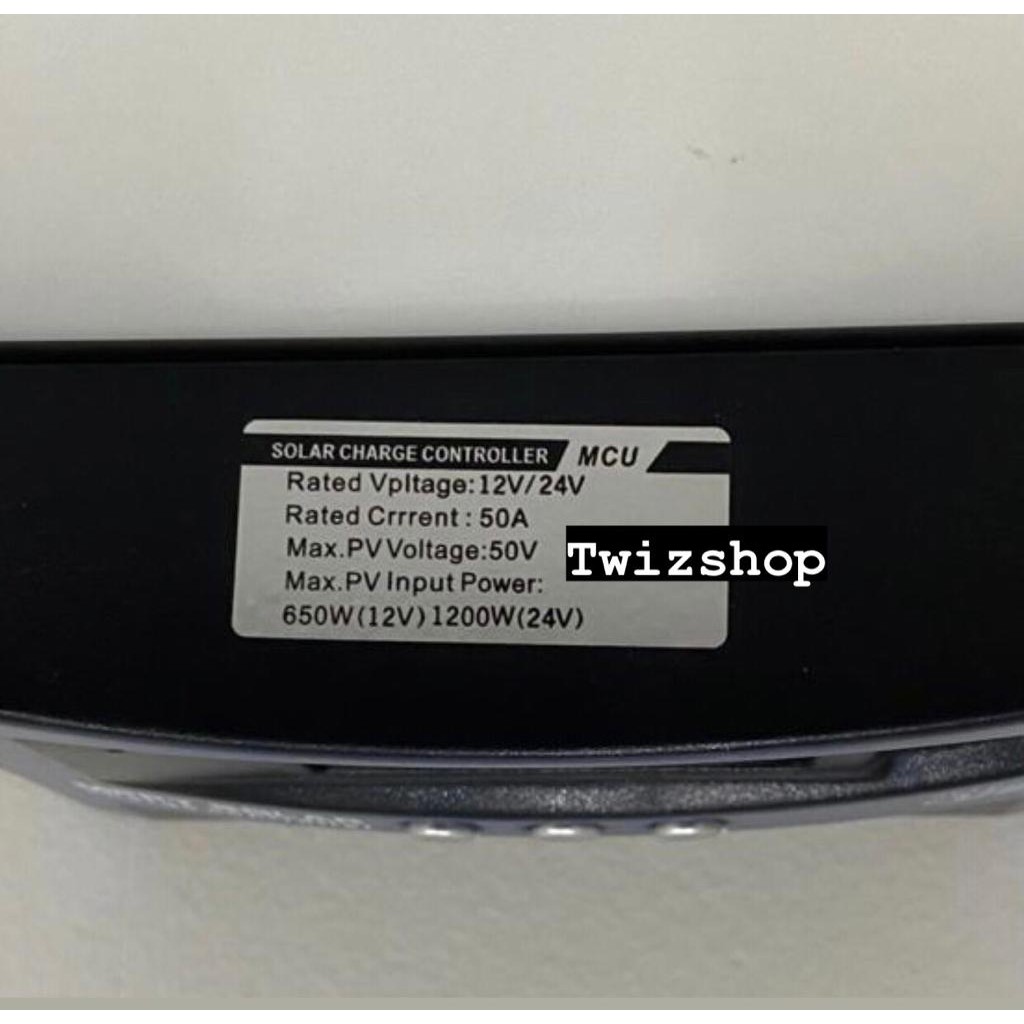

System voltage: 12 / 24V adaptive
Rated charging current: 50A
Rated discharge current: 20A
Max PV Voltage : 50V
Max PV Input Power : 650W (12V) 1200W (24v)
Solar photovoltaic voltage :12V battery with 18V solar panel, 24V battery with 36 solar panel
Full Voltage Value : Lithium Battery (12.2V) | B02 Colloidal Battery (14.2V) | B03 Open Cell (14.6V)
Floating Charge Voltage : 13.7 V ( Default, Adjustable )
Discharge cut-off voltage::10.7 V ( default, adjustable )
Discharge recovery voltage: 12.6 V ( default, adjustable )
Standby current :10mA
USB Output : 5V / 2A MAX
Operating temperature:- 35 - 60
1. Press the menu key in the main interface, select the interface to adjust the corresponding parameters and set the working state of the equipment.
2. Working mode of load, COT manual mode load output, AUTO automatic light control mode. 00: 58 Set the output time after no sunlight.
3. Set the real-time working status: D 13.1 V the battery voltage value display, D 29.1 '" temperature display, D2.1A solar charging current display, large current charging arrow flows fast, and vice versa.

Packing List:
1 *Solar charging controller
1 *Manual
1 *Packing box

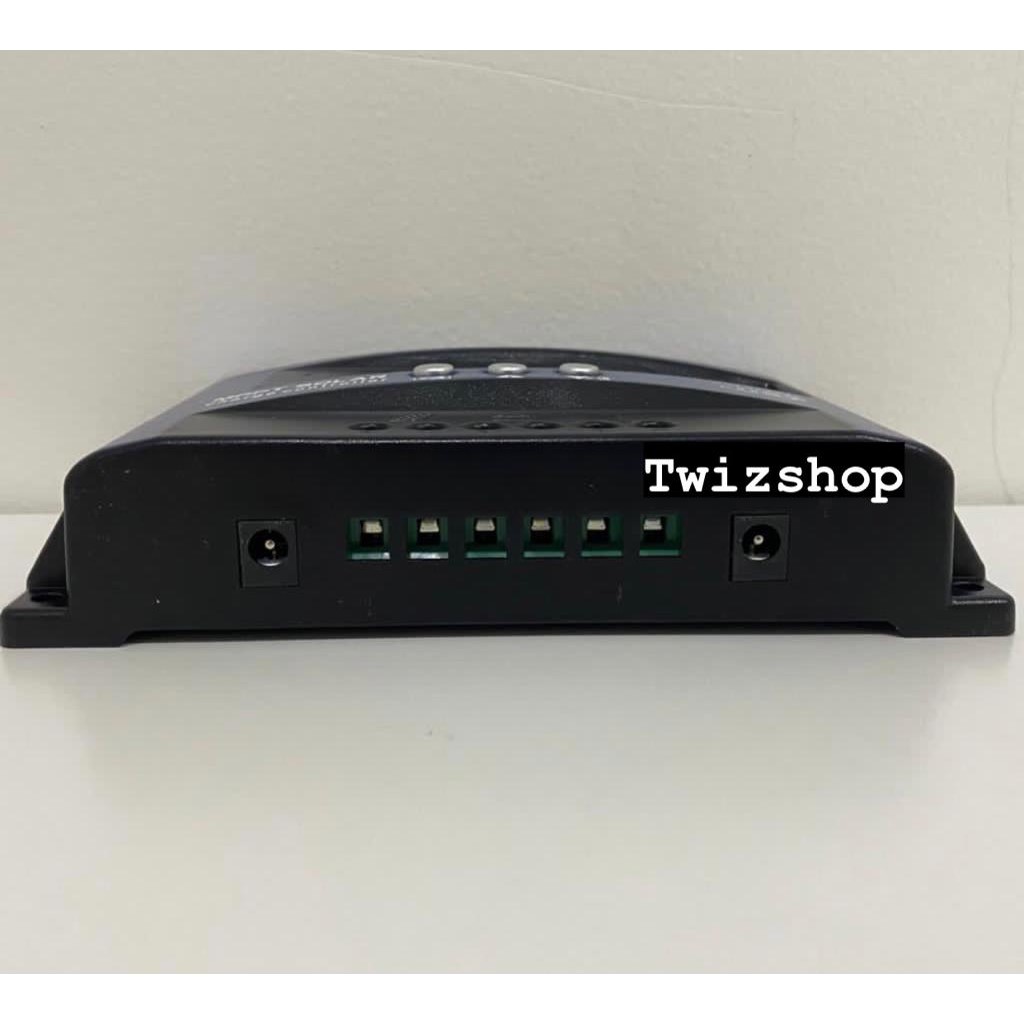

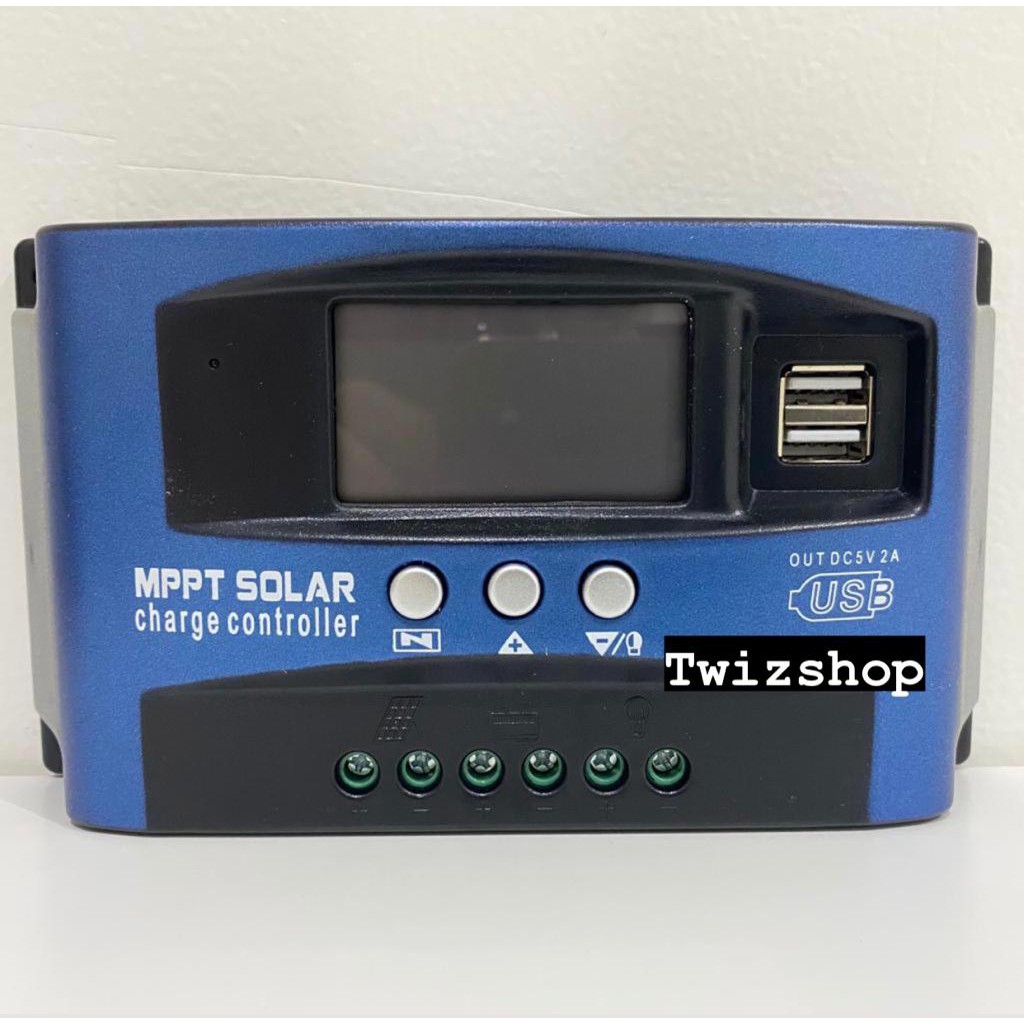

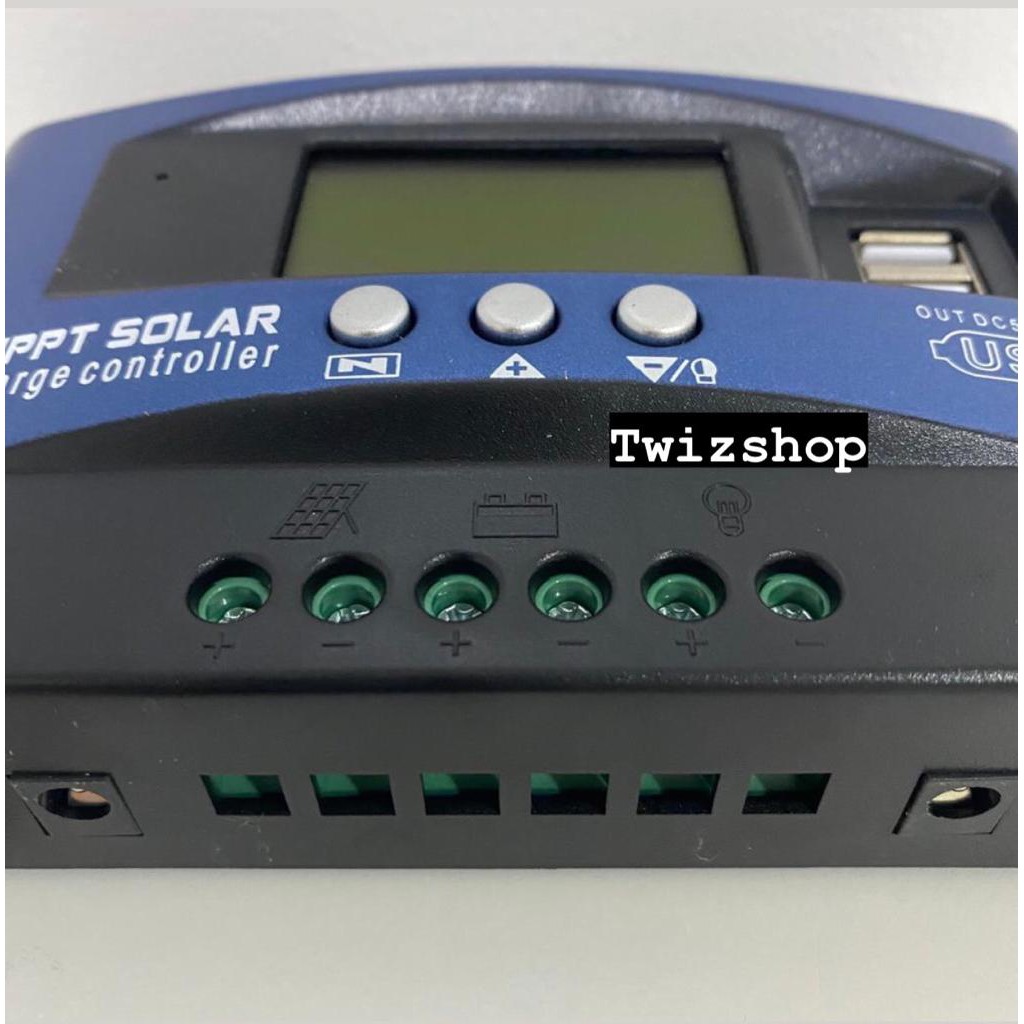

Gambar produk
