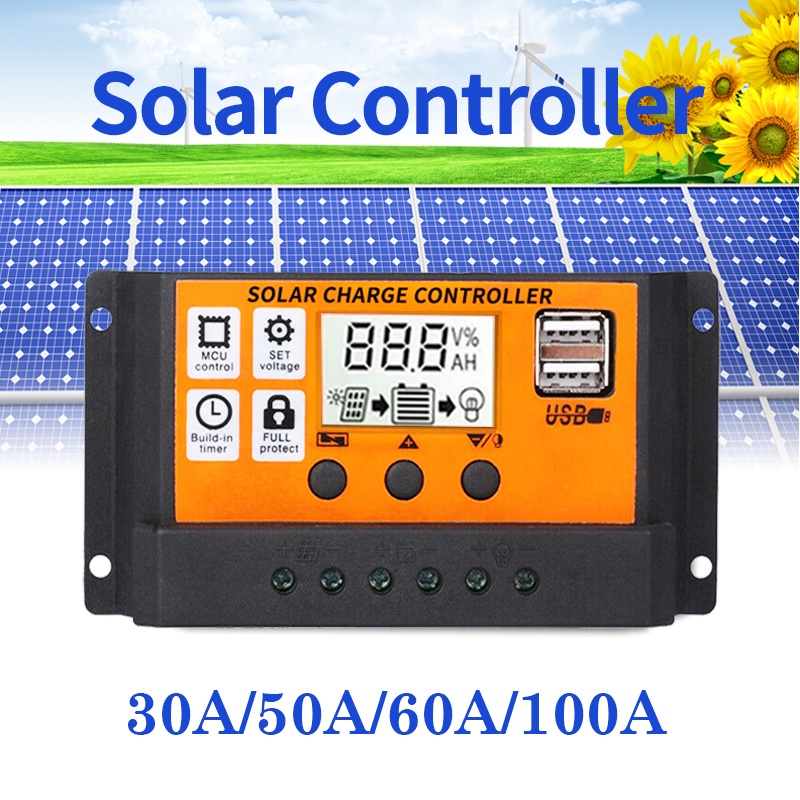

Solar Charger Controller 12V/24V Auto PWM Controllers LCD Display Dual USB Output

Detail Solar Charger Controller 12V/24V Auto PWM Controllers LCD Display Dual USB Output

Ready Solar Charge Controller LCD LED Solar Cell PWM 12 / 24V USB Solar Panel Charger
There are 4 variants of Solar Charger Controller items:
1. 30A
2. 50A
3. 60A
3. 100A
For 12V PV System: 120W Solar Panel, 12V Lead-acid Battery, 21V for Max input Voltage
For 24V PV System: 240W Solar Panel, 24V Lead-acid Battery, 42V for Max input Voltage

Make sure you buy item variants that match the product variants in this post, because we send orders according to the variant orders that enter (NO COMPLAINTS)
Solar Charger Controller
Equipped with USB which can be used for Charging Cellphones and Tablets.
* Charging voltage can be adjusted
* Battery disconnection voltage can be set
* According to the type of battery（Lithium batteries and lead-acid batteries） used so that the battery is more durable

Product Features:

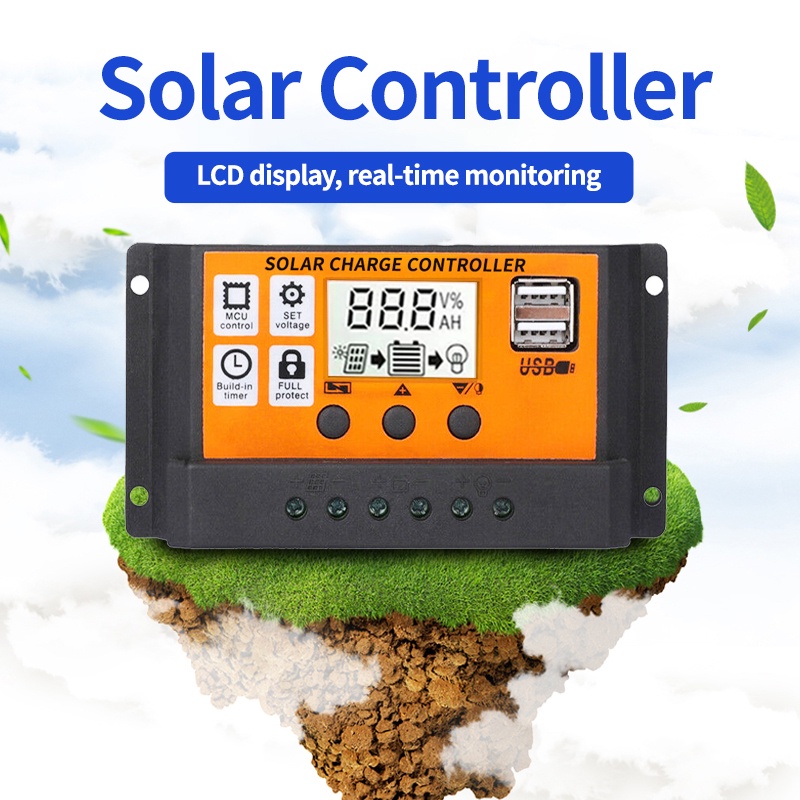

~ Graphic LCD display of symbols
~ Easy operation
~ Automatically detects the voltage used is 12V / 24V
~ Intelligent PWM charge mode
~ The charge-discharge voltage can be adjusted according to the type of battery
~ Settable operating modes of loads
~ You can choose the type of battery used, the battery is durable
~ Battery protection from excessive temperature
~ Lowest voltage battery protection, extending the life of the battery
~ Dual USB 5V output can Charge Tablets and HP.

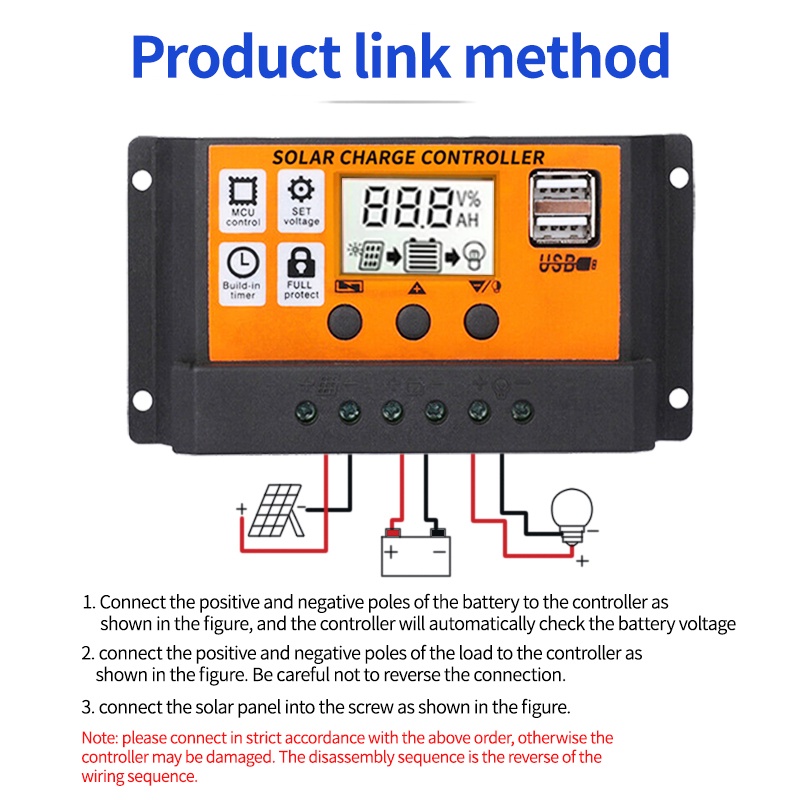

** INSTALLING ORDER
1. Connect AKI / BATTERY to the Controller
2. Connect the SOLAR PANEL
3. Connect Load

** ORDER REMOVES
1. Remove the solar panels first
2. Remove the battery / battery from the controller

NOTE:
1. The controller MUST be connected to the battery first. If not, IT CAN BROKE !!!
2. Solar Panel must not be connected without a battery, otherwise it CAN BE DAMAGED
3. Install the plus (+) and Minus (-) cables, do not turn them upside down
4. Before sending the goods have ascertained their function.
