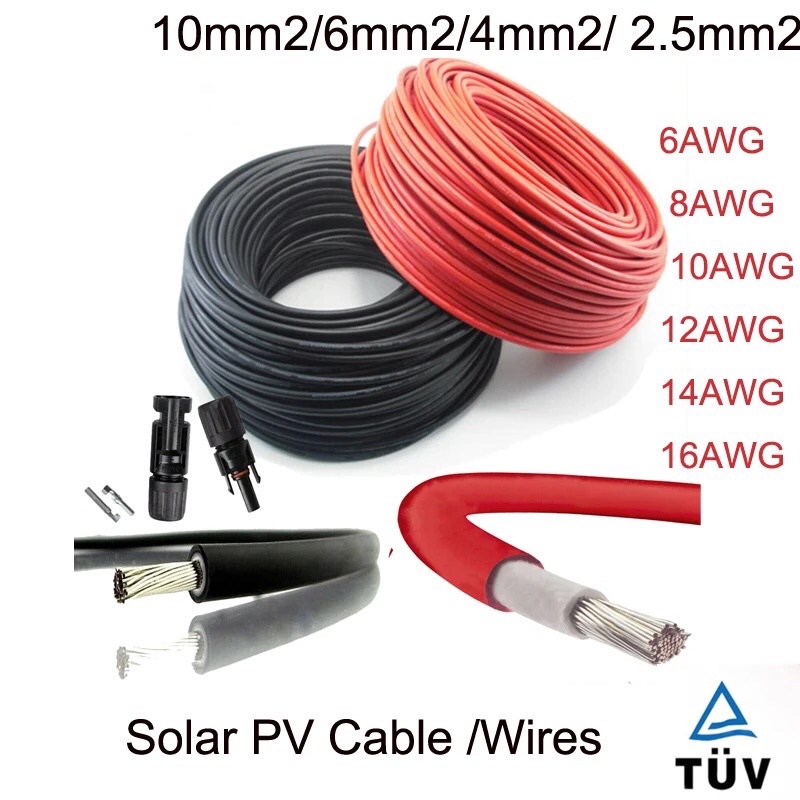

Harga per meter Solar Cable TUV Insulation DC PV 1500V 4mm 6mm 10mm AWG

Detail Harga per meter Solar Cable TUV Insulation DC PV 1500V 4mm 6mm 10mm AWG

Products Description:

Cable size range :

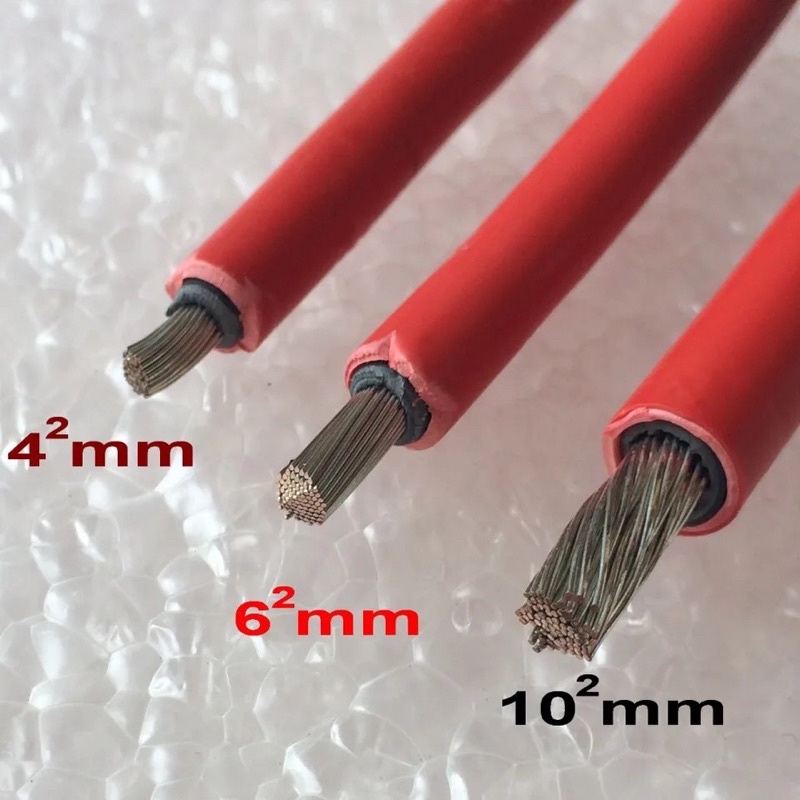

10mm2(8AWG) / 6mm2(10AWG) / 4mm2(12AWG) / 2.5mm2(14AWG) / 1.5mm2 (16 AWG)

1,Conductor: Stranded, Tinned copper,
2,Inner insulation: XLPO
3,Outer jacket: PVC
4,Color: Black and Red
Technical specification:
1,Nominal voltage: 600/1000V AC
2,Test voltage: AC 2.5 KV
3,Temperature rating: -40°C~90°C wet or dry,
4,Ambient temperature :> 25 years (TUV) -40°C~ + 90°C
Material propertied/standards:
1,Fire performance: IEC 60332-1
2,Smoke emission: IEC 61034; EN 50268-2
3,Low fire load: DIN 51900
4,Approvals: TUV & UL
Advantages:
1,Electron- beam cross-linked compounds
2,UV,ozone and hydrolysis resistant
3,High temperature resistant, the materials do not melt or flow
4,Good cold flexibility
5,Very long service life > 25 years at 90°C
6,Compatible to all popular connectors

Gambar produk
