Soket Piggy Back Blade Fuse Tap Add A Circuit Sekring Jumper import Bonus Sekring 4 item

Detail Soket Piggy Back Blade Fuse Tap Add A Circuit Sekring Jumper import Bonus Sekring 4 item

Ready stok ya langsung order saja

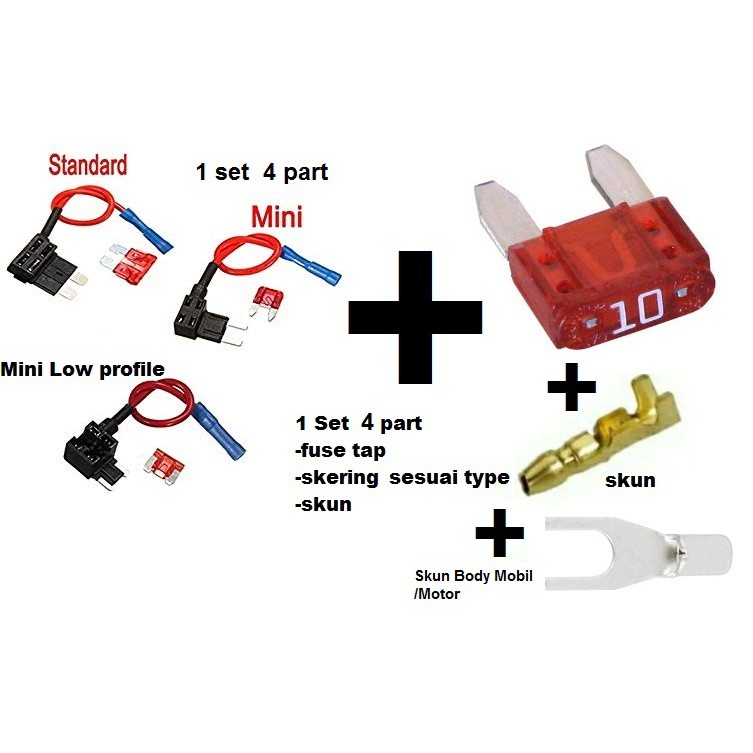

1 set berisi 4 part/barang (1. fuse tap, 2. sekring, 3. skun bulat, 4. skun body mobil/motor)

WARNING

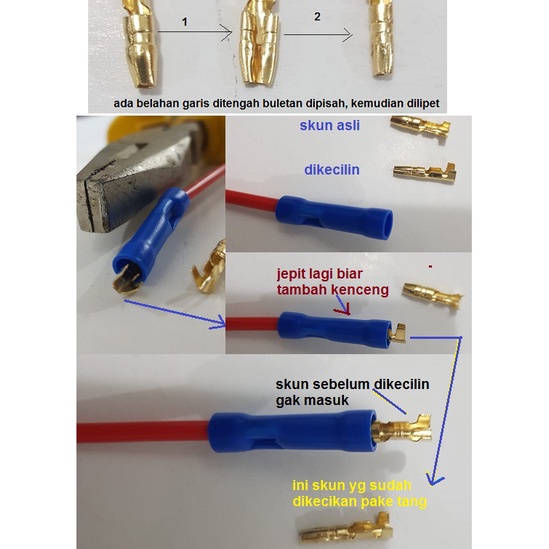

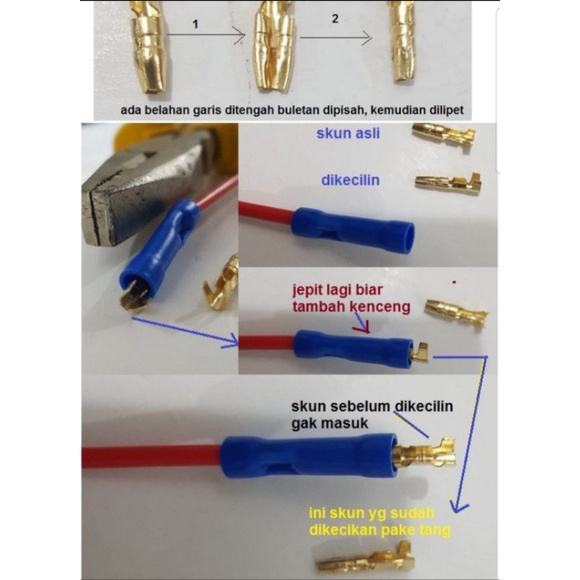

cara kecilin skun kuningan lihat gambar terakhir (ke-8)

BONUS SKUN kuningan kami masih KEBESARAN. COBA kecilin Press pake tang buletannya. lihat gambar ya kak....



ampere sekring isi di catatan ya gan. jika tidak dikirim 10A atau 15A


Deskripsi Soket Piggy Back Blade Fuse Tap Add A Circuit Sekering Jumper import
hanya kirim lewat Paket J&T, JNE, POS, WAHANA , siCepat TIKI saja ya sementara karena beda gudang dengan produk lain



Bonus sekering isi di catatan
untuk sekring tertentu jika ukuran tidak ada diberi yg mendekati

Cara mudah dan aman pasang lampu DRL dan aksesoris mobil/motor lain TANPA MENGGANGGU KABEL ORIGINAL dgn SEKERING JUMPER

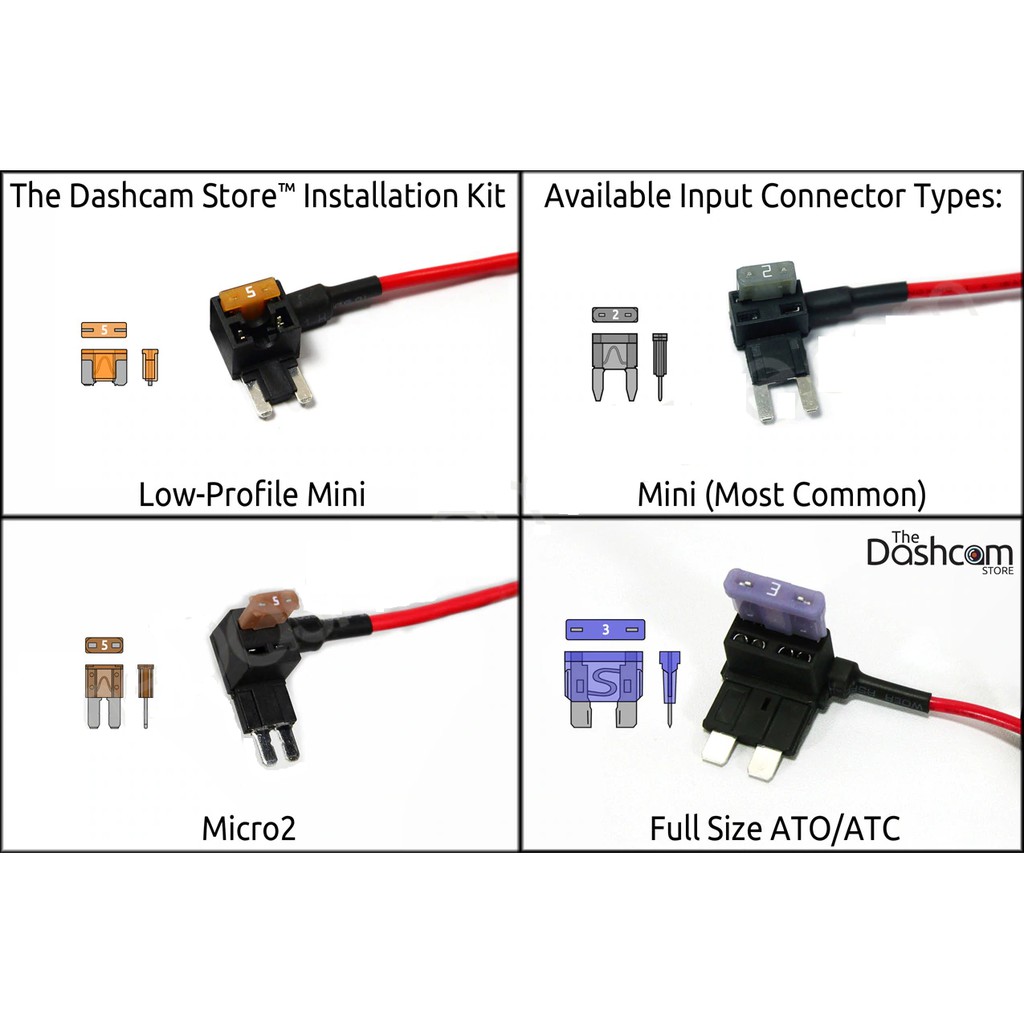

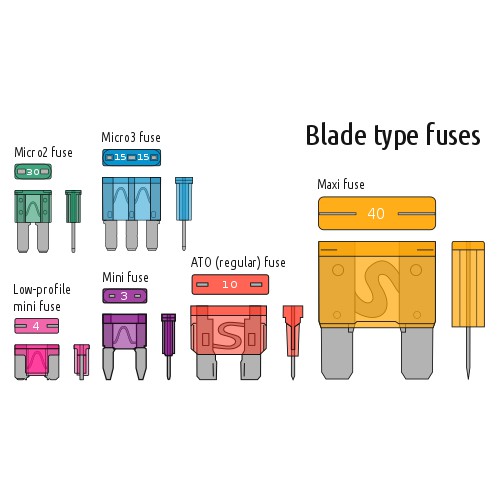

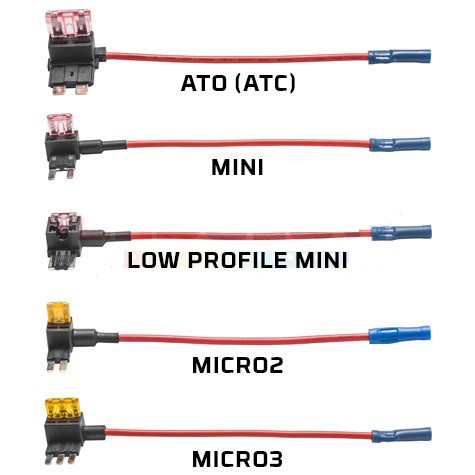

1.pastikan jenis sekering mobil anda pakai yg mana ATO, MINI atau MINI LOW PROFILE atau MICRO2
cocok kan lihat gambar.
2. cari sekering yang hidup ketika kunci di ON kan/mesin dihidupkan
3 cabut sekering asli(misal aslinya 15 A) dan pindahkan ke sekering jumper + tambah sekering di sebelahnya(yg ada KABEL MERAH nya) buat lampu DRL 5A (tergantung kebutuhan)



Feature:
With the ever increasing amount of vehicles manufactured with the CAN BUS wiring system it is becoming increasingly difficult to locate a quick power source without cutting,splicing and soldering.
This little component overcomes this issue and has the added advantage of a built in fuse holder.
Scope of application:
1. Install automobile LED bar;
2. Installing automobile alarm;
3. Installing automobile positioner;
4. Installation of traffic recorder;
5. Installation of vehicle navigator;
6. Install USB car charging;
7. Install automobile charger;
8. Installation of electrical equipment for RV;
10. Installation of yacht electric
Allows easy installation of additional circuits without cutting, splicing or soldering.
Turns one fuse slot into two therefore providing individual protection for each circuit.
Easy installation.
Installation is easy:
1.Simply remove an existing fuse from the fuse box, insert that fuse in to the bottom slot of the fuse tap.
2.Insert a suitable fuse for the new accessory in to the top slot.

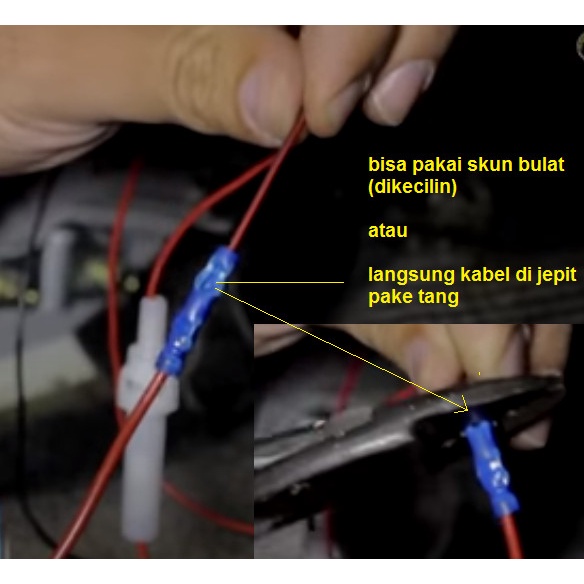

3.Crimp your new live wire to the blue butt terminal on the fuse tap.
4.Insert the fuse tap into the fuse box slot where the fuse originally was.
Fuse Holders & Boxes Long: 18cm

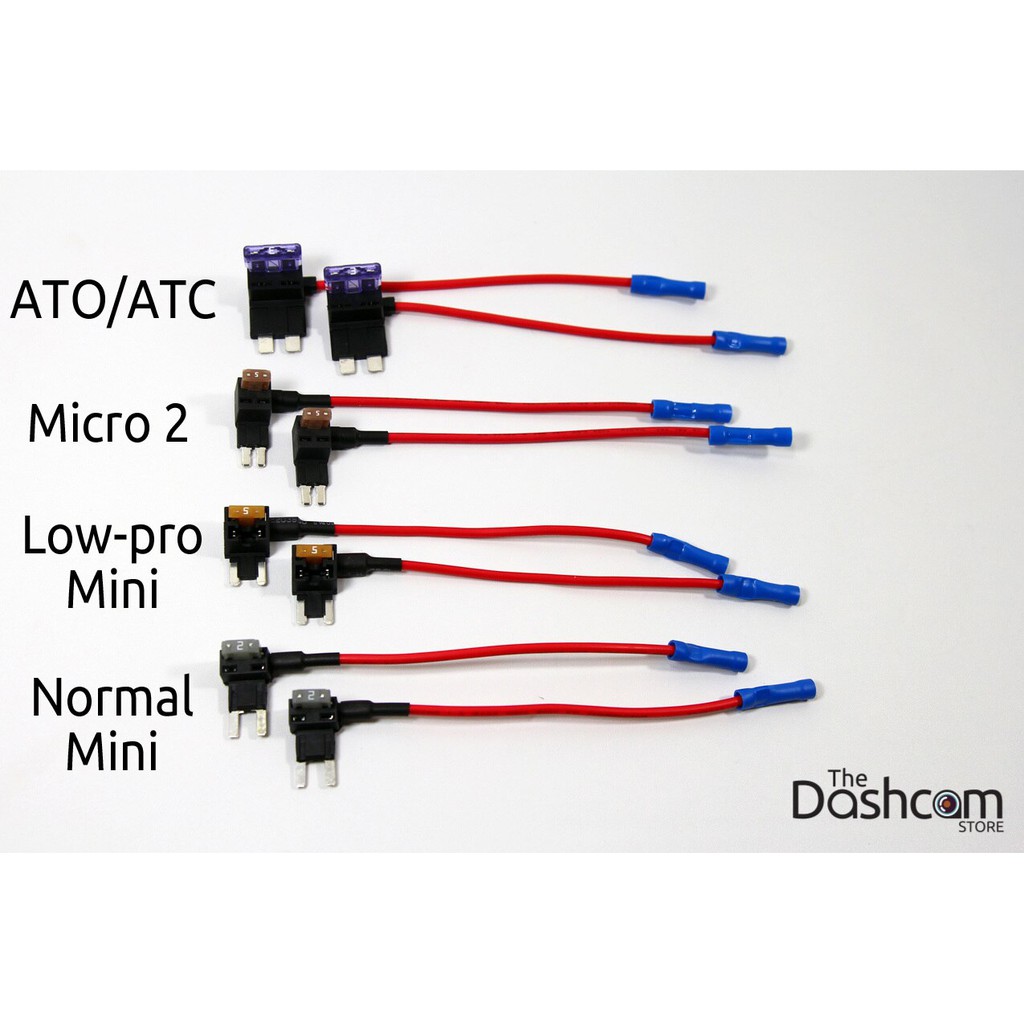

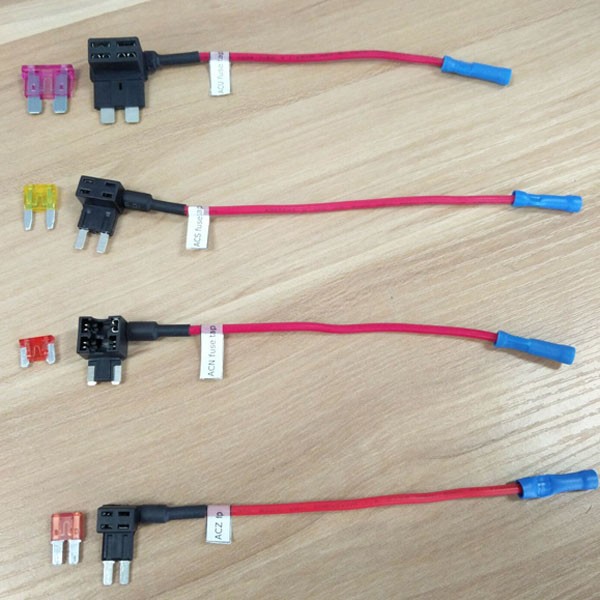

We have Standard / Mini / Micro Blade for you to chooes.

Gambar produk
