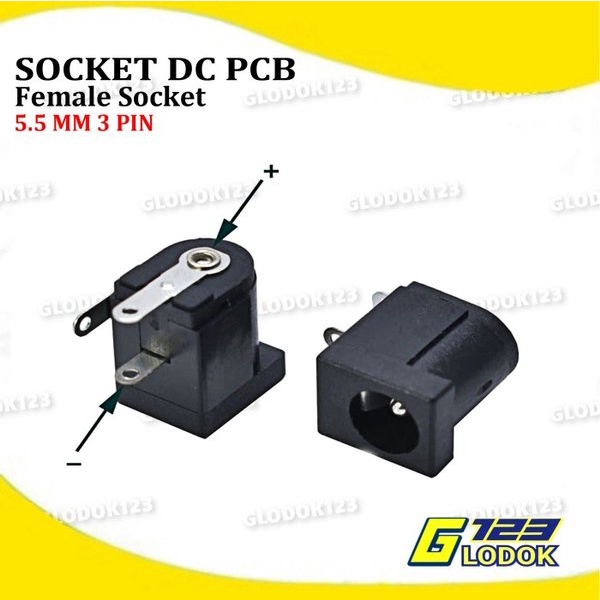

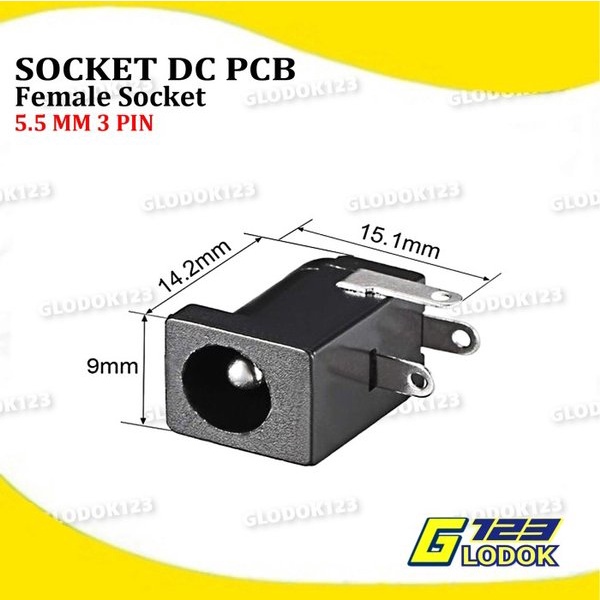

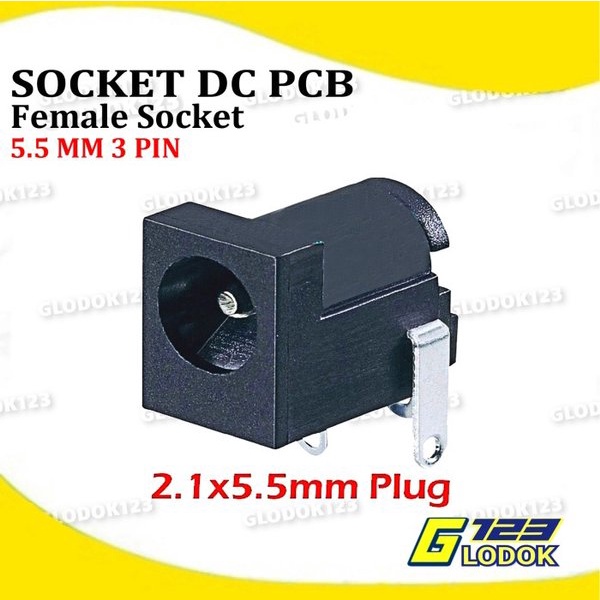

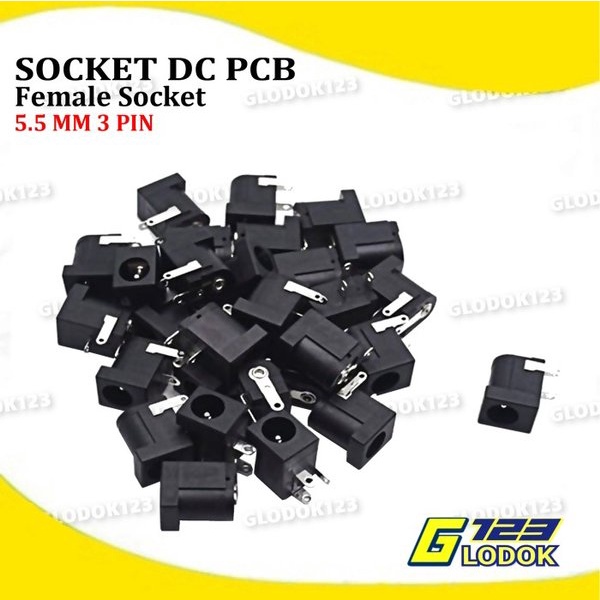

Detail Soket DC 2.1 x 5.5 mm 3 Pin Female Mount PCB Power Socket Plug In Jack
Socket DC In 5.5 mm Female PCB
* Features: - 5.5x2.1mm DC Power Plug Jack - Panel mounting - Works with the male plug with inner diameter: 2.1mm, outer diameter: 5.5mm
** Spesifikasi : - Female Mounting: - PCB Mount - 3 PIN - Type : Plug In Jack DC - Diameter luar: 5.5mm - Diameter as dalam : 2.1mm - Material : Metal, Plastic - Temperature :-40-55 - Rated Load : DC 30V 0.5A - Contact Resistance :<=0.03 - Withstand Voltage :AC500V(50Hz)/min - Insertion Force : 3-20N - Insulation Resistance :>=100M DC250V - Life: 5000 times
Gambar produk
