SOCKET SOKET CANON XLR FEMALE GOLD PLATE LAPIS EMAS SEETRONIC SCSF3-BG

Detail SOCKET SOKET CANON XLR FEMALE GOLD PLATE LAPIS EMAS SEETRONIC SCSF3-BG

Etalase: SOKET CANON
SOCKET SOKET CANON XLR FEMALE GOLD PLATED LAPIS EMAS SEETRONIC SCSF3-BG

SPESIFIKASI
MEREK - SEETRONIC
TIPE - SCSF3-BG
JENIS - AUDIO XLR FEMALE 3 CORE
WARNA - HITAM

TOLAK UKUR KELISTRIKAN
- CAPACITANCE BETWEEN CONTACTS - ≤ 4 pF
- CONTACT RESISTANCE - ≤ 3 M Ω
- DIELECTRIC STRENGTH - 1.5 KVDC
- INSULATION RESISTANCE - 10 G Ω
- RATED CURRENT PER CONTACT - 16 AMPERE
- RATED VOLTAGE - < 50 VOLT

TOLAK UKUR MEKANIS
- O.D. KABEL - BLACK STRAIN - 3.5 - 6 MM / WHITE STRAIN 6 - 8 MM
- INSERTION FORCE - ≤ 20 N
- WITHDRAWAL FORCE - ≤ 20 N
- PEMAKAIAN - > 1000
- WIRE SIZE - MAX 2.5 MM²
- WIRE SIGNAL - 14 AWG
- LOCKING DEVICE - LATCH LOCK

TOLAK UKUR MATERIAL
- BOOT - POLYURETHAN
- CONTACTS - CU ALLOY
- CONTACT PLATING - GOLD PLATE
- INSERT - POLYAMIDE (PA 66 +30 % GF)
- LOCKING ELEMENT - ZINC DIECAST (ZnAl4Cu1)
- SHELL - ZINC DIECAST (ZnAl4Cu1)
- SHELL PLATING - BLACK COATING
- STRAIN RELIEF - POLYACETAL (POM)
- FLAME-RETARDANT GRADE - UL 94 HB
- PROCTECTION CLASS - IP40
- TEMPERATURE RANGE - -30 ℃ to +85 ℃

STANDARISASI
- IEC 61076-2-103
- COMPLIES WITH IEC 68-2-20

HIGH QUALITY PRODUCT FOR PROFESSIONAL USE !!!

PASTIKAN PRODUK YANG ANDA BELI ORIGINAL ASLI SEETRONIC

BELILAH DI TOKO TERPERCAYA HANYA DI RUDY PERDANA ELECTRONIC

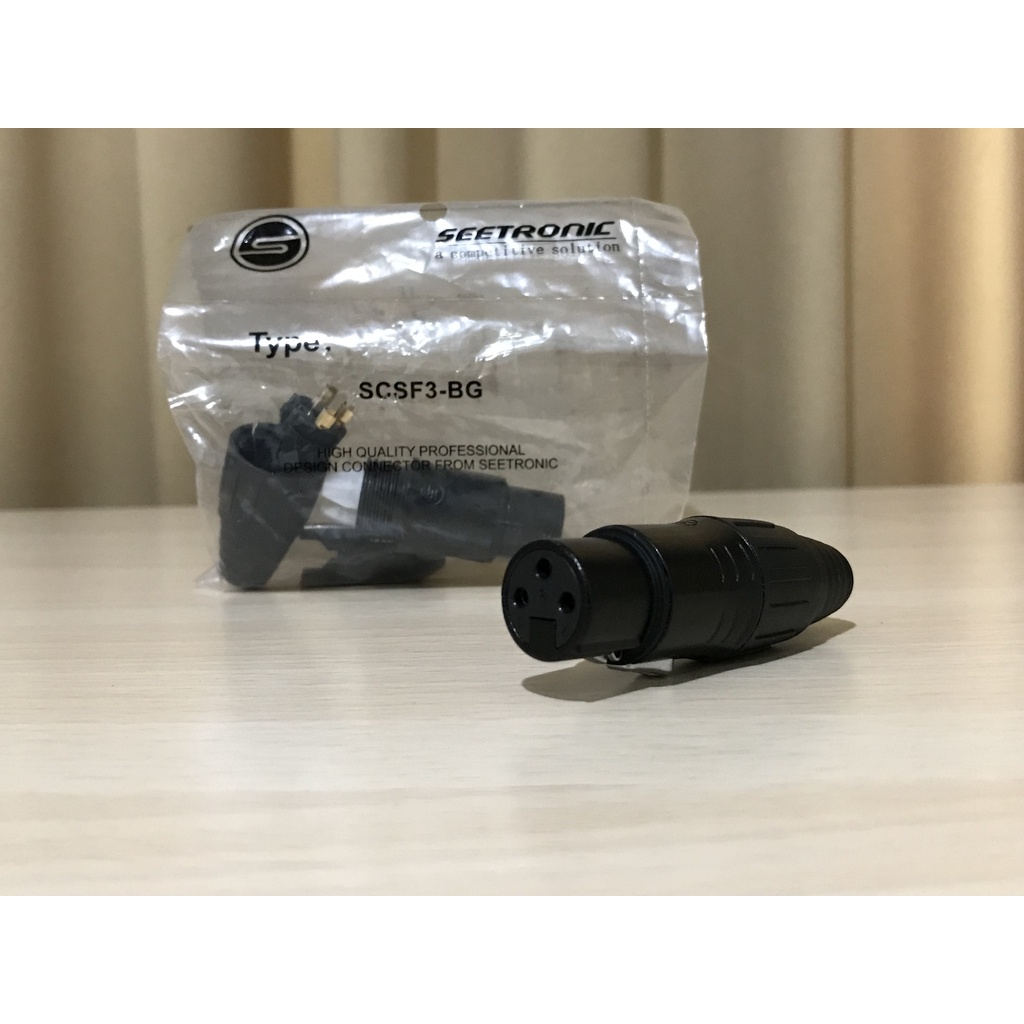

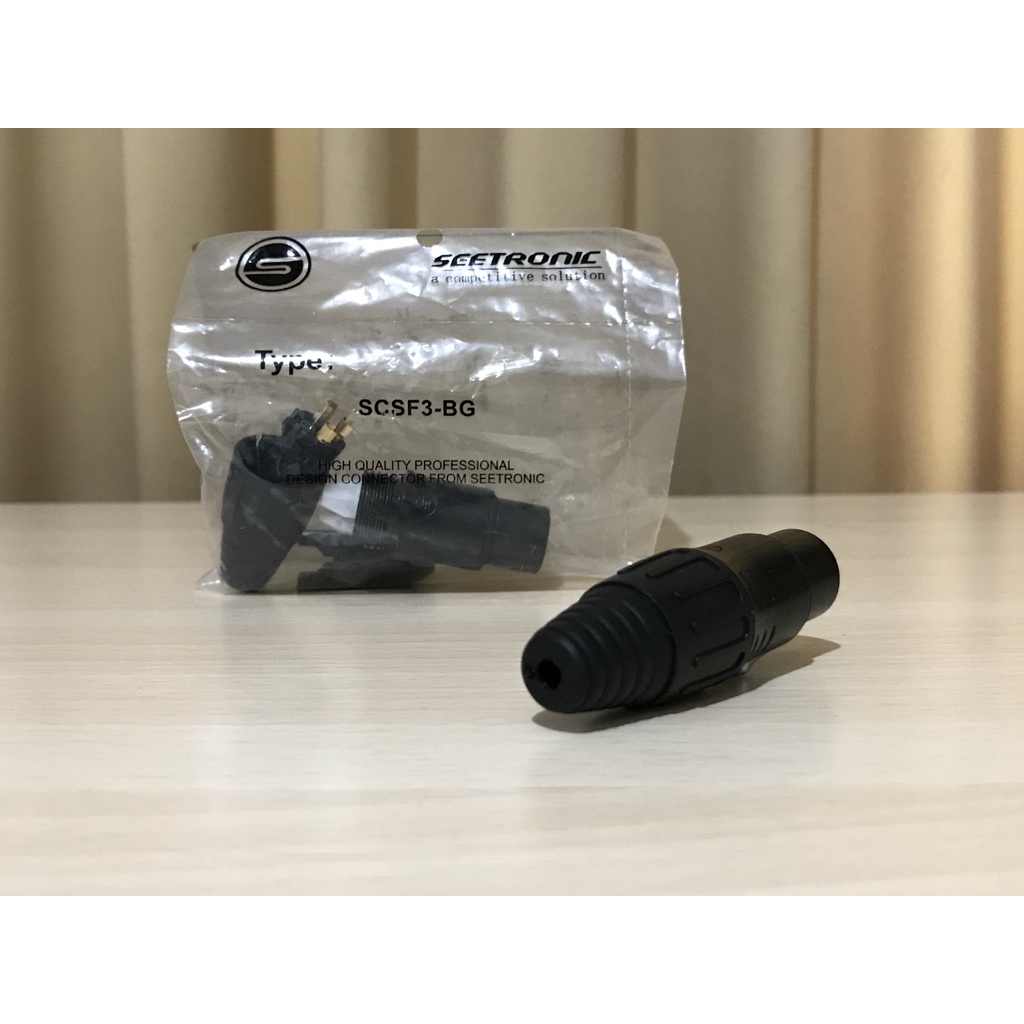

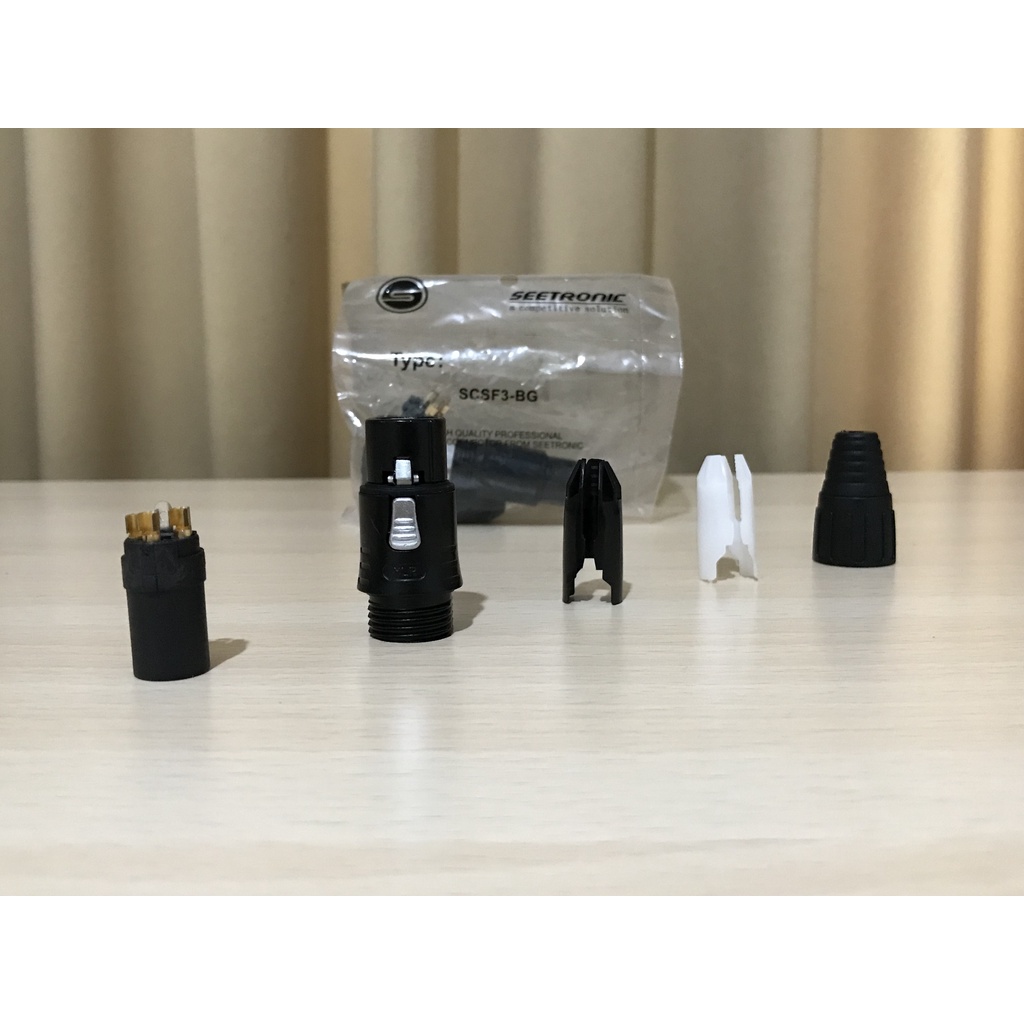

Gambar produk
