SOCKET SOKET CANON XLR FEMALE NICKEL PLATED LAPIS NIKEL SEETRONIC MC3FXX

Detail SOCKET SOKET CANON XLR FEMALE NICKEL PLATED LAPIS NIKEL SEETRONIC MC3FXX

SOCKET SOKET CANON XLR FEMALE NICKEL PLATED LAPIS NIKEL SEETRONIC MC3FXX

SPESIFIKASI
MEREK - SEETRONIC
TIPE - MC3FXX
JENIS - AUDIO XLR FEMALE 3 CORE
WARNA - SILVER KOMBINASI HITAM

TOLAK UKUR KELISTRIKAN
- CAPACITANCE BETWEEN CONTACTS - ≤ 4 pF
- CONTACT RESISTANCE - ≤ 3 M Ω
- DIELECTRIC STRENGTH - 1.5 KVDC
- INSULATION RESISTANCE - 10 G Ω
- RATED CURRENT PER CONTACT - 16 AMPERE
- RATED VOLTAGE - < 50 VOLT

TOLAK UKUR MEKANIS
- O.D. KABEL - BLACK STRAIN - 3.5 - 6 MM / WHITE STRAIN 6 - 8 MM
- INSERTION FORCE - ≤ 20 N
- WITHDRAWAL FORCE - ≤ 20 N
- PEMAKAIAN - > 1000 PEMASANGAN
- WIRE SIZE - MAX 2.5 MM²
- WIRE SIGNAL - 14 AWG
- LOCKING DEVICE - LATCH LOCK

TOLAK UKUR MATERIAL
- BOOT - POLYURETHAN
- CONTACTS - CU ALLOY
- CONTACT PLATING - SILVER PLATE
- INSERT - POLYAMIDE (PA 66 +30 % GF)
- SHELL - ZINC DIECAST (ZnAl4Cu1)
- SHELL PLATING - CHROME
- STRAIN RELIEF - POLYACETAL (POM)
- FLAME-RETARDANT GRADE - UL 94 HB
- PROCTECTION CLASS - IP40
- TEMPERATURE RANGE - -30 ℃ to +85 ℃

STANDARISASI
- IEC 61076-2-103
- COMPLIES WITH IEC 68-2-20

HIGH QUALITY PRODUCT FOR PROFESSIONAL USE !!!

PASTIKAN PRODUK YANG ANDA BELI ORIGINAL ASLI SEETRONIC

BELILAH DI TOKO TERPERCAYA HANYA DI RUDY PERDANA ELECTRONIC

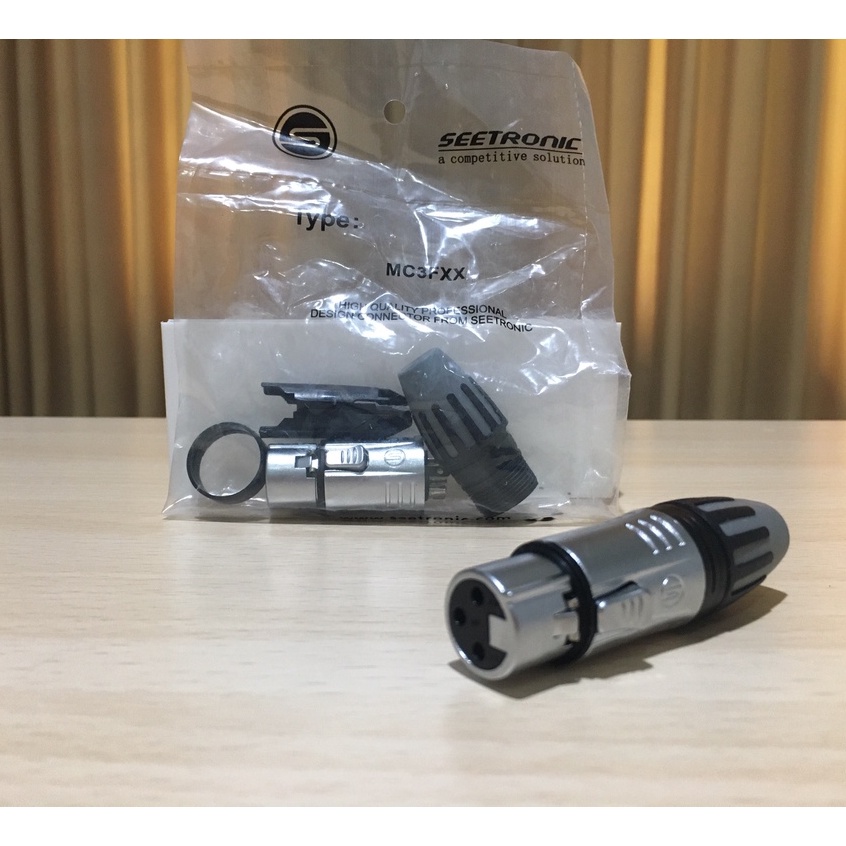

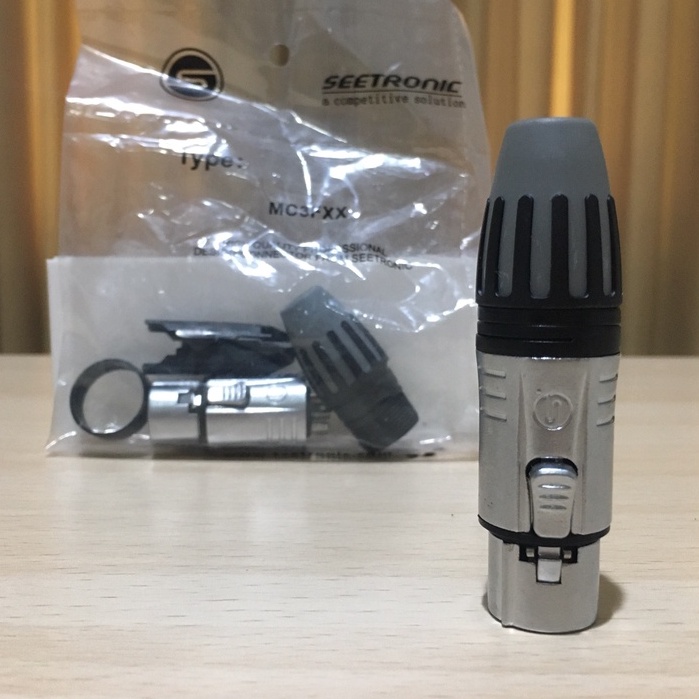

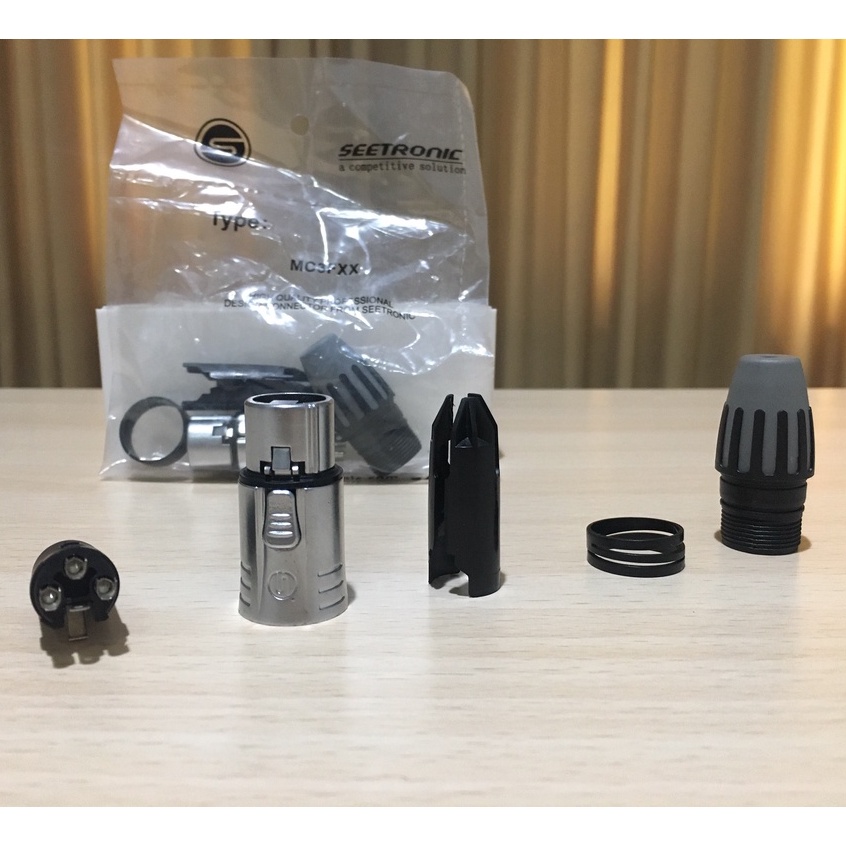

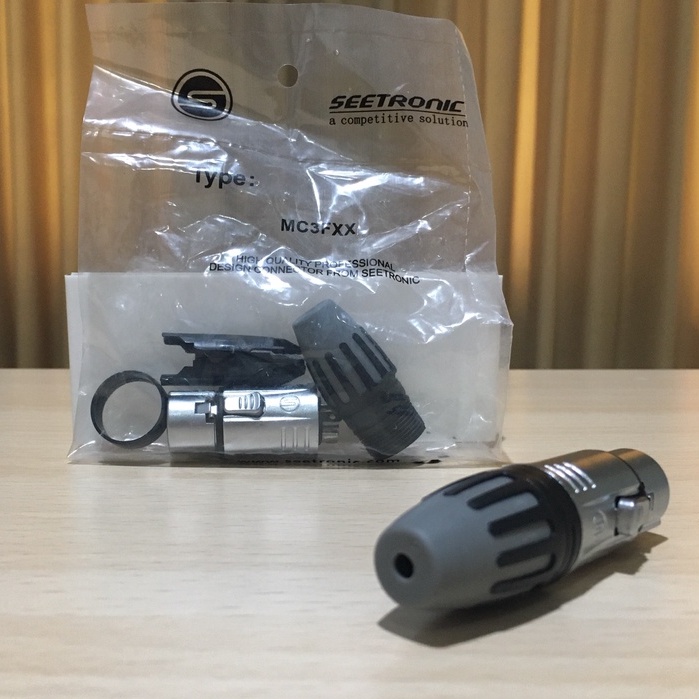

Gambar produk
