Socket holder Lampu Bohlam AC 90V-250V Dengan sensor Gerak PIR

Elektronik > Lampu > Lampu Lainnya > Socket holder Lampu Bohlam AC 90V-250V Dengan sensor Gerak PIR
  • Pengiriman Ekspres
  • Barang yang diperiksa
  • Bayar di tempat berlaku
  • Kualitas, Prestise
  • Pengembalian produk
  • Dukung pembuatan faktur

Detail Socket holder Lampu Bohlam AC 90V-250V Dengan sensor Gerak PIR

type:
Scope of application:
It is suitable for stair walkways, fire passages, public walkways, anti-theft alarms, and places where automatic switches are required to control lighting.

Features
1. With high sensitivity, it can detect changes in the infrared spectrum of human activities, so that the switch automatically turns on the load. During the delay time, if someone moves within the effective sensing range, the switch will continue to turn on until the person leaves. The load is automatically turned off at the time, and the intelligent control function that the lights are on when people come, and the lights are off when people go.
2. The time-lapse color segmented toggle switch selection of this product is 17, 35, and 280 seconds.
3. The delay time is adjustable, and the required delay time can also be adjusted within the delay range at will.
6. This switch is designed with overload protection, making it safer to use.

technical parameter

1. Scope of application: energy-saving lamps, LED lamps, incandescent lamps
2. Working voltage: AC90—250V (50/60Hz)
3. Induction angle: 138 degree cone angle
4. Induction distance: 6 meters ± 2 meters
5. Load power: 1W—100W
6. Static power consumption: ≤0.012W
7. Ambient temperature: -20℃+45℃
8. Illumination range: 6Lux±1Lux or all-day sensing, factory setting: 6Lux±1Lux
Factory setting: 40 seconds ± 8 seconds

Precautions

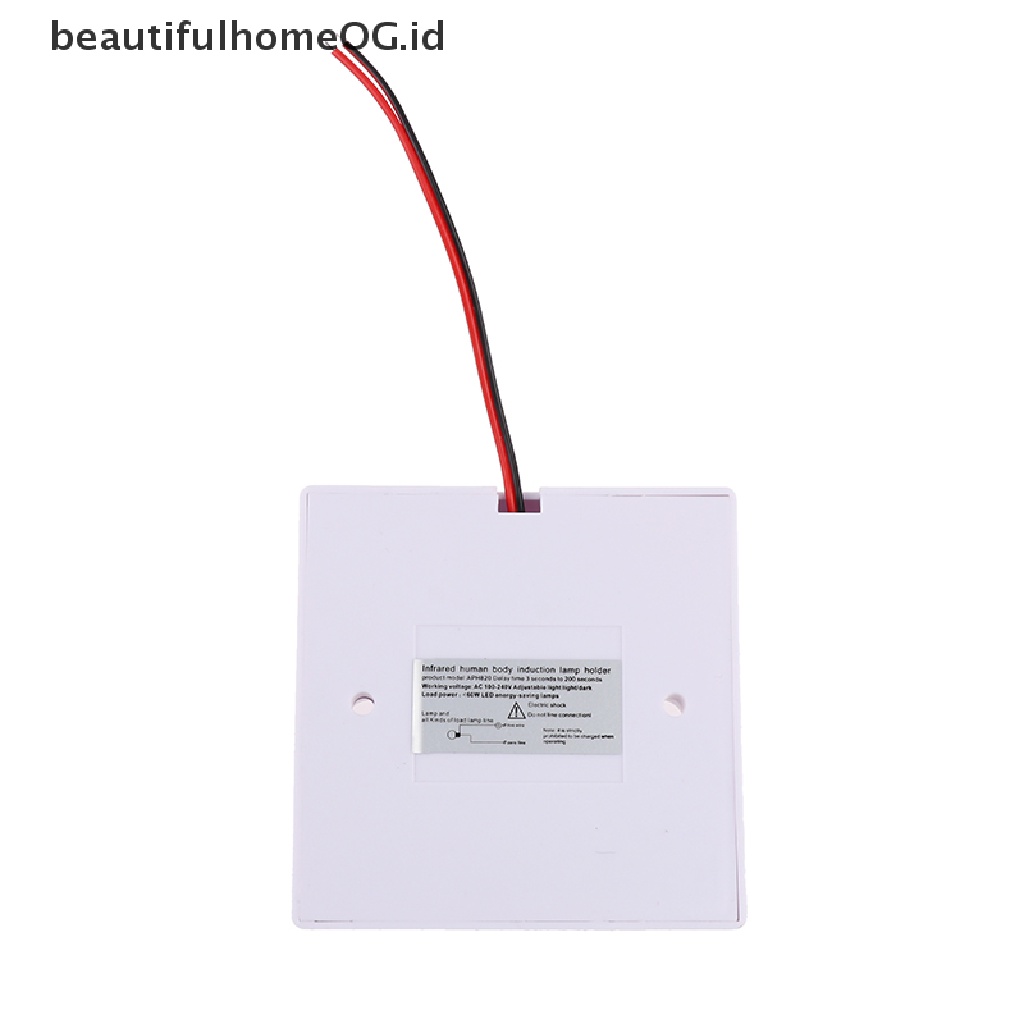

1. Wiring mode: Wiring according to the instructions on the back of the switch, overloading is strictly prohibited.
2. The installation must be performed by a professional electrician, please follow the wiring installation specifications; the distance between the switch and the lamp should be greater than 0.5 meters.
3. Do not operate with electricity, turn on the power after installation is completed.
4. If the load does not work, first check whether the circuit is correct and the load is normal, and then check whether the internal fuse of the switch is damaged.
