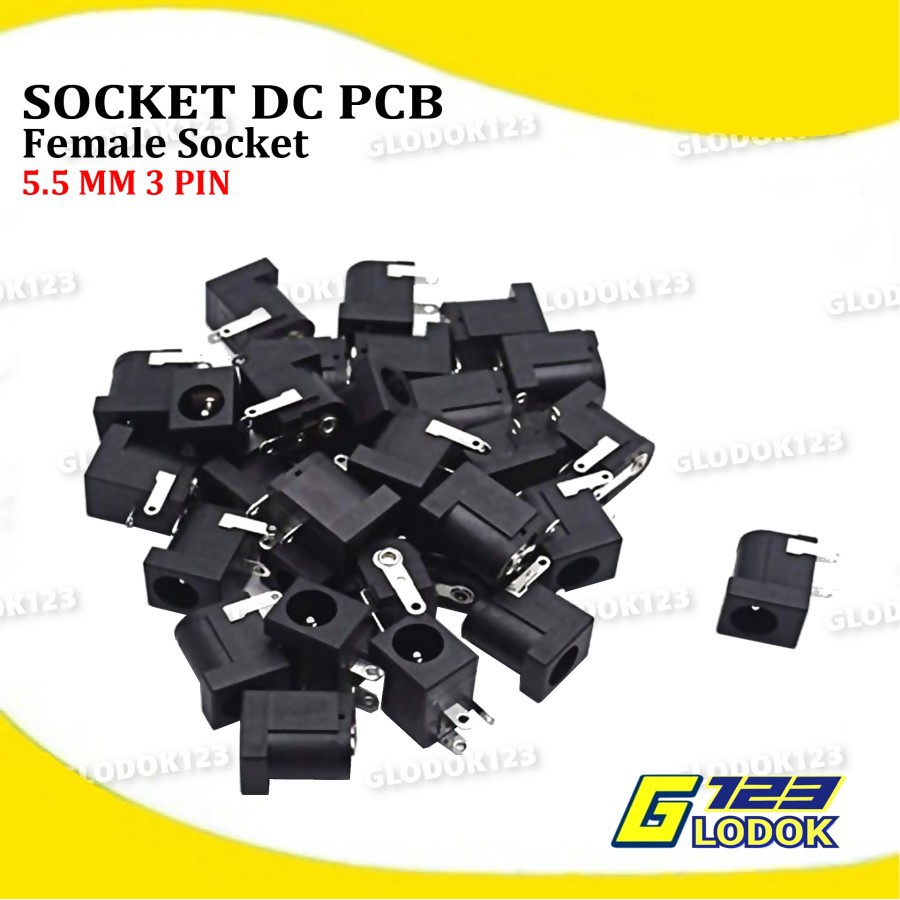

Socket DC In 5.5 mm 3 Pin Female PCB Connector PCB Mount DC Jack
Deskripsi singkat
Elektronik > Perangkat Audio & Speaker > Kabel & Konverter Audio & Video > Socket DC In 5.5 mm 3 Pin Female PCB Connector PCB Mount DC Jack
- Pengiriman Ekspres
- Barang yang diperiksa
- Bayar di tempat berlaku
- Kualitas, Prestise
- Pengembalian produk
- Dukung pembuatan faktur
Produk Terkait
Detail Socket DC In 5.5 mm 3 Pin Female PCB Connector PCB Mount DC Jack
Socket DC In 5.5 mm Female PCB* Features:
- 5.5x2.1mm DC Power Plug Jack
- Panel mounting
- Works with the male plug with inner diameter: 2.1mm, outer diameter: 5.5mm
** Spesifikasi :
- Female Mounting: - PCB Mount
- 3 PIN
- Type : Plug In Jack DC
- Diameter luar: 5.5mm
- Diameter as dalam : 2.1mm
- Material : Metal, Plastic
- Temperature :-40-55
- Rated Load : DC 30V 0.5A
- Contact Resistance :<=0.03
- Withstand Voltage :AC500V(50Hz)/min
- Insertion Force : 3-20N
- Insulation Resistance :>=100M DC250V
- Life: 5000 times
