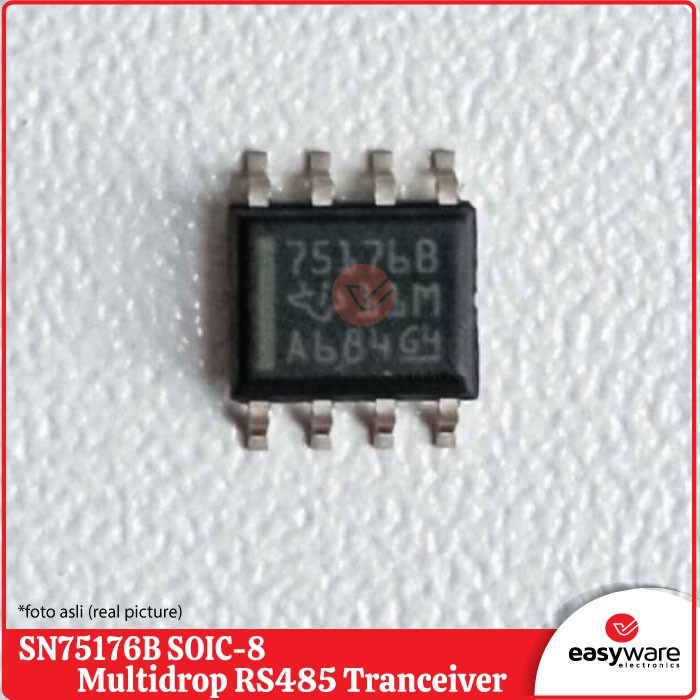

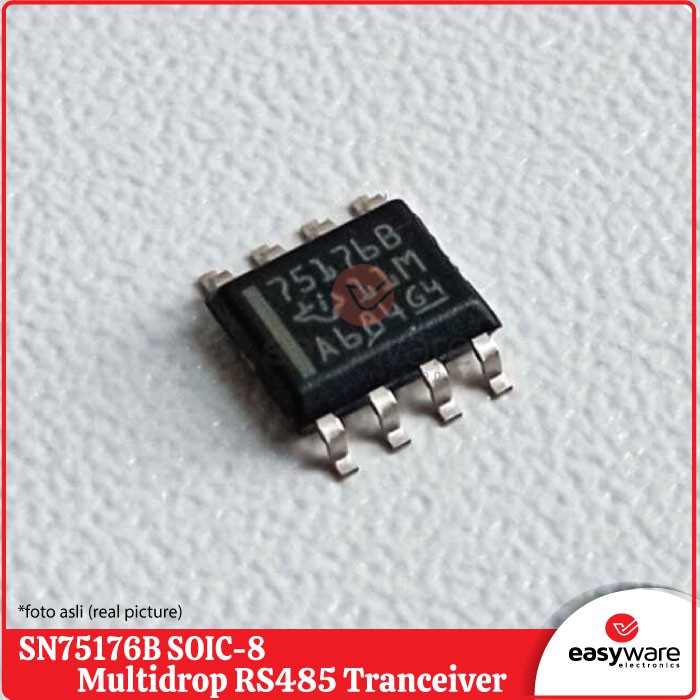

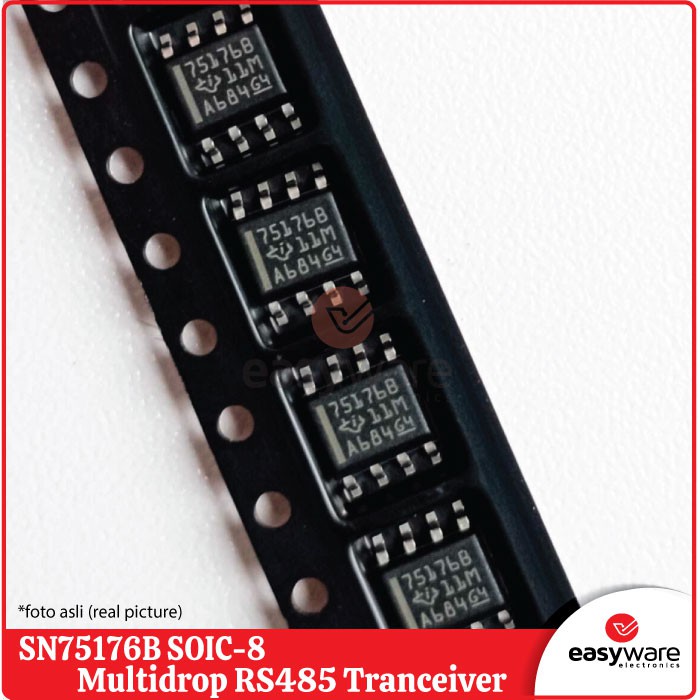

Detail SN75176BDR SN75176 SOIC-8 ORIGINAL IC Multidrop RS485 Tranceiver
Hi #RekanEasyWare ... EasyWare Part#: EP001643
SN75176BDR SN75176 SOIC-8 ORIGINAL IC Multidrop RS485 Tranceiver Description : The SN65176B and SN75176B differential bus transceivers are designed for bidirectional data communication on multipoint bus transmission lines. They are designed for balanced transmission lines and meet ANSI Standards TIA/EIA-422-B and TIA/ EIA-485-A and ITU Recommendations V.11 and X.27. The SN65176B and SN75176B devices combine a 3-state differential line driver and a differential input line receiver, both of which operate from a single 5- V power supply. The driver and receiver have activehigh and active-low enables, respectively, that can be connected together externally to function as a direction control. The driver differential outputs and the receiver differential inputs are connected internally to form differential input/output (I/O) bus ports that are designed to offer minimum loading to the bus when the driver is disabled or VCC = 0. These ports feature wide positive and negative common-mode voltage ranges, making the device suitable for partyline applications.
Kemasan: -1x SN75176BDR SN75176 SOIC-8 ORIGINAL IC Multidrop RS485 Tranceiver
