SN74HC138N Texas Instrument Dip-16 - Multiplexers Decoder

Detail SN74HC138N Texas Instrument Dip-16 - Multiplexers Decoder

Hi #RekanEasyWare ...
EasyWare Part#: EP001166

Catatan:
- Harga untuk 1pcs.

The SNx4HC138 devices are designed to be used
in high-performance memory-decoding or data-routing
applications requiring very short propagation delay
times. In high-performance memory systems, these
decoders can be used to minimize the effects of
system decoding. When employed with high-speed
memories using a fast enable circuit, the delay times
of these decoders and the enable time of the memory
are usually less than the typical access time of the
memory. This means that the effective system delay
introduced by the decoders is negligible.

Features :
• Targeted Specifically for High-Speed Memory
Decoders and Data-Transmission Systems
• Wide Operating Voltage Range (2 V to 6 V)
• Outputs Can Drive Up To 10 LSTTL Loads
• Low Power Consumption, 80-µA Maximum ICC
• Typical tpd = 15 ns
• ±4-mA Output Drive at 5 V
• Low Input Current of 1-µA Maximum
• Active Low Outputs ( Selected Output is Low)
• Incorporate Three Enable Inputs to Simplify
Cascading or Data Reception

Applications :
• LED Displays
• Servers
• White Goods
• Power Infrastructure
• Building Automation
• Factory Automation

Pacakage :

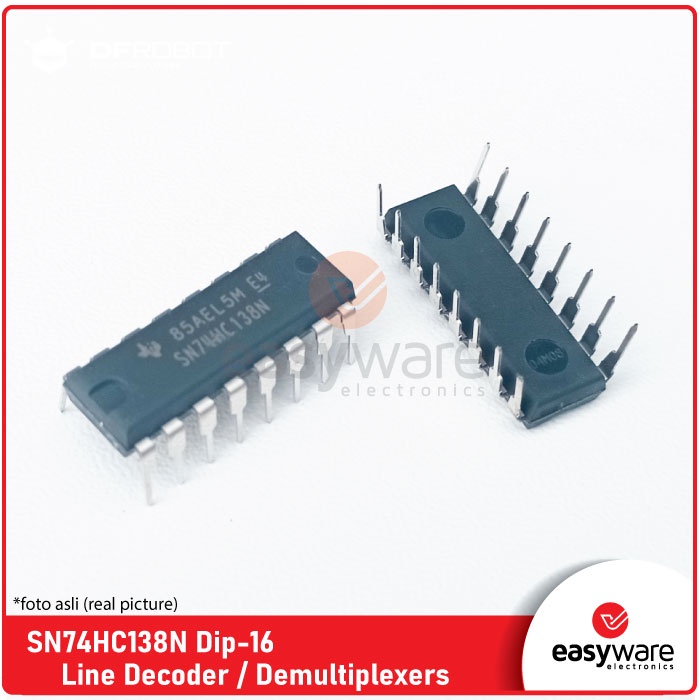

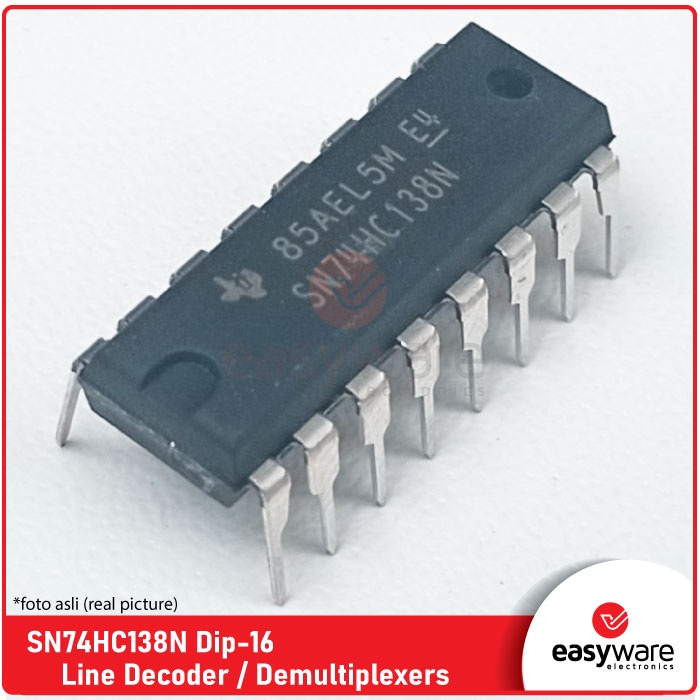

1x SN74HC138N Dip-16

Gambar produk
