Detail SMD NRF24L01 1100 meter long-distance NRF24L01+PA+LNA wireless module

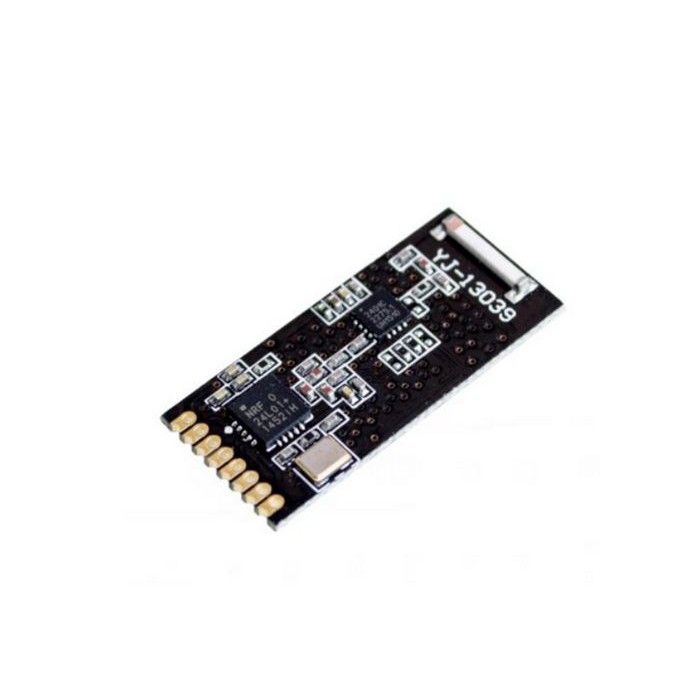

NRF24L01SMD + PA (SMD) wireless transmission module
A. Product Features:
1.2.4G open global ISM band, the maximum 20dBm transmit power license-exempt use
2. Support six channels of data reception, 2Mbit / s high-quality VoIP makes it possible to
3.2MBPS rate when receiving the peak current 25mA
4 in the 2Mbit / s rate 0dBm output of the peak current 45mA
5 400nA power down mode
6 32uA standby mode power consumption
7.130us fast switching and wake-up time
8 low voltage operation in 2.2Vto3.6V
9. 27mm * 12mm ultra-small size
10 pin standard SMD 1.27mm module
Applications: remote control, telemetry, wireless meter reading, access control systems, paging, industrial data acquisition systems, wireless tag
Identification, RF contactless smart cards, small wireless data terminals, fire safety systems, wireless remote control system
Systems, bio-signal acquisition, wireless 232, wireless 422/485 data communications.
