[SMC-9056] FR207 DIODE FAST RECOVERY RECTIFIER DIODE DO-15 AH58

Detail [SMC-9056] FR207 DIODE FAST RECOVERY RECTIFIER DIODE DO-15 AH58

HARAP BACA DESKRIPSI


barang yang kami jual sudah melalui QC pabrik untuk jaminan kualitas dan fungsi. tidak ada garansi untuk barang yang kami jual, kecuali kesalahan kirim barang atau kekurangan barang dapat diselesaikan melalui diskusi. membeli berarti setuju dengan ketentuan ini.

DESKRIPSI:

FR207 Diode Fast Recovery Rectifier Dioda DO-15 AH58
FR207 Diode Fast Recovery Rectifier Dioda DO-15 AH58

FEATURES
Low cost construction
Fast switching for high efficiency
Low reverse leakage
High forward surge current capability
High temperature soldering guaranteed:260 Celsius /10 seconds, 0.375" (9.5mm)lead length at 5 lbs (2.3kg) tension

MECHANICAL DATA
Case: transfer molded plastic
Epoxy: UL94V - 0 rate flame retardant
Polarity: Color band denotes cathode end
Lead: Plated axial lead, solderable per MIL - STD - 202E method 208C
Mounting position: Any
Weight: 0.014 ounce, 0.39grams

SPEC:
Max RMS Voltage: 700v
Max DC Blocking Voltage: 1000v
Maximum Average Forward Rectified Current:2.0Amps
Peak Forward Surge current: 70A / 8.3ms
Package: DO-15
TOtal Capacitance: 40pF

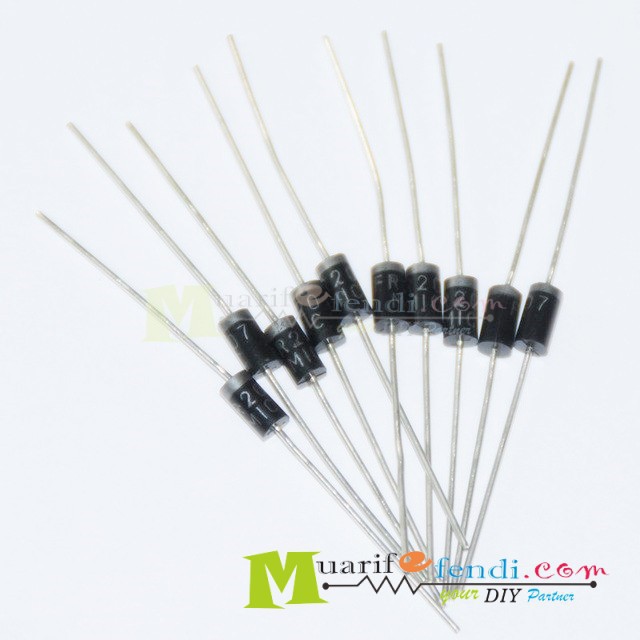

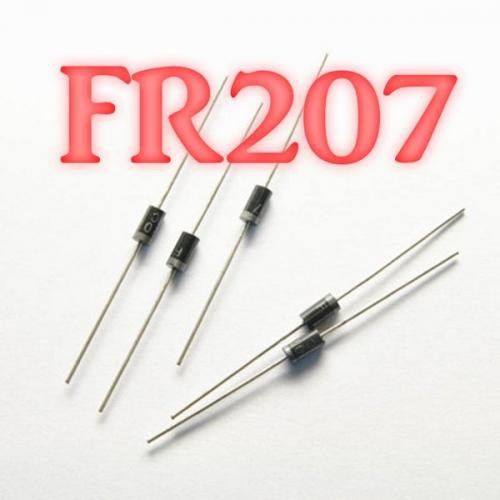

Gambar produk
