Slot modem pool 3G SIM5360E

Detail Slot modem pool 3G SIM5360E

Jual slot buat Modem Pool 3.5G port usb :
Modul original dari SIMCOM SIM5360E ;
Menggunakan mainboard pcb usb standart
Power supply internal
kaki slot 6 pin

Kelengkapan :
1 slot tanpa antena

Support :
Aplikasi sms :
Smscaster, gilisms, gammu, dll
Aplikasi server pulsa :
OTOMAX, IRS, Tiger Engine, Md Engine, dll.
Aplikasi activasi perdana : Optional

Garansi :
modem : 06 bulan.

Spec:
SIMCOM SIM5360E
- Dual-Band UMTS/HSPA+ 900/2100MHz
- Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz

Output power
- UMTS 850/1900: 0.25W
- UMTS 900/2100: 0.25W
- GSM850/GSM900: 2W
- DCS1800/PCS1900: 1W

Control Via AT Commands
Supply voltage range: 3.4V~ 4.2V
Operation temperature: -40 to +85

Specifications for GPS
CELL assistant Location (No GPS)
A-GPS: MS-Based, MS-Assisted
Stand-alone GPS
QUALCOMM XTRA GPS mode
GLonass

Specifications for Data transfer
HSPA+
- Max. 14.4Mbps(DL), Max. 5.76Mbps(UL)
WCDMA
- Max. 384Kbps(DL), Max. 384Kbps(UL)
EDGE Class:
- Max. 236.8Kbps(DL), Max. 236.8Kbps(UL)
GPRS
- Max. 85.6Kbps(DL), Max. 85.6Kbps(UL)

Specifications for SMS
Point to point MO and MT
Text and PDU mode

Other features
USB Driver for Microsoft Windows 2000/XP/Vista/7/8
USB Driver for Windows CE/Mobile
USB Driver for Linux/Android
Firmware update via USB
Embedded AT
LUA Script Language
MMS
TCP/IP
FTP/FTPS/HTTP/HTTPS/SMTP/POP3/DNS
FOTA

Interfaces
USB2.0
UART
SIM card
SPI
I2C
Keypad(5*5)
Constant current sink
GPIO
RTC
ADC
SDIO
PCM *

Certifications
SIM5360E
- CE
- GCF
- ROHS

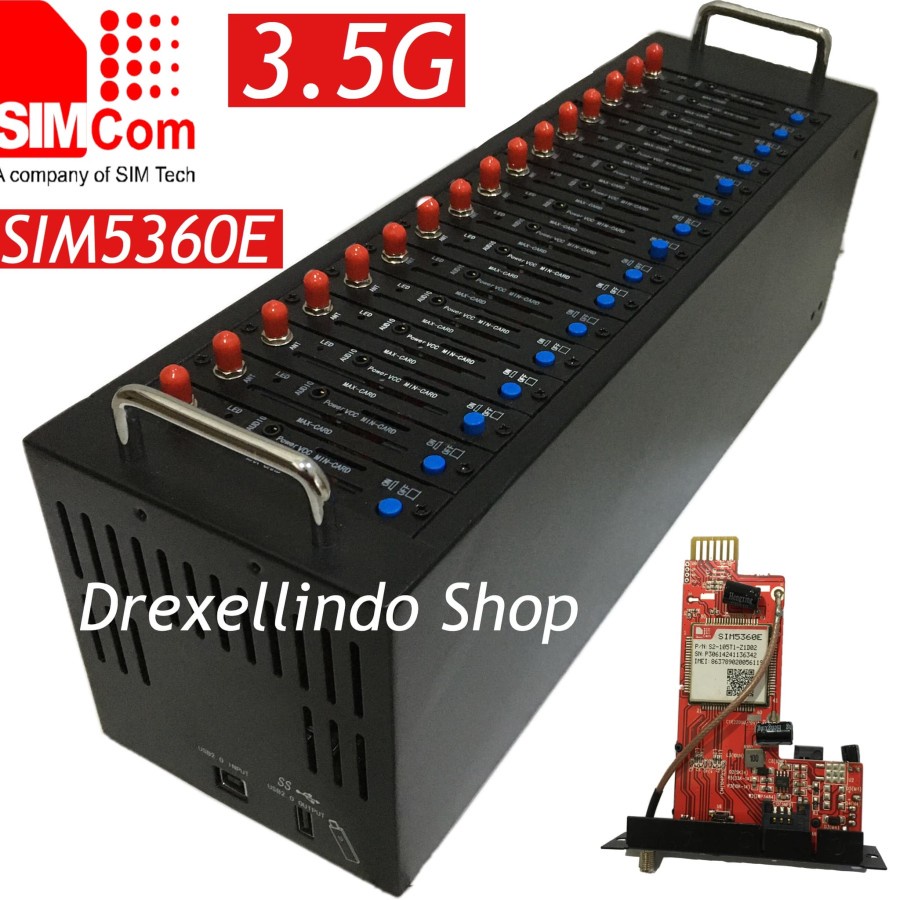

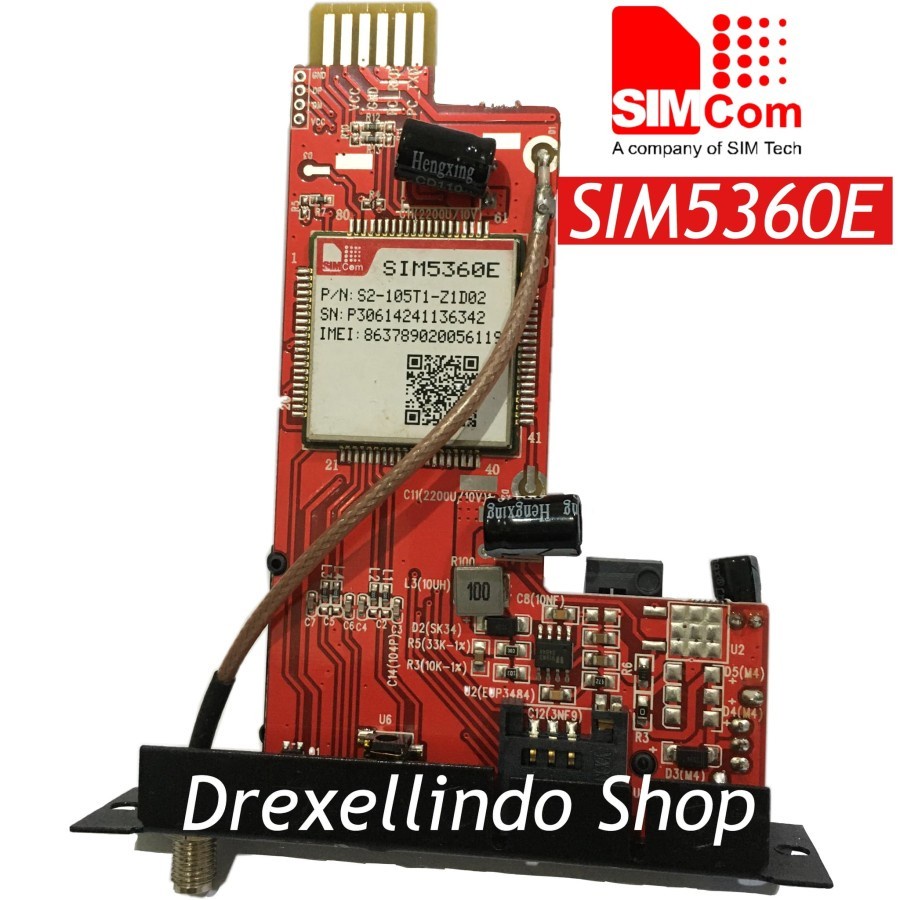

Gambar produk
