SIM900 Quad Band GSM GPRS Shield Module Arduino Uno Mega + Antenna

Detail SIM900 Quad Band GSM GPRS Shield Module Arduino Uno Mega + Antenna

SIM900 Quad Band GSM GPRS Shield Module Arduino Uno Mega + Antenna
Feature:

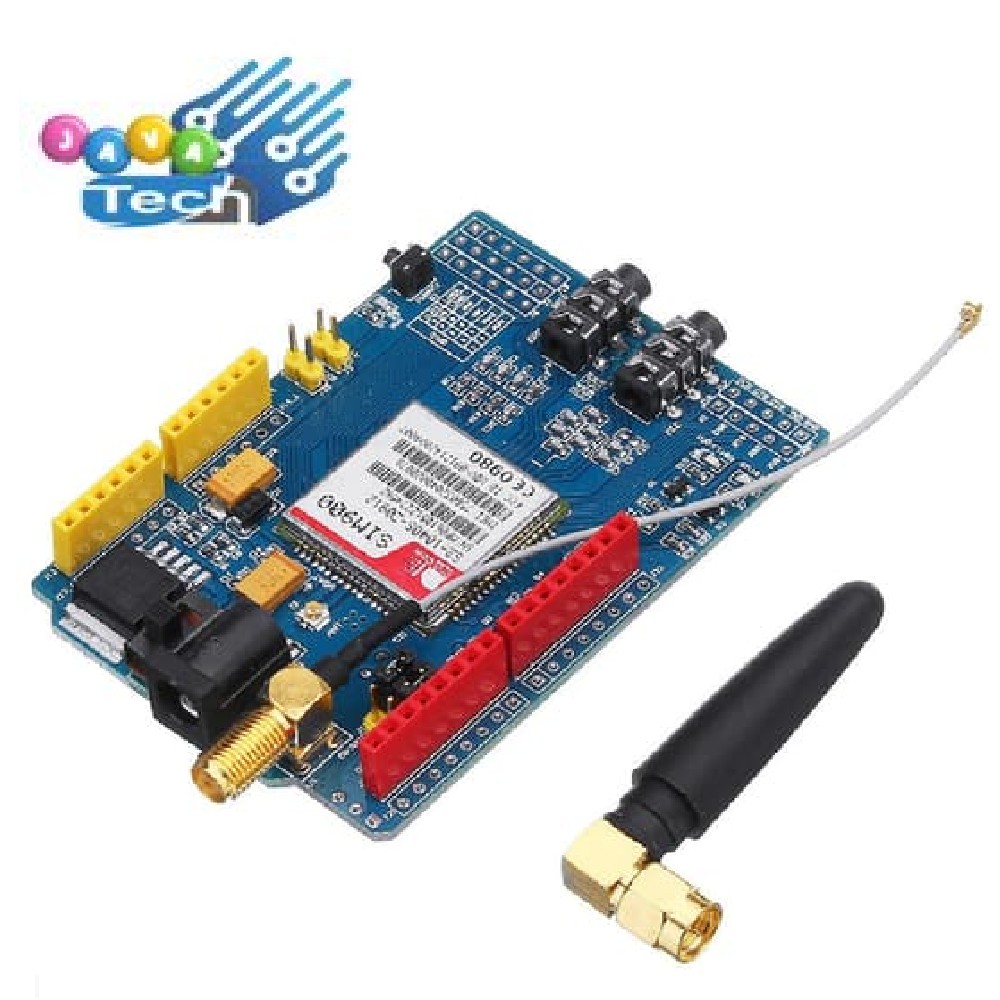

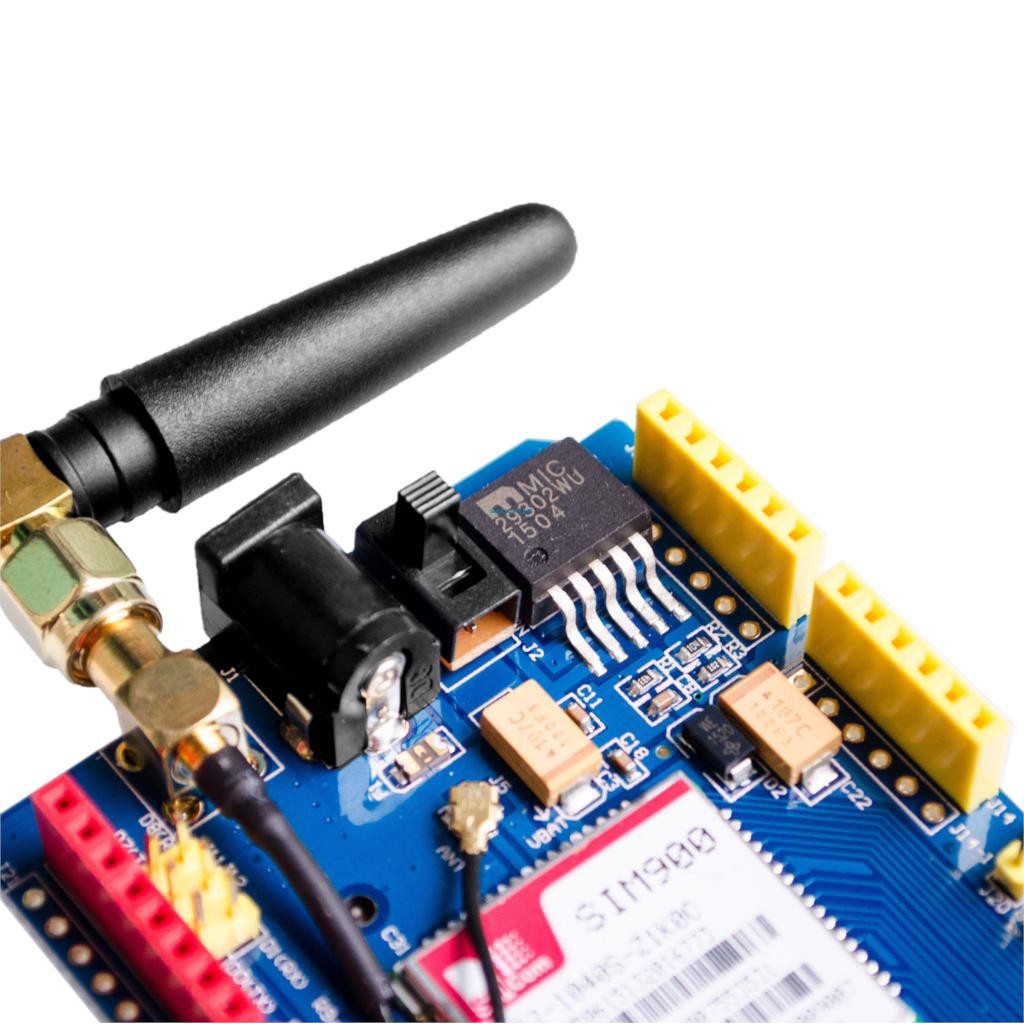

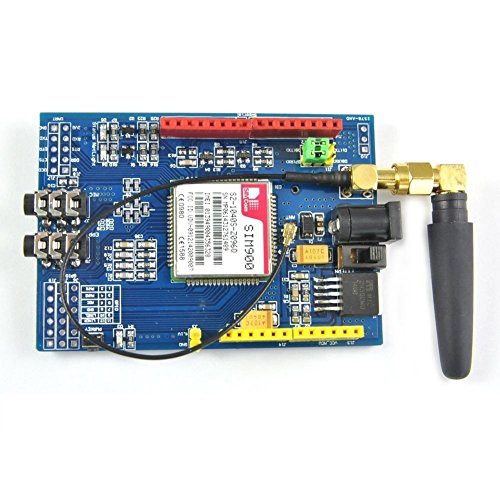

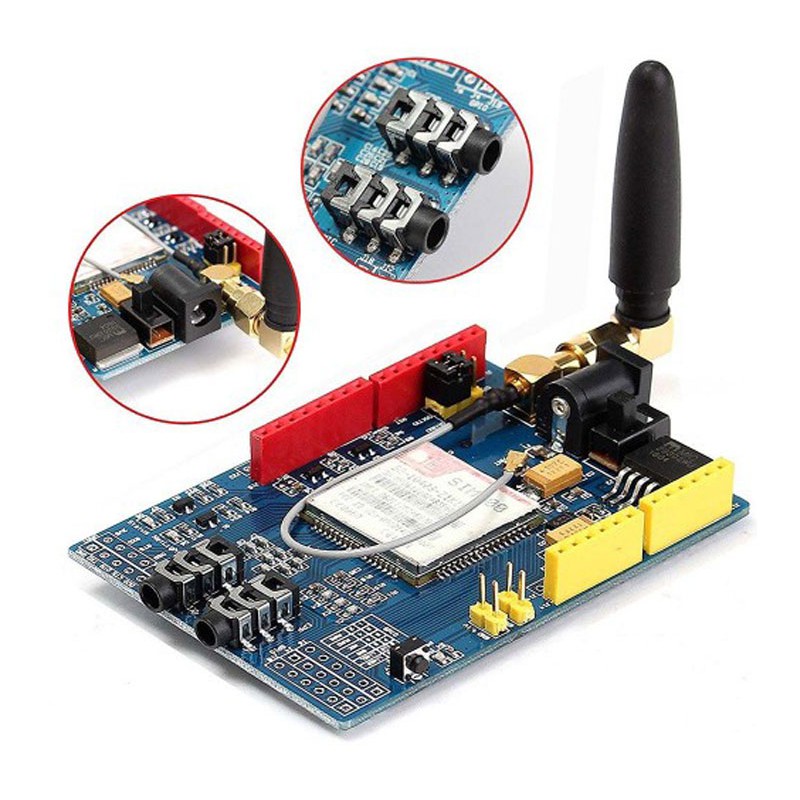

The GPRS Shield is based on SIM900 module from SIMCOM and compatible with Arduino and its clones.
The GPRS Shield provides you a way to communicate using the GSM cell phone network.
The shield allows you to achieve SMS, MMS, GPRS and Audio via UART by sending AT commands (GSM and SIMCOM enhanced AT Commands).
The shield also has the 12 GPIOs, 2 PWMs and an ADC of the SIM900 module(They are all 2V8 logic) present onboard.

Specifications:
- Quad-Band MHz - would work on GSM networks in all countries across the world.
- GPRS multi-slot class 10/8
- GPRS mobile station class B
- Compliant to GSM phase 2/2+
- Class 4 (2 W @ MHz)
- Class 1 (1 W @ MHz)
- Control via AT commands - Standard Commands: GSM Enhanced Commands: SIMCOM AT Commands.
- Short Message Service - so that you can send small amounts of data over the network (ASCII or raw hexadecimal).
- Embedded TCP/UDP stack - allows you to upload data to a web server.
- RTC supported.
- Selectable serial port.
- Speaker and Headphone jacks
- Low power consumption - 1.5mA(sleep mode)
- Industrial Temperature Range - -40C to +85 C

Application:
M2M (Machine 2 Machine) Applications.
Remote control of appliances.
Remote Weather station or a Wireless Sensor Network.
Vehicle Tracking System with a GPS module.

Note:
The SIM900 Board Input is 5-26V 2A,We Recommended current is more than 9V 2A
Ensure your SIM card is not locked
GPRS Shield Communication baud rate is 19200 BPS 8-N-1
